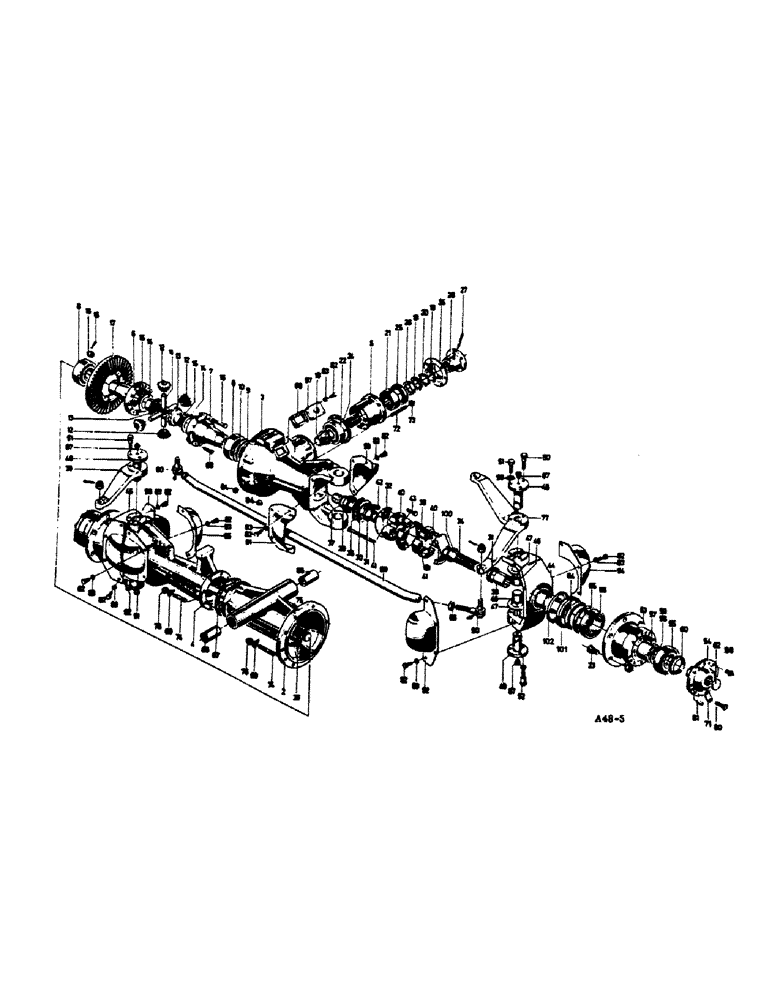

Запчасти Case IH 444 (7-2) - FRONT AXLE (06) - POWER TRAIN

1

3115591R91

AXLE, cpte., front w/STUDS comprising:

1шт.

2

3115644R1

CASING

central

1шт.

3

3115645R1

CAP

w/CASTING

1шт.

4

3115646R1

CAP

w/FLANGE

1шт.

5

3115647R1

SUPPORT

pinion

1шт.

6

3115648R91

CASE ASSY.

CASE, differential assy

1шт.

7

CASE, differential (Order 3115648R91)

1шт.

8

3115650R91

BEARING

differential case support

2шт.

9

3115651R1

SHIM

adjustment (0.5)

4шт.

10

3115652R1

SHIM

adjustment (0.2)

2шт.

11

3115653R91

SPIDER ASSY.

SPIDER, differential planetary gear

1шт.

12

3115654R1

GEAR

differential planetary

4шт.

13

3115655R1

WHEEL

differential crown

2шт.

14

3115656R1

SHIM

adjustment

2шт.

15

3115657R1

PIN

stop

2шт.

16

3115658R1

BOLT

differential ring gear fixing

10шт.

17

3115659R91

GEAR, ring for differential (GLEASON) and PINION ASSY

1шт.

18

PINION, for differential (Order 3115659R91)

1шт.

19

3115661R1

NUT

differential pinion fixing ring

2шт.

20

3115662R1

WASHER

ring nut stop

1шт.

21

3115663R91

BEARING

taper roller

1шт.

22

3115664R91

BEARING

taper roller

1шт.

23

3115665R1

STUD

wheel fixing

12шт.

24

3115666R1

SHIM

(0.5)

1шт.

24

3115771R1

SHIM

(0.2)

1шт.

25

3115667R1

SEAL

oil for pinion support

1шт.

26

3115668R1

CENTERING RING

PIECE, distance

1шт.

27

3115669R1

PIN

stop (elastic)

1шт.

28

3115670R1

FLANGE

transmission

1шт.

29

3115671R91

BEARING

axle shaft support

2шт.

30

3115672R1

FLANGE

stop

2шт.

31

3115673R1

SEAL

oil for axle shaft

4шт.

32

3115674R1

SHAFT

axle (medium)

1шт.

33

3115675R1

SHAFT

axle (long)

1шт.

34

3115676R1

SHAFT

axle (short)

2шт.

35

3115677R1

CASING

pinion support

1шт.

36

3115678R1

GASKET

axle shaft flange

2шт.

37

3115679R1

STOP

axle shaft bearing

2шт.

38

3115680R1

BEARING

short axle shaft

2шт.

39

3115681R1

PLATE

homokinetic joint

2шт.

40

3115682R91

U-JOINT SPIDER

SPIDER, universal joint

4шт.

41

3115683R1

BOLT

spider - plate fixing

8шт.

42

3115684R1

SCREW

flange fixing

8шт.

43

3115685R1

SCREW

spider axle shaft fixing

16шт.

44

3115686R1

PIVOT

L.H.

1шт.

45

3115687R1

PIVOT

R.H.

1шт.

46

3115688R1

BUSHING

BUSH, steering pivot

4шт.

47

3115689R1

WASHER

adjustment

4шт.

48

3115690R1

PIVOT

upper steering

2шт.

49

3115691R1

PIVOT

lower steering

3шт.

50

3115692R1

SCREW

(long) upper pivot fixing

2шт.

51

3115693R1

SCREW

(short) upper pivot fixing

4шт.

52

3115694R1

SCREW

lower pivot fixing

6шт.

53

3115695R1

HUB

wheel

2шт.

54

3115696R1

FLANGE

drive

2шт.

55

3115697R1

BEARING, hub taper roller

2шт.

56

3115698R91

TAPERED BEARING

BEARING, hub taper roller

2шт.

57

3115699R1

CENTERING RING

PIECE, distance - hub bearing

2шт.

58

3115700R1

SHIM

hub bearing (0.5)

2шт.

59

3115701R1

SHIM

hub bearing (0.2)

2шт.

60

3115702R1

NUT

hub fixing ring

2шт.

61

- NOT USED -

1шт.

62

3115703R1

DISC

(Convex) for driving flange

2шт.

63

- NOT USED -

1шт.

64

3115704R1

RING

seal for oil in hub

2шт.

65

3115705R1

CENTERING RING

PIECE, distance, hub oil seal ring

2шт.

66

3115706R1

NUT

locking - joint pivot

2шт.

67

3115707R1

GASKET

flanged cap

1шт.

68

3115708R1

GASKET

breather case

1шт.

69

3115709R1

PLATE

stop nut

20шт.

70

- NOT USED -

1шт.

71

3115710R1

PLATE

stop - drive flange screw

8шт.

72

3115805R1

SCREW

support pinion fixing

6шт.

73

- NOT APPLICABLE -

1шт.

74

3115713R1

STUD

fixing - central casing

17шт.

75

3115714R1

STUD

short - central casing fixing

1шт.

76

3115715R1

NUT

casing fixing

18шт.

77

3115716R1

LEVER

steering double control

1шт.

78

3115717R1

LEVER

single

1шт.

79

- NOT USED -

1шт.

80

3115718R1

SCREW

fixing - drive flange

16шт.

81

3115719R1

PIN

gauge-drive flange

10шт.

82

3115720R1

SCREW

fixing - breather cover and caps

32шт.

83

3115721R1

WASHER

flexible - notched

32шт.

84

3115722R1

PLUG

oil level and discharge

2шт.

85

- NOT USED -

1шт.

86

3115723R1

BUSHING

BUSH, drive connection sleeve

2шт.

87

3115724R1

LUBE NIPPLE

LUBRICATOR

5шт.

88

3115725R1

SCREW

half case jointing

2шт.

89

3115726R1

BAR

coupling - steering lever

1шт.

90

3115727R1

PIVOT

coupling

2шт.

91

3115728R1

CASING

front end dust cap

2шт.

92

3115729R1

PIVOT

front end dust cap

2шт.

93

3115730R1

CASING

rear end dust cap

1шт.

94

3115731R1

PIVOT

rear end dust cap

1шт.

95

3115732R1

CASING

rear end dust cap

1шт.

96

3115733R1

PIVOT

rear end dust cap

1шт.

97

3115734R1

COVER

bleeder

1шт.

98

3115735R1

LUBE NIPPLE

LUBRICATOR, wheel hub

2шт.

99

3115736R1

WASHER

flexible - notched

12шт.

100

3115737R1

RETAINER

CIRCLIP, seeger type

2шт.

101

3115738R1

SLEEVE

protection - hub

2шт.

102

3115739R1

SLEEVE

protection - pivot

2шт.

ref

Part No.

English

1шт.

3115804R1

PLATE

differential ring gear fixing bolt

4шт.

ref

Part No.

English

1шт.

3115523R1

NUT

front wheel

12шт.
