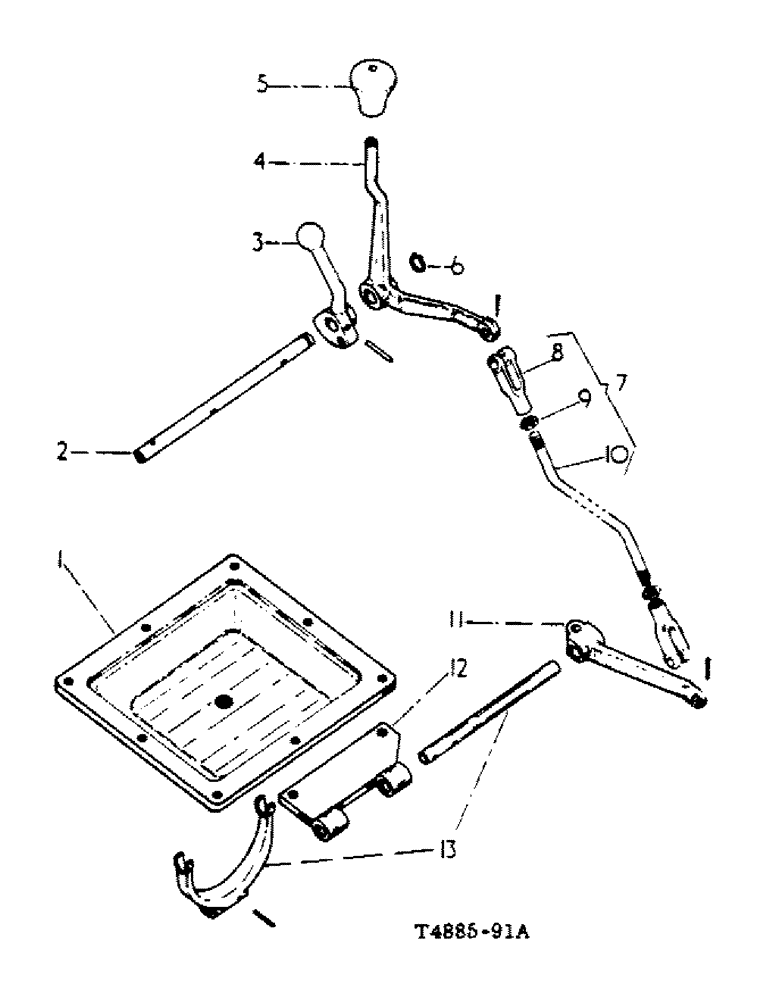

Запчасти Case IH 444 (6-55) - MOWER DRIVE CONTROLS, MOWER DRIVE ATTACHMENTS (06) - POWER TRAIN

1

3064430R1

COVER

P.T.O. bottom

1шт.

2

3049108R2

SHAFT

high low range shifter

1шт.

3

3049109R1

HANDLE

high low range shifter

1шт.

142358

PIN

groove type, 1/4" x 1-1/2"

1шт.

4

3048748R4

LEVER

forward and reverse

1шт.

5

53717DA

BUTTON

BALL, gear shifter lever

1шт.

6

3049105R1

RETAINER

CIRCLIP, Anderton

1шт.

7

3114105R91

ROD

control cpte., comprising:

1шт.

8

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, adj. rod end

2шт.

9

114494

NUT,Jam, 3/8"-24, G5

2шт.

10

3114108R1

ROD, control

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

NLS

NO LONGER SERVICED

PIN, 3/8" x 1-3/32" rod end

2шт.

11

3071367R1

LEVER

operating fork

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex. 5/16"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

3064426R91

BRACKET, operating, fork cpte.

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

13

3065499R91

FORK

w/PIN 17175R1 operating and shaft assy.

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.
