Запчасти Case IH 444 (6-52) - HEAVY DUTY SINGLE CLUTCH ATTACHMENT (06) - POWER TRAIN

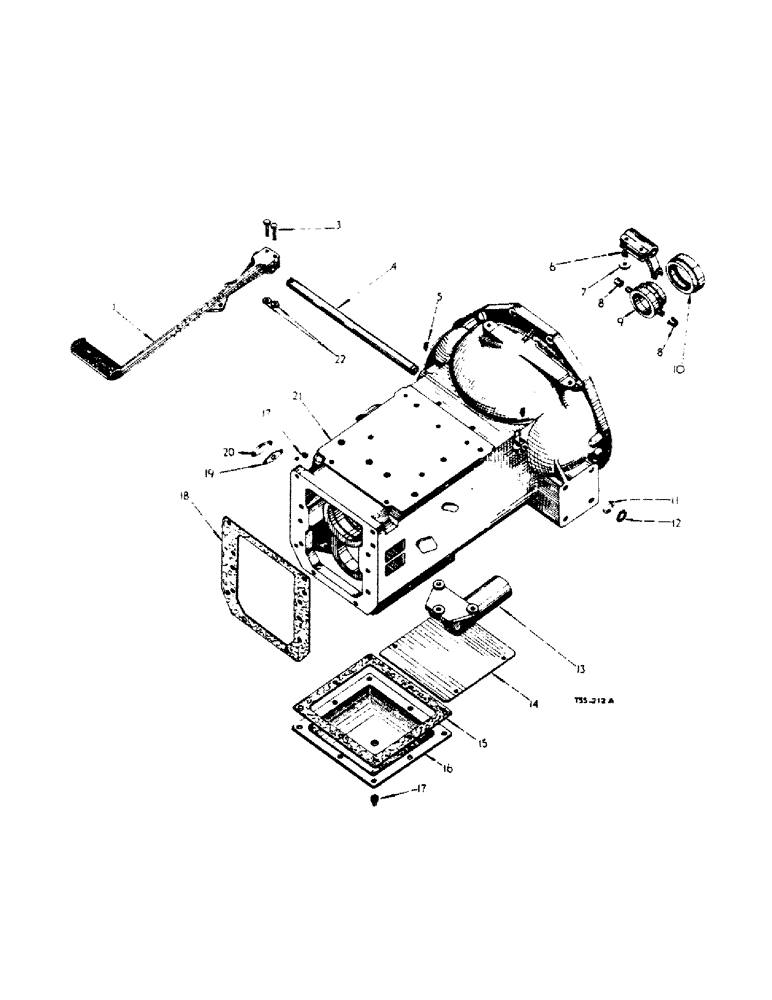

Схема запчастей Case IH 444 - (6-52) - HEAVY DUTY SINGLE CLUTCH ATTACHMENT (06) - POWER TRAIN
17
13
10
7
11
16
27
3
1
14
19
21
6
4
5
8
18
15
8
9
20

Артикул

Название

Примечание

Количество

ATTACHMENT, heavy duty single clutch (Factory application) CLUTCH HOUSING (See detail list) 11" HEAVY DUTY SINGLE CLUTCH and FLYWHEEL (See detail list)

1шт.

ref

Part No.

English

1шт.

1

751050R2

PEDAL

clutch

1шт.

3047838R1

BOLT

clutch pedal

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

NOT APPLICABLE

1шт.

3

181379

BOLT,Hex, 3/8" - 24 x 2", Gr 5

3/8" UNF x 2" hex.

2шт.

4

3071270R1

SHAFT

clutch release

1шт.

5

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR, 1/8" PT

2шт.

6

3044005R2

FORK

clutch release

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

clutch release fork

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

3047229R1

WASHER

KEY, clutch release shaft

1шт.

8

3045088R1

INSERT

clutch release fork bush

2шт.

9

3070641R1

BUSHING

SLEEVE, clutch release

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

10

3071300R1

BEARING, clutch release Opt.

1шт.

10

3070634R91

BALL BEARING

BEARING, clutch release Opt.

1шт.

10

3070635R91

BALL BEARING

BEARING, clutch release Opt.

1шт.

11

108635

PIN,1/8" x 1 1/8"

Split (Cotter), , Up to 434/3837 1/8" x 1 1/8"

1шт.

3109744R1

RETAINER

CIRCLIP, 13/16" ext. 434/3838 up

1шт.

12

49405H

WASHER

27/32" x 1-1/4" x 16 ga flat

1шт.

13

3045087R1

CARRIER

clutch release sleeve

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16" x 1-1/4" hex. hd.

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

14

751125R1

COVER

clutch housing hand hole

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, hex. hd. 3/8" x 11/16"

1шт.

15

751126R1

GASKET

P.T.O. gearbox cover plate

1шт.

16

751127R1

PLATE

P.T.O. gearbox cover

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

17

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2" sq. hd. pipe Opt.

1шт.

17

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe - Optional Sq Hd, 1/2"-14 NPTF

1шт.

18

751124R3

GASKET

clutch housing to trans. case

1шт.

19

3047592R1

GASKET

clutch housing blanking plate

1шт.

20

3047593R1

PLATE

blanking, clutch housing

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

3114281R91

HOUSING

w/two LUBRICATOR 109462, three BOLT 271550, PLUG 103868 and three WASHER 103325 cpte., clutch

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2" x 1-1/2" hex. hd. Special

8шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2"x 1-3/4" hex. hd.

2шт.

20549R1

BOLT,Hex, 1/2" - 13 x 1 7/8", Gr 8

1/2" x 1-7/8" hex. hd. Special

7шт.

751443R1

PIN

DOWEL, clutch housing

2шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

17шт.

22

751872R1

NUT

3/8" UNF hex.

2шт.

271550

BOLT, 5/8" x 5/8" hex. hd. (Used w/Clutch Housing)

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/clutch housing 5/8"

3шт.

3068215R1

SEAL

clutch housing hand hole sealing

1шт.

3112575R2

LEVER

clutch pedal return

1шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

16558R1

WASHER

17/64 plain

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

3112574R1

BRACKET

clutch pedal return spring

1шт.

ref

Part No.

English

1шт.

3068320R91

ATTACHMENT, single clutch P.T.O. (573 r.p.m.) TRANSMISSION GEARS AND SHAFTS(See detail list) P.T.O. GEARS AND SHAFTS(See detail list)

1шт.

Выбрано товаров: 57
