(6-50) - FULL FORWARD AND REVERSE ATTACHMENT, GEAR SHIFTER MECHANISM

Запчасти Case IH 444 (6-50) - FULL FORWARD AND REVERSE ATTACHMENT, GEAR SHIFTER MECHANISM (06) - POWER TRAIN

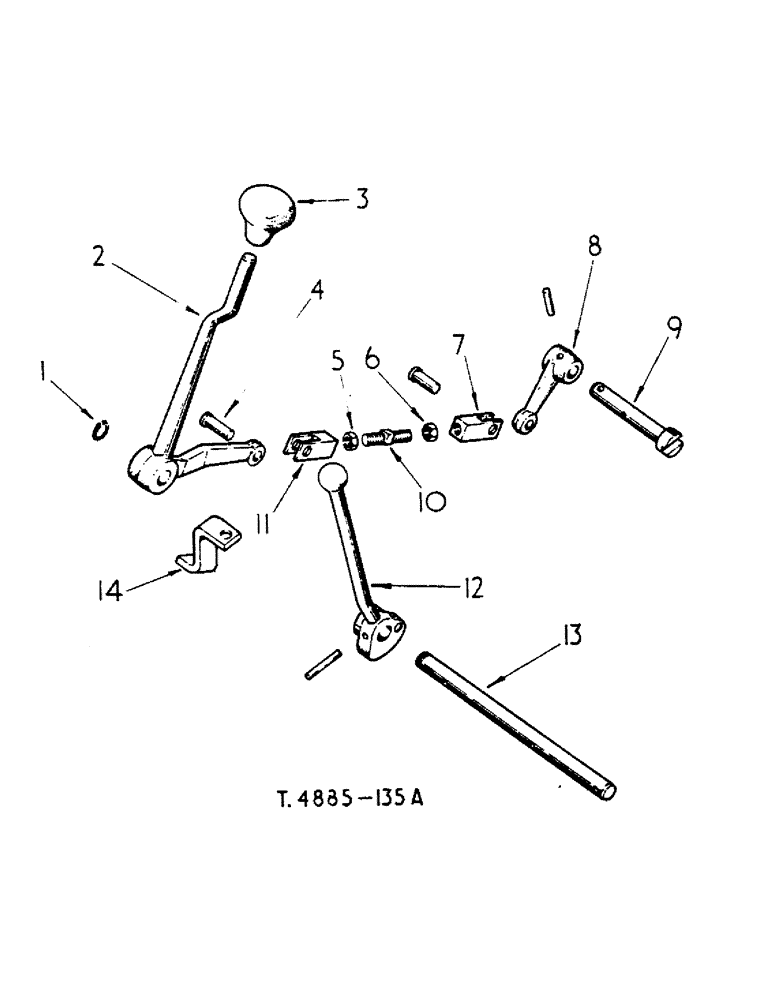

Схема запчастей Case IH 444 - (6-50) - FULL FORWARD AND REVERSE ATTACHMENT, GEAR SHIFTER MECHANISM (06) - POWER TRAIN
1
3
13
5
12
9
10
2
6
8
14
11
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3049105R1

RETAINER

CIRCLIP, Anderton

1шт.

2

3072099R1

LEVER

forward and reverse

1шт.

3

3109443R1

BALL

gear shifter lever

1шт.

4

114785

PIN, 3/8" rod end

2шт.

95-11041

WASHER,3/8"

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

5

114503

JAM NUT,Jam, 3/8"-16, G5

jam, 3/8" - 24 UNF

1шт.

6

116428

NUT,Jam, 3/8"-24, G5, LH

jam, 3/8"

1шт.

7

3072098R1

CLEVIS

ROD, clevis

1шт.

8

3072095R1

LINK

forward and reverse shaft

1шт.

9

3048727R2

SHAFT

connecting

1шт.

20895R1

PIN,1/4" x 1", Coiled

1шт.

10

3072096R1

ADJUSTMENT ROD

ROD, adjustable connecting

1шт.

11

3072097R1

CLEVIS

ROD, clevis

1шт.

12

3049109R1

HANDLE

high/low range shifter

1шт.

142358

PIN

groove, 1/4" x 1-1/2" type 1.

1шт.

13

3049108R2

SHAFT

high/low range shifter

1шт.

14

3072100R1

BRACKET

shifter lever

1шт.
