Запчасти Case IH 444 (1-05) - CYLINDER HEAD AND EXHAUST MANIFOLD (02) - ENGINE

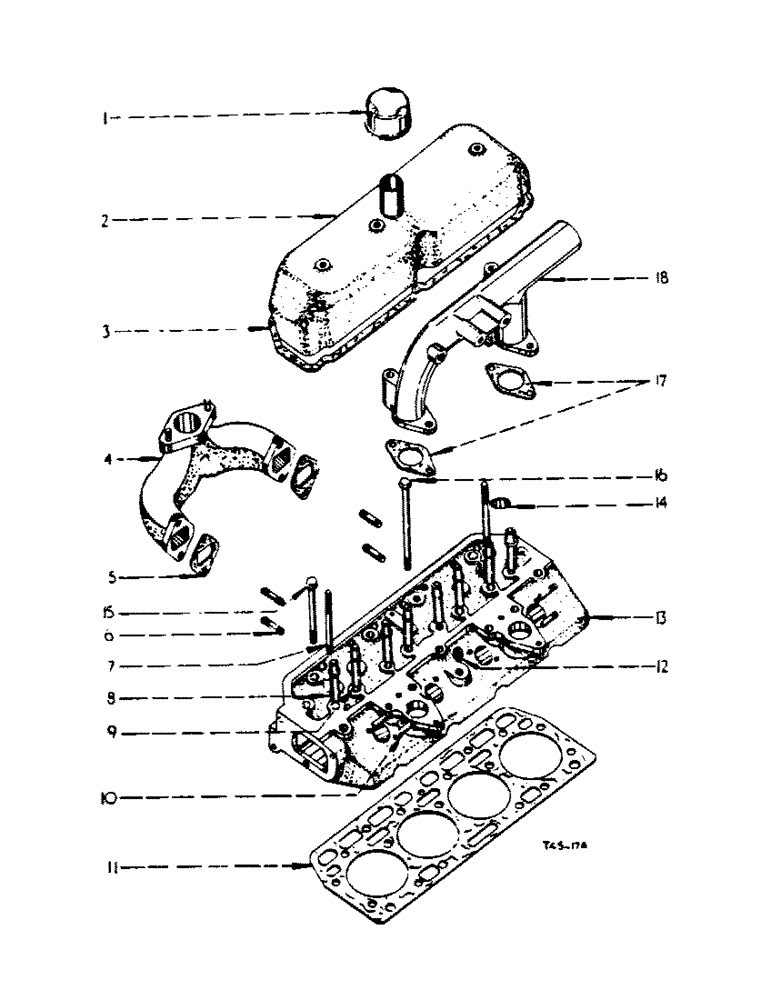

Схема запчастей Case IH 444 - (1-05) - CYLINDER HEAD AND EXHAUST MANIFOLD (02) - ENGINE
18
15
14
16
13
12
9
8
17
1
2
11
5
6
3
7
4
10

Артикул

Название

Примечание

Количество

1

3049701R91

FILTER, ELEMENT

BREATHER, cyl. hd. (see detail list)

1шт.

2

3112012R11

COVER

cpte., valve housing

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

*

102635

NUT,3/8"-16, G5

2шт.

*

95-11041

WASHER,3/8"

(13/32 x 13/16 x 16 ga) 3/8"

1шт.

3

3069767R1

GASKET

valve cover

1шт.

4

3042719R11

MANIFOLD

exhaust, Includes: stud

1шт.

*

443090

STUD

drive No. 6. x 3/8"

2шт.

5

704165R2

MANIFOLD GASKET

exhaust manifold

2шт.

6

703874R1

STUD

exhaust manifold, Includes: nut

4шт.

*

20229D1

NUT, exhaust manifold stud

4шт.

7

703875R1

STUD

rocker shaft end bracket

2шт.

8

3044493R1

VALVE GUIDE

GUIDE, valve stem exhaust

4шт.

9

3044492R1

VALVE GUIDE

GUIDE, valve stem intake

4шт.

10

703876R2

STUD

injection nozzle holder

8шт.

11

703883R6

GASKET

GASKET, cyl hd, Includes: grommet

1шт.

*

3119914R1

GROMMET

cyl hd (As required)

1шт.

12

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, sq. hd. cast iron pipe 1/2" Opt.

1шт.

12

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Cast Iron Pipe - Optional Sq Hd, 1/2"-14 NPTF

1шт.

13

3044489R91

CYLINDER HEAD

HEAD, w/VALVES assy., cyl., comprising:

1шт.

*

CUP 3044176R1

8шт.

*

CUP 3044491R1

8шт.

*

HEAD 3044490R91

1шт.

*

LOCK 704443R1

16шт.

*

SPRING 3044239R1

8шт.

*

SPRING 3044240R1

8шт.

*

VALVE 304382R1

4шт.

*

VALVE 3040361R1

4шт.

13

3044490R91

HEAD (CYLINDER)

HEAD. less/VALVES assy., cyl. comprising:, comprising:

1шт.

*

GUIDE 3044492R1

4шт.

*

GUIDE 3044493R1

4шт.

*

PLUG 172558

2шт.

*

STUD 703874R1

4шт.

*

STUD 703875R1

2шт.

*

STUD 703876R2

8шт.

14

172558

PLUG,Exp, 1 1/4"

expansion

2шт.

15

708331R1

BOLT

BOLT, cyl. hd. short

15шт.

16

708332R1

BOLT,Cyl Hd

cyl-hd. long

1шт.

*

63116D

WASHER

cyl. hd. bolt

16шт.

*

3065070R1

ELECTRICAL WIRE

CABLE, earth to No. 1. glow plug

1шт.

*

708127R2

ELECTRICAL WIRE

CABLE, No. 1. to No. 1. glow plug

1шт.

*

708128R2

ELECTRICAL WIRE

CABLE, No. 2. to No. 3. glow plug

1шт.

*

708127R2

ELECTRICAL WIRE

CABLE, No. 3. to No. 4. glow plug

1шт.

*

710348R1

GLOW PLUG

PLUG, glow, Includes: insulator

4шт.

*

710474R1

ISOLATOR

INSULATOR, glow plug

1шт.

*

3047624R1

NUT

terminal (As required)

1шт.

Выбрано товаров: 46
