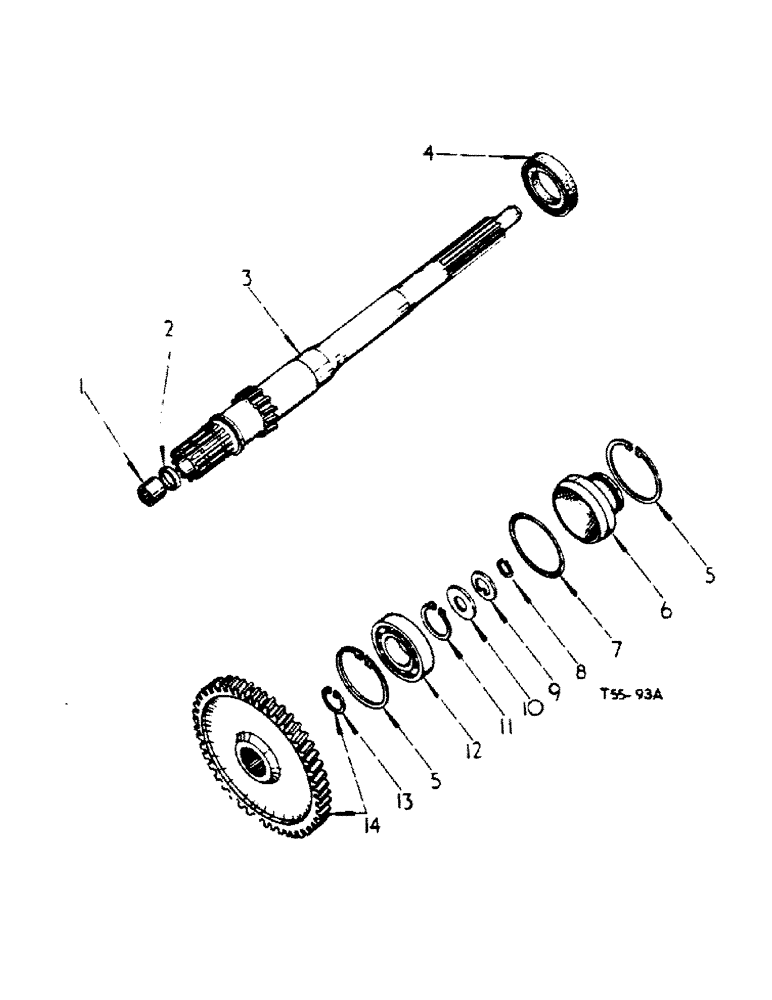

Запчасти Case IH 444 (6-47) - FULL FORWARD AND REVERSE ATTACHMENT, P.T.O. DRIVING SHAFT AND GEARS, HEAVY DUTY SINGLE CLUTCH (06) - POWER TRAIN

1

3062462R91

BEARING

"BEARING, I.N.A.,"

1шт.

2

3062461R1

SPACER

"SPACER, pilot bearing distance piece"

1шт.

3

3073617R2

SHAFT

"SHAFT, trans and P.T.O. driving" ON ORDER FOR R1 ORDER SHAFT 3073617R2 W/RING 3119806R1

1шт.

4

3066617R91

SEAL

"OIL SEAL, trans and pto driving shaft Opt."

1шт.

4

751080R91

SEAL

"OIL SEAL, trans and pto driving shaft Opt."

1шт.

4

3049150R92

SEAL

"OIL SEAL, trans and pto driving shaft Opt."

1шт.

5

751149R1

RING

CIRCLIP, p.t.o. front bearing retainer

1шт.

(85mm internal)

2шт.

6

751148R3

CAP

p.t.o. front bearing

1шт.

7

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

3-3/8" x 3-3/4" x 3/16" p.t.o. front bearing cap

1шт.

8

516010R1

O-RING

CIRCLIP, 3/4" ext.

1шт.

9

NOT USED

1шт.

10

751142R1

WASHER

P.T.O. shaft, front, retaining

1шт.

11

751146R1

RING

CIRCLIP, P.T.O. front bearing, retaining (45 mm int)

1шт.

12

703644R91

BALL BEARING

BEARING, P.T.O. shaft, front Opt.

1шт.

12

42454H

BALL BEARING

BEARING, P.T.O. shaft, front Opt.

1шт.

12

708170R91

BEARING, BALL

BEARING, P.T.O. shaft, front Opt.

1шт.

12

3114943R91

BEARING

P.T.O. shaft, front Opt.

1шт.

13

751145R1

RING, SNAP

CIRCLIP, P.T.O. driven gear

1шт.

14

3044007R91

GEAR, w/CIRCLIP 751145R1 cpte., driven P.T.O. (55 teeth)

1шт.
