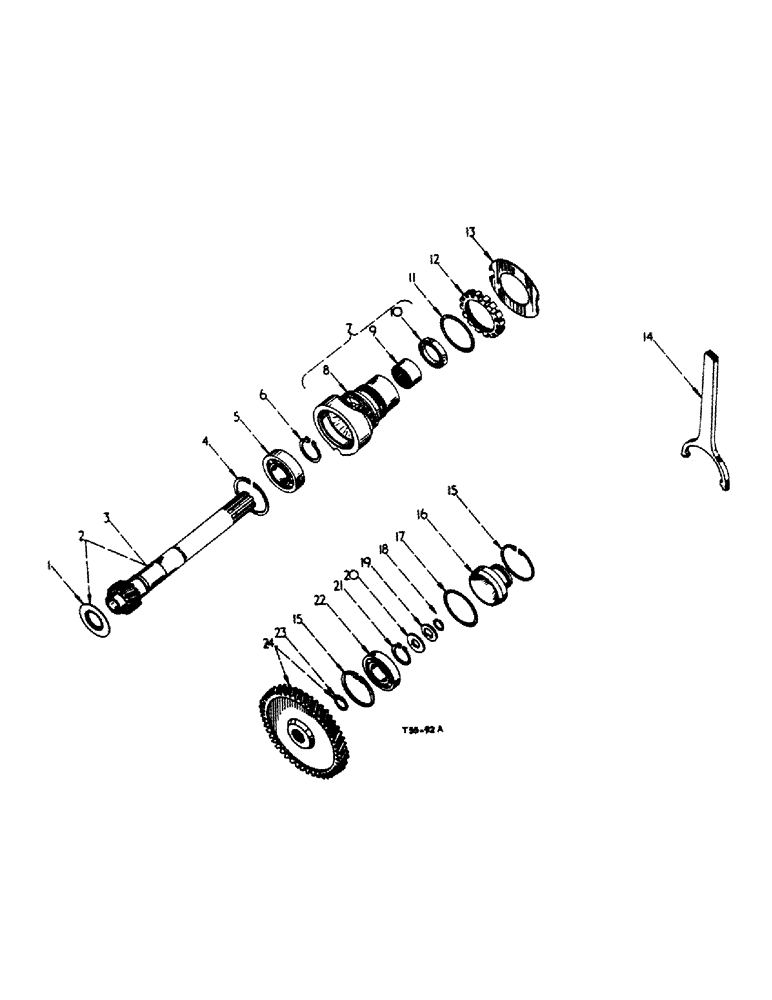

Запчасти Case IH 444 (6-46) - FULL FORWARD AND REVERSE ATTACHMENT, P.T.O. DRIVING SHAFT AND GEARS, 573 R.P.M. (06) - POWER TRAIN

1

3048766R1

SHIELD

"SHIELD, P.T.O. driving shaft rear oil seal"

1шт.

2

3048699R11

"SHAFT, w/SHIELD 3048766R1 and SHAFT" " 3048699R1 cpte., P.T.O. driving"

1шт.

3

3048699R1

"SHAFT, and GEAR, P.T.O. driving"

1шт.

4

751297R1

RETAINER

"CIRCLIP, ball bearing, retaining"

1шт.

5

704234R91

BALL BEARING

"BEARING, ball, P.T.O. driving shaft Opt."

1шт.

5

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

"BEARING, ball, P.T.O. driving shaft Opt."

1шт.

5

3048701R91

BALL BEARING

"BEARING, ball, P.T.O. driving shaft Opt."

1шт.

6

751638R1

RING, SNAP

"CIRCLIP, ball bearing, retaining"

1шт.

7

3048693R11

"CAGE, w/CAGE 3048693R1, BEARING" 392680R1 and OIL SEAL 3048704R91 " cpte., P.T.O. driving shaft bearing"

1шт.

8

3048693R1

"CAGE, P.T.O. driving shaft bearing"

1шт.

9

392680R1

"BEARING, needle rollet, P.T.O. driving" shaft front

1шт.

10

3048704R91

OIL RESERVOIR

"OIL SEAL, P.T.O. driving shaft"

1шт.

11

352216R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

"O RING, P.T.O. driving shaft bearing cage"

1шт.

12

3048697R1

NUT, P.T.O. driving shaft bearing cage, lock

1шт.

13

3048696R1

WASHER, P.T.O. driving shaft bearing cage lock

1шт.

14

3048695R1

SPANNER, P.T.O. driving shaft bearing cage locknut (As required)

1шт.

15

751149R1

RING

CIRCLIP, driven gear bearing retainer

2шт.

16

751148R3

CAP

P.T.O. front bearing

1шт.

17

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

O RING, P.T.O. front bearing cap, 3-3/8" x 3-3/4" x 3/16";

1шт.

18

516010R1

O-RING

CIRCLIP, 3/4" ext.

1шт.

19

NOT USED

1шт.

20

751142R1

WASHER

front P.T.O. retaining

1шт.

21

751146R1

RING

CIRCLIP, driven gear bearing retainer

1шт.

22

703644R91

BALL BEARING

BEARING, ball, P.T.O. driven gear Opt.

1шт.

22

42454H

BALL BEARING

BEARING, ball, P.T.O. driven gear Opt.

1шт.

22

708170R91

BEARING, BALL

P.T.O. driven gear Opt.

1шт.

22

3114943R91

BEARING

"BEARING, ball, P.T.O. driven gear Opt."

1шт.

23

751145R1

RING, SNAP

"CIRCLIP, P.T.O. driven gear"

1шт.

24

3044007R11

GEAR

"GEAR, w/CIRCLIP 751145R1 cpte.," P.T.O. driven (55 teeth)

1шт.
