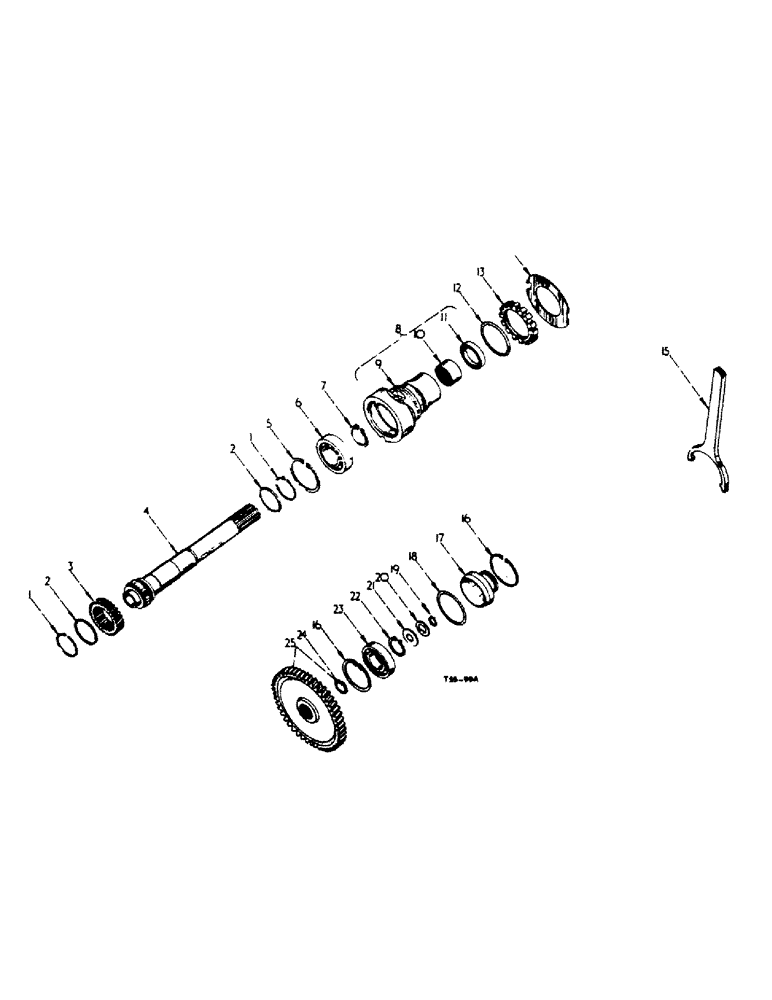

Запчасти Case IH 444 (6-45) - FULL FORWARD AND REVERSE ATTACHMENT, P.T.O. DRIVING SHAFT AND GEARS, 1,050 R.P.M. (06) - POWER TRAIN

1

3047842R1

RETAINER

CIRCLIP, retaining

2шт.

2

3048826R1

WASHER, retaining

2шт.

3

3048825R1

GEAR, P.T.O. driving (23 teeth)

1шт.

4

3048824R1

SHAFT, P.T.O. driving

1шт.

5

751297R1

RETAINER

CIRCLIP, ball bearing, retaining

1шт.

6

704234R91

BALL BEARING

BEARING, ball, P.T.O. driving shaft Optional

1шт.

6

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

P.T.O. driving shaft Optional

1шт.

6

3048701R91

BALL BEARING

BEARING, ball, P.T.O. driving shaft Optional

1шт.

7

751638R1

RING, SNAP

CIRCLIP, retaining, ball bearing

1шт.

8

3048693R11

CAGE, w/CAGE 3048693R1, BEARING 392680R1 and OIL SEAL 3048704R91 cpte., P.T.O. driving shaft bearing

1шт.

9

3048693R1

CAGE, P.T.O. driving shaft bearing

1шт.

10

392680R1

BEARING, P.T.O. driving shaft, front, needle roller

1шт.

11

3048704R91

OIL RESERVOIR

OIL SEAL, P.T.O. driving shaft

1шт.

3066621R91

SEAL

OIL SEAL, P.T.O. driving shaft

1шт.

12

352216R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

O RING, P.T.O. driving shaft bearing cage

1шт.

13

3048697R1

NUT, lock, P.T.O. driving shaft bearing cage

1шт.

14

3048696R1

WASHER, lock, P.T.O. driving shaft bearing cage.

1шт.

15

3048695R1

SPANNER, P.T.O. driving shaft bearing cage locknut (As required)

1шт.

16

751149R1

RING

CIRCLIP, driven gear bearing retainer

2шт.

17

751148R3

CAP

P.T.O. front bearing

1шт.

18

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

O RING P.T.O. front bearing cap, 3-3/8" x 3-3/4" x 3/16"

1шт.

19

516010R1

O-RING

"CIRCLIP, 3/4" ext."

1шт.

20

NOT USED

1шт.

21

751142R1

WASHER

"WASHER, front P.T.O. retaining"

1шт.

22

751146R1

RING

"CIRCLIP, driven gear bearing retainer"

1шт.

23

703644R91

BALL BEARING

"BEARING, ball, P.T.O. driven gear Opt."

1шт.

23

42454H

BALL BEARING

"BEARING, ball, P.T.O. driven gear Opt."

1шт.

23

708170R91

BEARING, BALL

"BEARING, ball, P.T.O. driven gear Opt."

1шт.

23

3114943R91

BEARING

"BEARING, ball, P.T.O. driven gear Opt."

1шт.

24

751145R1

RING, SNAP

"CIRCLIP, P.T.O. driven gear"

1шт.

25

3045892R11

"GEAR, w/CIRCLIP 751145R1 cpte., P.T.O." driven (46 teeth)

1шт.
