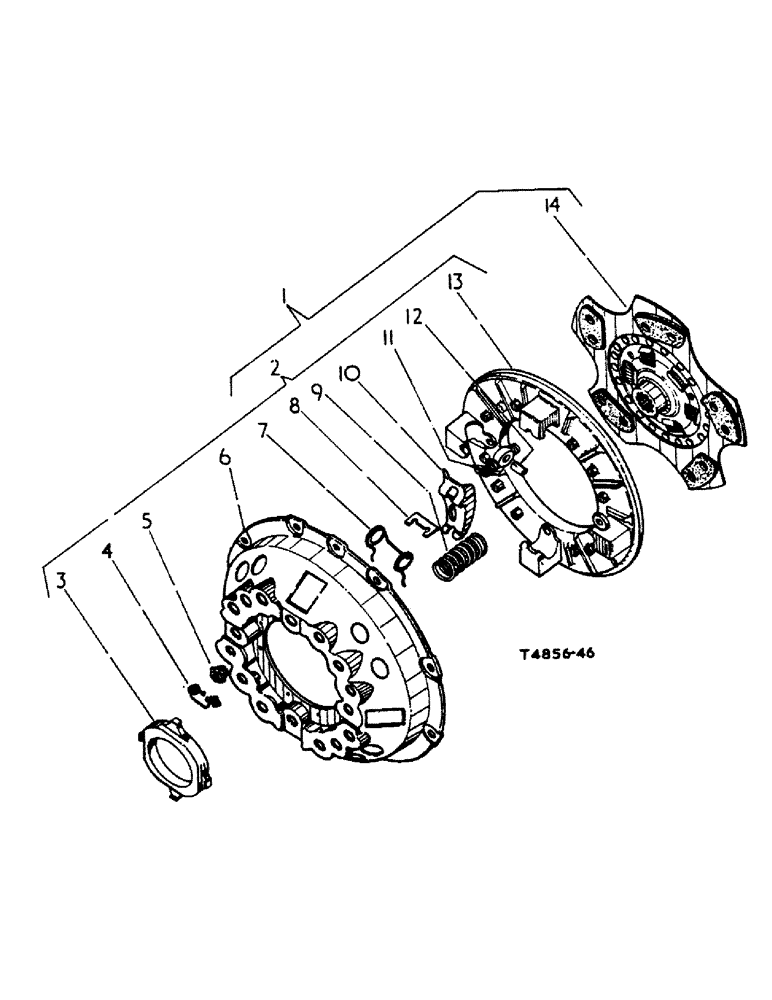

Запчасти Case IH 444 (6-44) - 11" HVY DUTY SINGLE CLUTCH & FLYWHEEL, FULL FWD & REV ATTACHMENT, HVY DUTY SINGLE CLUTCH ATTACHMENT (06) - POWER TRAIN

1

CLUTCH, 11" heavy duty

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

2

3067300R91

COVER

assy., comprising:

1шт.

3

3048593R1

CLUTCH DISC

PLATE, release lever

1шт.

4

705530R1

SPRING

RETAINER, release lever plate

4шт.

5

3040044R2

NUT

eye bolt

1шт.

6

3067976R91

COVER

assy.

1шт.

3067973R1

SPACER

PLUG, distance

8шт.

7

3040040R1

SPRING

anti-rattle

4шт.

8

700915R1

STRUT

4шт.

9

3048592R1

SPRING

thrust

12шт.

10

3048594R1

LEVER

release

4шт.

11

3070881R91

BOLT (SPREADER)

BOLT, assy., eye and nut

4шт.

3070227R1

BOLT

EYEBOLT

4шт.

12

705534R1

AXLE PIN

PIN, release lever

4шт.

13

3048535R1

PLATE

pressure

1шт.

14

3074827R91

CLUTCH & DISC ASSY

PLATE, assy., driven (1-1/8" spline)

1шт.

3046388R11

FLYWHEEL

w/GEAR 704436R1 and two PIN 141223 cpte., (Diesel)

1шт.

709515R1

BOLT,Hex, 7/16" - 20 x 1 1/4"

flywheel

4шт.

709516R1

RETAINER

LOCK, flywheel bolt

2шт.

704436R1

SPROCKET

GEAR, flywheel, ring (Diesel)

1шт.

141223

DOWEL,5/16" x 1"

PIN, dowel 5/16" x 1"

2шт.

3067975R91

PACKAGE, driven plate facing, service (As required)

1шт.
