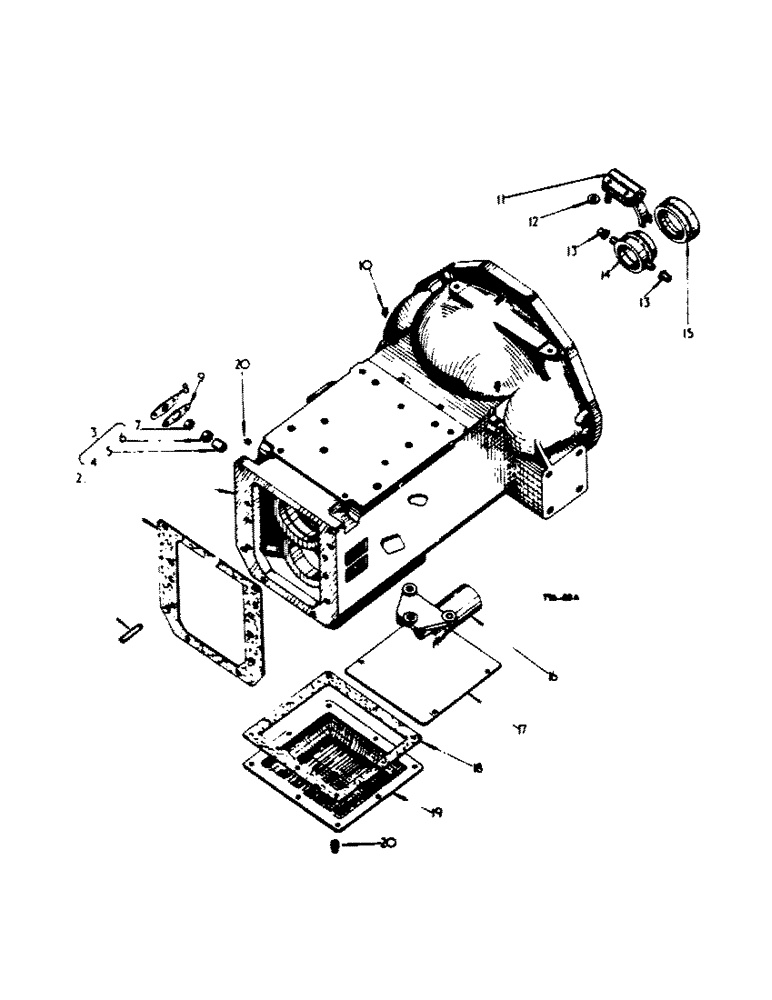

Запчасти Case IH 444 (6-42) - FULL FORWARD AND REVERSE ATTACHMENT, CLUTCH HOUSING (06) - POWER TRAIN

1

751443R1

PIN

DOWEL, clutch housing

2шт.

2

751124R3

GASKET

clutch housing to trans. case

1шт.

3

3048686R93

HOUSING

cpte., clutch comprising:

1шт.

4

3047584R21

HOUSING

w/PLUG 103868 and two LUBRICATOR 109462 cpte., clutch

1шт.

5

3048691R1

BUSHING

BUSH, clutch housing, connecting shaft.

1шт.

6

3048690R91

SEAL

OIL SEAL, connecting shaft

1шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2" x 1-3/4" hex. hd.

2шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2" x 1-1/2" hex. hd.

8шт.

20549R1

BOLT,Hex, 1/2" - 13 x 1 7/8", Gr 8

1/2" x 1-7/8" hex. hd.

7шт.

3069627R1

BOLT, 5/8" x 5/8" hex. hd.

3шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

17шт.

7

3048729R1

WASHER

connecting shaft

1шт.

443003

PIN

3/32" x 3/4" type 3 groove

1шт.

8

3048728R1

PLATE ASSY.

PLATE, connecting shaft, retaining

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

3048736R1

SHIM

connecting shaft retaining plate (33 SWG) (As required)

1шт.

9

3048737R1

SHIM

connecting shaft retaining plate (22 BG) (As required)

1шт.

3109610R1

SHIM

connecting shaft (22 BG)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

(Attaching hardware for Trans. Case Cover front) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

10

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR, 1/8" PT - 90degree

2шт.

11

3044005R2

FORK

clutch release

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

clutch release fork

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

704644R1

KEY, release shaft

1шт.

13

3045088R1

INSERT

clutch release fork bush

2шт.

14

3070647R1

SLEEVE

clutch release Applicable for Dual Clutch

1шт.

14

3070641R1

BUSHING

SLEEVE, clutch release Applicable for Heavy Duty Single Clutch

1шт.

15

3071300R91

BALL BEARING

BEARING, clutch release Optional

1шт.

15

3070634R91

BALL BEARING

BEARING, clutch release Optional

1шт.

15

3070635R91

BALL BEARING

BEARING, clutch release Optional

1шт.

16

3045087R1

CARRIER

clutch release sleeve Applicable for Heavy Duty Single Clutch

1шт.

16

3048692R1

CARRIER, clutch release sleeve Applicable for Dual Clutch

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16" x 1/4" hex. hd.

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

17

751125R1

COVER

clutch housing hand hole

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, 3/8" x 11/16" hex. hd.

4шт.

18

751126R1

GASKET

P.T.O. gearbox cover plate

1шт.

19

751127R1

PLATE

P.T.O. gearbox cover

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

20

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2" sq. hd. pipe Opt.

1шт.

20

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe - Optional Sq Hd, 1/2"-14 NPTF

1шт.

3049380R93

FORK

cpte., gear shifter, 1st speed

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Clutch sleeve) 1/8"-27 x .66 lg

1шт.

3068215R1

SEAL

clutch housing hand hole sealing

1шт.

3112574R1

BRACKET

clutch pedal return spring

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex 5/16

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3112575R2

LEVER

clutch pedal return

1шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

16558R1

WASHER

.266 x .625 x .036 plain

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
