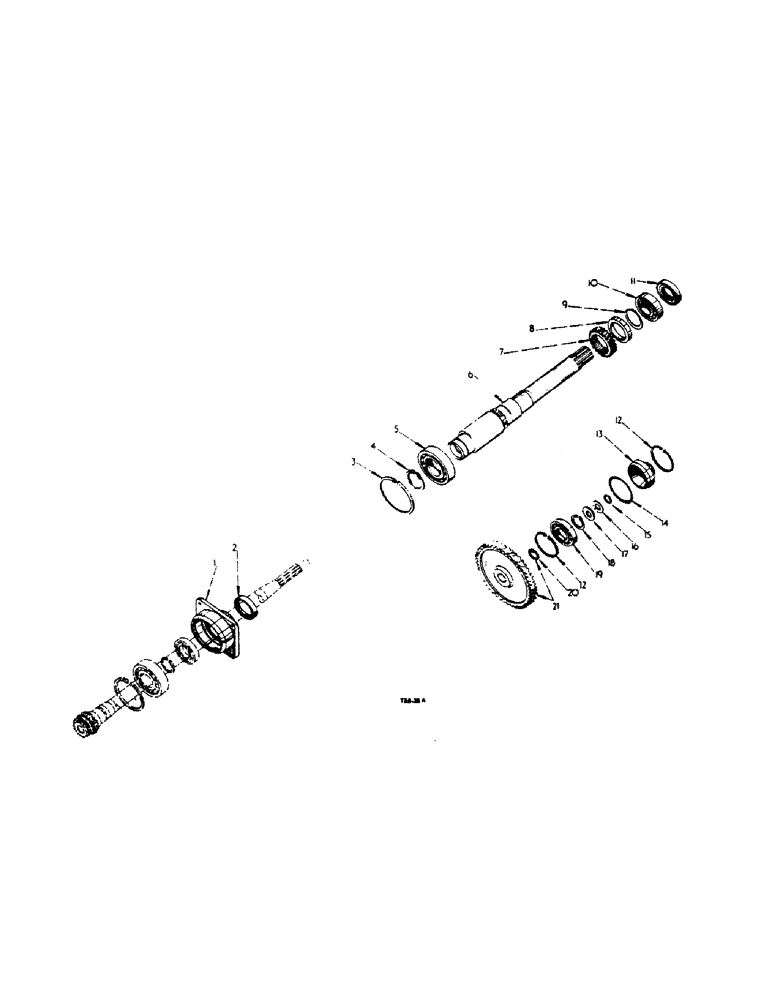

Запчасти Case IH 444 (6-40) - SINGLE SPEED CONSTANT RUNNING P.T.O. ATTACHMENT, SINGLE SPEED P.T.O. GEARS AND SHAFTS, 1,050 R.P.M. (06) - POWER TRAIN

1

751077R1

CAGE

"CAGE, bearing, trans driving shaft"

1шт.

2

751140R91

SEAL

"OIL SEAL, P.T.O. driving shaft, rear Optional"

1шт.

2

3042160R91

SEAL

"OIL SEAL, P.T.O. driving shaft, rear Optional"

1шт.

3

703911R1

RING

"CIRCLIP, P.T.O. driving shaft bearing Opt."

1шт.

3

933078R1

SNAP RING,M110, Int

"RING, locking Opt."

1шт.

4

3064407R1

SNAP RING

"CIRCLIP, P.T.O. driving shaft, rear bearing" retaining (60mm ext.) Optional

1шт.

4

703696R1

RING

"CIRCLIP, P.T.O. driving shaft, rear bearing" retaining (60mm ext.) Optional

1шт.

4

3074379R1

SNAP RING

"CIRCLIP, Anderton type 1400 60 mm Optional"

1шт.

4

933089R1

SNAP RING,M60, Ext

"RING, locking Optional"

1шт.

5

3069353R91

BALL BEARING

"BEARING, P.T.O. driving shaft, rear" (R&M) Optional

1шт.

5

3069352R91

BEARING, BALL

"BEARING, P.T.O. driving shaft, rear" (Fischer) Optional

1шт.

5

3069349R91

BEARING, BALL

"BEARING, P.T.O. driving shaft, rear" (S.K.F.) Optional

1шт.

5

3114946R91

BEARING

"BEARING, P.T.O. driving shaft, rear" (NTN) Optional

1шт.

6

3041861R1

SHAFT

"SHAFT, drive, P.T.O."

1шт.

7

3045894R1

GEAR

"GEAR, driving, P.T.O. (23T)"

1шт.

8

751155R1

SPACER

"SPACER, P.T.O. driving shaft"

1шт.

9

751179R1

"CIRCLIP, P.T.O. driving gear retainer"

1шт.

10

704235R91

BALL BEARING

"BEARING, P.T.O. driving shaft, front Optional"

1шт.

10

704234R91

BALL BEARING

"BEARING, P.T.O. driving shaft, front Optional"

1шт.

10

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

"BEARING, P.T.O. driving shaft, front Optional"

1шт.

10

3048701R91

BALL BEARING

"BEARING, P.T.O. driving shaft, front Optional"

1шт.

11

704229R91

OIL SEAL

"OIL SEAL, P.T.O. driving shaft, front Optional"

1шт.

11

704230R91

SEAL

"OIL SEAL, P.T.O. driving shaft, front Optional"

1шт.

11

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

OIL SEAL, P.T.O. driving shaft, front Optional

1шт.

12

751149R1

RING

CIRCLIP, P.T.O. front bearing retaining (85mm int.)

2шт.

13

751148R3

CAP

P.T.O. front bearing

1шт.

14

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

O RING, P.T.O. front bearing cap. 3-3/8" x 3-3/4" x 3/16"

1шт.

15

516010R1

O-RING

CIRCLIP, 3/4" ext.

1шт.

16

NOT USED

1шт.

17

751142R1

WASHER

retaining, P.T.O. shaft, front

1шт.

18

751146R1

RING

CIRCLIP, P.T.O. front bearing retaining (45 mm ext.)

1шт.

19

3114943R91

BEARING

P.T.O. shaft front (NTN)

1шт.

19

703644R91

BALL BEARING

BEARING, P.T.O. shaft front (Fischer) Optional

1шт.

19

42454H

BALL BEARING

BEARING, P.T.O. shaft front (S.K.F.) Optional

1шт.

20

751145R1

RING, SNAP

CIRCLIP P.T.O. driven gear

1шт.

21

3045892R11

"GEAR, w/CIRCLIP 751145R1 cpte., driven" P.T.O. (46T)

1шт.

1026441R1

1шт.

PRODUCT GRAPHIC P.T.O. "ATTACHMENT, full forward and reverse" (Heavy Duty Single Clutch) (545 or 573 rpm) (Factory application) comprising: CLUTCH HOUSING (See detail list) HEAVY DUTY SINGLE CLUTCH (See detail list) and FLYWHEEL (See detail list) GEAR SHIFTER MECHANISM (See detail list) GEAR HOUSING AND GEARS (See detail list) P.T.O. DRIVING SHAFT and (See detail list) GEARS (See detail list) TRANSMISSION GEARS AND (See detail list) SHAFTS (See detail list) "ATTACHMENT, full forward

1шт.

3120291R91

CASE

trans

1шт.
