Запчасти Case IH 444 (6-38) - SINGLE SPEED CONSTANT RUNNING P.T.O. ATTACHMENT (06) - POWER TRAIN

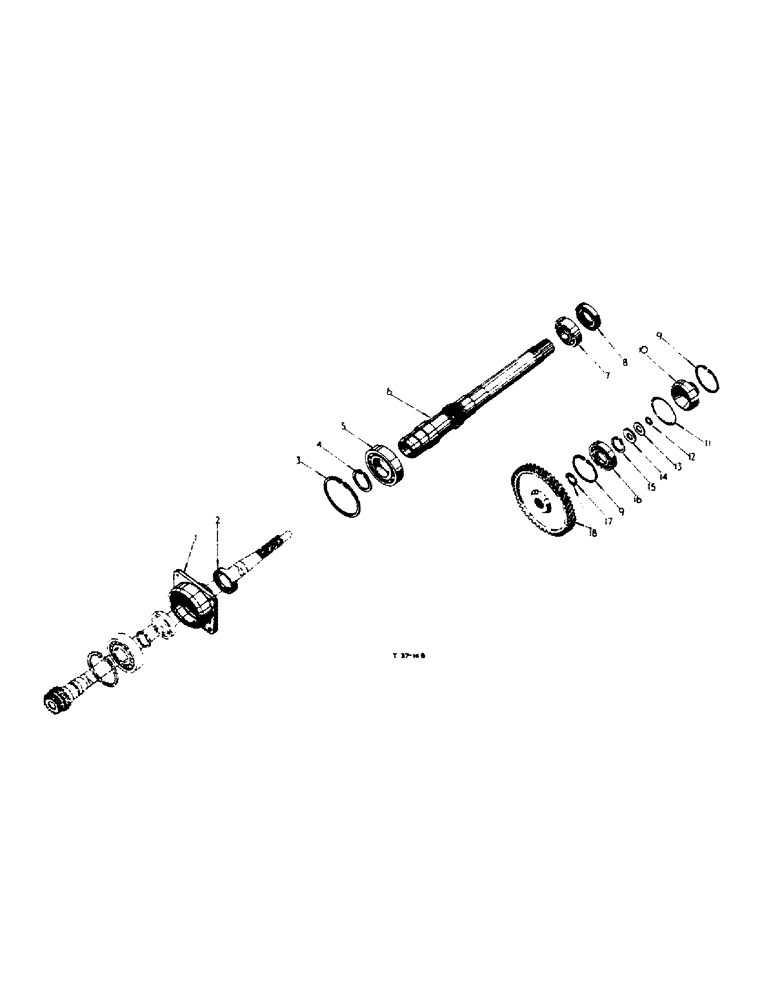

Схема запчастей Case IH 444 - (6-38) - SINGLE SPEED CONSTANT RUNNING P.T.O. ATTACHMENT (06) - POWER TRAIN
4
9
5
18
12
10
8
2
3
11
1
9
13
14
16
17
15
6
7

Артикул

Название

Примечание

Количество

1

751077R1

CAGE

bearing, trans, driving shaft

1шт.

2

751140R91

SEAL

OIL SEAL, P.T.O. driving shaft, rear Optional

1шт.

2

3042160R91

SEAL

OIL SEAL, P.T.O. driving shaft, rear Optional

1шт.

3

703911R1

RING

CIRCLIP, P.T.O. driving shaft rear bearing retaining (110 mm int.)

1шт.

3

933078R1

SNAP RING,M110, Int

"RING, locking"

1шт.

4

3074379R1

SNAP RING

"CIRCLIP, Anderton type 1400 60mm Opt."

1шт.

4

703696R1

RING

"CIRCLIP, P.T.O. driving shaft rear brg" retaining (60mm ext. Opt.

1шт.

4

3064407R1

SNAP RING

"CIRCLIP, P.T.O. driving shaft rear bearing" retaining (60mm ext) Opt.

1шт.

5

3069353R91

BALL BEARING

"BEARING, P.T.O. driving shaft, rear" (R & M)

1шт.

5

3069352R91

BEARING, BALL

"BEARING, P.T.O. driving shaft, rear" (Fischer)

1шт.

5

3069349R91

BEARING, BALL

"BEARING, P.T.O. driving shaft, rear" (S.K.F.)

1шт.

5

3114946R91

BEARING

"BEARING, P.T.O. driving shaft, rear" (NTN)

1шт.

6

3044006R1

GEAR

"SHAFT, driving and gear, P.T.O.(15T) Applicable for 573 rmp

1шт.

6

3044303R1

SHAFT

driving and gear, P.T.O. (19T) Applicable for 783 rmp

1шт.

7

704235R91

BALL BEARING

BEARING, P.T.O. driving shaft, front Optional

1шт.

7

704234R91

BALL BEARING

BEARING, P.T.O. driving shaft, front Optional

1шт.

7

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, P.T.O. driving shaft, front Optional

1шт.

7

3048701R91

BALL BEARING

BEARING, P.T.O. driving shaft, front Optional

1шт.

8

704229R91

OIL SEAL

P.T.O. driving shaft, front Optional

1шт.

8

704230R91

SEAL

OIL SEAL, P.T.O. driving shaft, front Optional

1шт.

8

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

OIL SEAL, P.T.O. driving shaft, front Optional

1шт.

9

751149R1

RING

CIRCLIP, P.T.O. front bearing retaining

1шт.

(85 mm int.)

2шт.

10

751148R3

CAP

P.T.O. front bearing

1шт.

11

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

O" RING P.T.O. front bearing cap 3-3/8" x 3-3/4" x 3/16"

1шт.

12

516010R1

O-RING

CIRCLIP, 3/4" ext.

1шт.

13

NOT USED

1шт.

14

751142R1

WASHER

"WASHER, retaining P.T.O. shaft front"

1шт.

15

751146R1

RING

"CIRCLIP, P.T.O. front bearing retaining" (45mm ext.)

1шт.

16

3114943R91

BEARING

"BEARING, P.T.O. shaft, front NTN Opt."

1шт.

16

703644R91

BALL BEARING

"BEARING, P.T.O. shaft, front Opt."

1шт.

16

42454H

BALL BEARING

"BEARING, P.T.O. shaft, front Opt."

1шт.

17

751145R1

RING, SNAP

"CIRCLIP, P.T.O. driven gear"

1шт.

18

3044007R11

GEAR

"GEAR, w/CIRCLIP 751145R1 cpte., driven" P.T.O. (55T) Applicable for 573 rmp

1шт.

18

3044302R11

GEAR

"GEAR, w/CIRCLIP 751145R1 cpte., driven" P.T.O. (51T) Applicable for 783 rmp

1шт.

1026425R1

PRODUCT GRAPHIC

P.T.O.

1шт.

1026437R1

DECAL

PRODUCT GRAPHIC P.T.O.

1шт.
