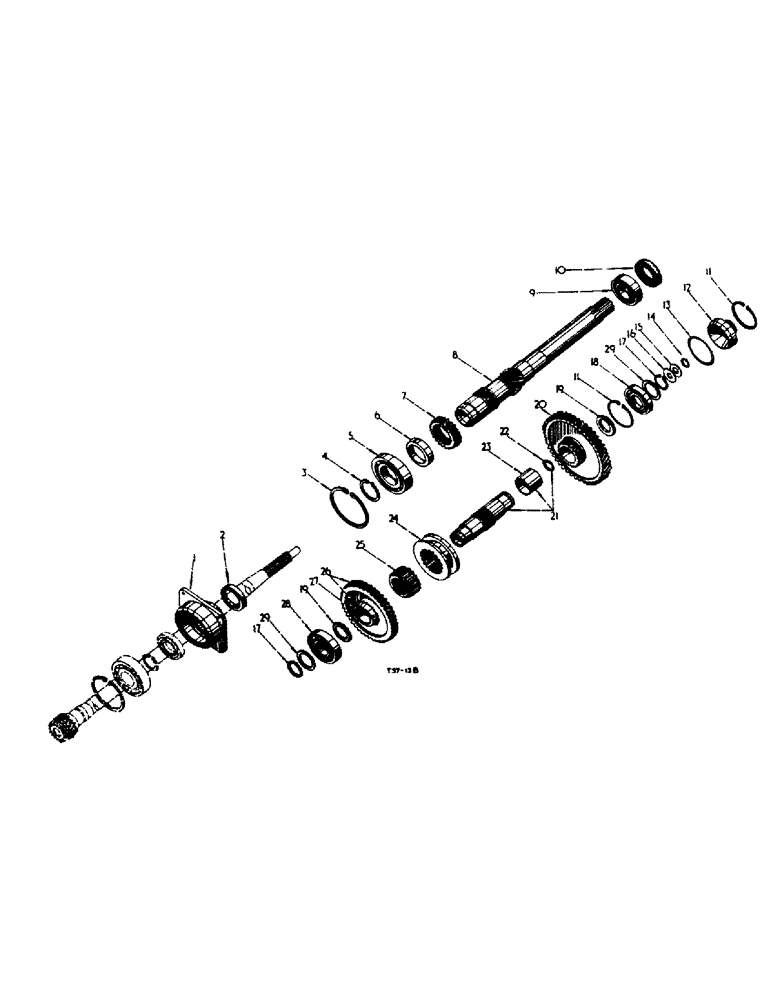

Запчасти Case IH 444 (6-36) - TWO SPEED CONSTANT RUNNING P.T.O. ATTACHMENT, TWO SPEED P.T.O. GEARS AND SHAFTS, 573 AND 1050 R.P.M. (06) - POWER TRAIN

1

751077R1

CAGE

"CAGE, bearing, trans. driving shaft"

1шт.

2

751140R91

SEAL

"OIL SEAL, P.T.O. driving shaft, rear Optional"

1шт.

2

3042160R91

SEAL

"OIL SEAL, P.T.O. driving shaft, rear Optional"

1шт.

3

703911R1

RING

"CIRCLIP, P.T.O. driving shaft rear bearing" retaining (110 mm int.) Optional

1шт.

3

933078R1

SNAP RING,M110, Int

"RING, locking Optional"

1шт.

4

3074379R1

SNAP RING

"CIRCLIP, Anderton type 1400 60 mm Opt"

1шт.

4

703696R1

RING

"CIRCLIP, P.T.O. driving shaft rear brg." retaining (60mm ext. Opt

1шт.

4

3064407R1

SNAP RING

"CIRCLIP, P.T.O. driving shaft rear bearing" retaining (60mm ext.) Optional

1шт.

5

3069353R91

BALL BEARING

"BEARING, P.T.O. driving shaft, rear" (R & M)

1шт.

5

3069352R91

BEARING, BALL

"BEARING, P.T.O. driving shaft, rear" (Fischer)

1шт.

5

3069349R91

BEARING, BALL

"BEARING, P.T.O. driving shaft, rear" (S.K.F.)

1шт.

5

3114946R91

BEARING

"BEARING, P.T.O. driving shaft, rear" (Hoffm

1шт.

6

751155R1

SPACER

"SPACER, P.T.O. driving shaft"

1шт.

7

3045894R1

GEAR

"GEAR, P.T.O. driving (23T)"

1шт.

8

3045893R1

SHAFT

"SHAFT, driving and gear P.T.O. (15T)"

1шт.

9

704235R91

BALL BEARING

"BEARING, P.T.O. driving shaft, front" (R&M)

1шт.

9

704234R91

BALL BEARING

BEARING, P.T.O. driving shaft, front (Fischer)

1шт.

9

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, P.T.O. driving shaft, front (S.K.F.)

1шт.

9

3048701R91

BALL BEARING

BEARING, P.T.O. driving shaft, front (Hoffman)

1шт.

10

704229R91

OIL SEAL

P.T.O. driving shaft, front Optional

1шт.

10

704230R91

SEAL

OIL SEAL, P.T.O. driving shaft, front Optional

1шт.

10

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

OIL SEAL, P.T.O. driving shaft, front Optional

1шт.

11

751149R1

RING

CIRCLIP, P.T.O. front bearing retaining

1шт.

(85 mm int.)

2шт.

12

751148R3

CAP

P.T.O. front bearing

1шт.

13

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

O" RING, P.T.O. front bearing cap, 3-3/8" x 3-3/4" x 3/16"

1шт.

14

516010R1

O-RING

CIRCLIP, 3/4" ext.

1шт.

15

NOT

USED

1шт.

16

751142R1

WASHER

retaining, P.T.O. shaft, front

1шт.

17

751146R1

RING

CIRCLIP, countershaft, bearing retaining

1шт.

(45 mm ext.)

2шт.

18

703644R91

BALL BEARING

BEARING, P.T.O. countershaft front (Fischer)

1шт.

18

42454H

BALL BEARING

BEARING, P.T.O. countershaft front (S.K.F.)

1шт.

18

3114943R91

BEARING

P.T.O. countershaft front (NTN)

1шт.

19

751167R2

SPACER

P.T.O. countershaft

2шт.

20

3045895R1

GEAR

P.T.O. driven (55T)

1шт.

21

751157R11

COUNTERSHAFT

w/BUSH 751159R1 and CIRCLIP 751145R1 cpte., P.T.O.

1шт.

22

751145R1

RING, SNAP

CIRCLIP, P.T.O. countershaft (1-3/8" int.)

1шт.

23

751159R1

BUSHING

BUSH, compo, SN.148 x 1-5/8"

1шт.

24

751164R1

PULLEY

CLUTCH, P.T.O. countershaft

1шт.

25

751163R1

BODY

clutch P.T.O. countershaft

1шт.

26

3045896R11

GEAR, w/BUSH 751159R1 cpte., driven P.T.O.

1шт.

27

751159R1

BUSHING

BUSH, compo, SN.148 x 1-5/8"

1шт.

28

3063611R91

BALL BEARING

P.T.O. countershaft, rear (Hoffman)

1шт.

29

3069089R1

WASHER

bearing retainer

2шт.

1026433R1

PRODUCT GRAPHIC, P.T.O.

1шт.
