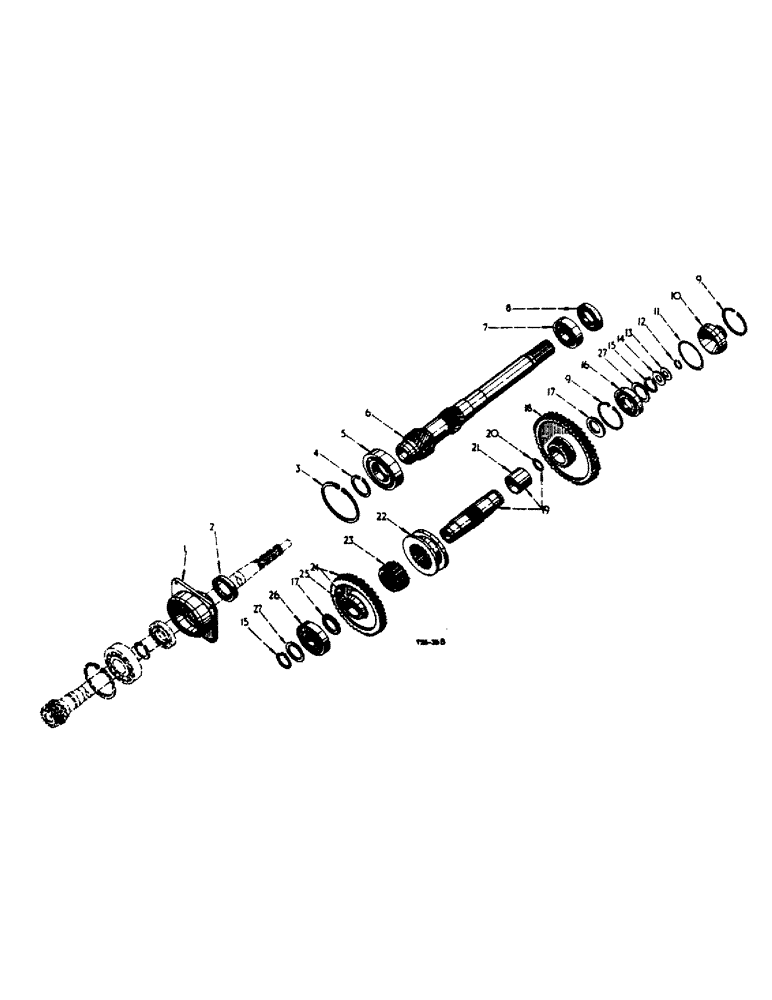

Запчасти Case IH 444 (6-34) - TWO SPEED CONSTANT RUNNING P.T.O. ATTACHMENT, TWO SPEED P.T.O. GEARS AND SHAFTS, 573 AND 783 R.P.M. (06) - POWER TRAIN

1

751077R1

CAGE

bearing trans. driving shaft

1шт.

2

751140R91

SEAL

OIL SEAL, P.T.O. driving shaft, rear Optional

1шт.

2

3042160R91

SEAL

OIL SEAL, P.T.O. driving shaft, rear Optional

1шт.

3

703911R1

RING

CIRCLIP, P.T.O. driving shaft, rear bearing retainer (110mm internal)

1шт.

3

933078R1

SNAP RING,M110, Int

"RING, locking"

1шт.

4

3074379R1

SNAP RING

"CIRCLIP, Anderton type 1400 60 mm Opt."

1шт.

4

3064407R1

SNAP RING

"CIRCLIP, P.T.O. driving shaft rear brg." retainer (60mm ext Opt.

1шт.

4

703696R1

RING

"CIRCLIP, P.T.O. driving shaft rear bearing" retainer (60mm ext.) Optional

1шт.

5

3069353R91

BALL BEARING

"BEARING, P.T.O. driving shaft, rear" (R & M) Optional

1шт.

5

3069352R91

BEARING, BALL

"BEARING, P.T.O. driving shaft, rear" (Fischer) Optional

1шт.

5

3069349R91

BEARING, BALL

"BEARING, P.T.O. driving shaft, rear" (S.K.F.) Optional

1шт.

5

3114946R91

BEARING

"BEARING, P.T.O. driving shaft, rear" (NTN) Optional

1шт.

6

3045897R1

SHAFT

"SHAFT, driving P.T.O. (19 and 15 teeth)"

1шт.

7

704234R91

BALL BEARING

"BEARING, P.T.O. driving shaft, front Optional"

1шт.

7

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

"BEARING, P.T.O. driving shaft, front Optional"

1шт.

7

3048701R91

BALL BEARING

"BEARING, P.T.O. driving shaft, front" (Hoffman) Optional

1шт.

8

704229R91

OIL SEAL

"OIL SEAL, P.T.O. driving shaft, front Optional"

1шт.

8

704230R91

SEAL

"OIL SEAL, P.T.O. driving shaft, front Optional"

1шт.

8

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

"OIL SEAL, P.T.O. driving shaft, front Optional"

1шт.

9

751149R1

RING

"CIRCLIP, P.T.O. front bearing" (85 mm internal)

1шт.

10

751148R3

CAP

"CAP, P.T.O. front bearing"

1шт.

11

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

"O" RING, P.T.O. front bearing cap" " 3-3/8" x 3-3/4" x 3/16"

1шт.

12

516010R1

O-RING

"CIRCLIP, 3/4" ext."

1шт.

13

NOT USED

1шт.

14

751142R1

WASHER

"WASHER, retaining, P.T.O. shaft, front"

1шт.

15

751146R1

RING

"CIRCLIP, countershaft bearing retaining"

1шт.

(45mm ext)

2шт.

16

3114943R91

BEARING

P.T.O. countershaft, front NTN Optional

1шт.

16

703644R91

BALL BEARING

BEARING, P.T.O. countershaft, front (Fischer) Optional

1шт.

16

42454H

BALL BEARING

BEARING, P.T.O. countershaft, front (S.K.F.) Optional

1шт.

17

751167R2

SPACER

P.T.O. countershaft

2шт.

18

3045895R1

GEAR

P.T.O. driven (55T)

1шт.

19

751157R31

SHAFT

COUNTERSHAFT

1шт.

444 up to DIESEL EXPORT B 5036 UK B 1704 USA/CAN B 2442 4/W/DRIVE B 515 PET CANADA B 1015 2350 up to DIESEL CAN B 523 UK B 645 EXPORT B 502 PET CANADA B 519

1шт.

3117751R91

SHAFT

COUNTERSHAFT, P.T.O. cpte.

1шт.

444 up to DIESEL EXPORT B 5036 UK B 1705 USA/CAN B 2443 4/W/DRIVE B 516 PET CANADA B 1016 2350 up to DIESEL CANADA B 524 UK B 646 EXPORT B 503 PET CANADA B 520

1шт.

20

751145R1

RING, SNAP

CIRCLIP, P.T.O. countershaft (1-3/8" int)

1шт.

21

751159R1

BUSHING

BUSH, compo, SN 148 x 1-5/8"

1шт.

22

751164R1

PULLEY

CLUTCH, P.T.O. countershaft

1шт.

23

751163R1

BODY

clutch P.T.O. countershaft

1шт.

24

3044305R11

GEAR

w/BUSH 751159R1, cpte., driven P.T.O. (51T)

1шт.

25

751159R1

BUSHING

BUSH, compo, SN.148 x 1-5/8"

1шт.

26

3063611R91

BALL BEARING

P.T.O. countershaft, rear

1шт.

444 up to DIESEL EXPORT B 5036 UK B 1704 USA/CAN B 2442 4/W/DRIVE B 515 PET CANADA B 1015 2350 up to DIESEL CAN B 523 UK B 645 EXPORT B 502 PET CANADA B 519

1шт.

3117751R91

SHAFT

BEARING

1шт.

3114943R91

BEARING

1шт.

703644R91

BALL BEARING

BEARING

1шт.

42454H

BALL BEARING

BEARING

1шт.

708170R91

BEARING, BALL

BEARING

1шт.

444 up to DIESEL EXPORT B 5036 UK B 1705 USA/CAN B 2443 4/W/DRIVE B 516 PET CANADA B 1016 2350 up to DIESEL CANADA B 524 UK B 646 EXPORT B 503 PET CANADA B 520

1шт.

27

3069089R1

WASHER

bearing retainer

2шт.

1026429R1

PRODUCT GRAPHIC, P.T.O. speed

1шт.
