Запчасти Case IH 444 (6-31) - CONSTANT RUNNING P.T.O. ATTACHMENT, SINGLE CLUTCH P.T.O. ATTACHMENT, TRANSMISSION GEARS AND SHAFTS (06) - POWER TRAIN

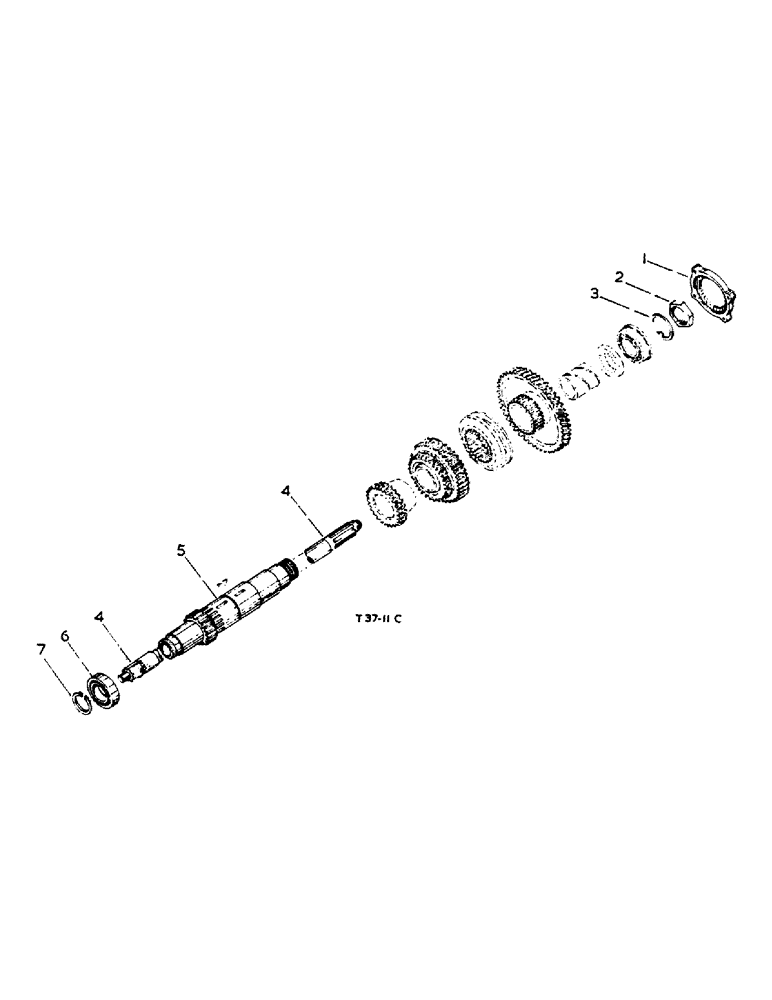

Схема запчастей Case IH 444 - (6-31) - CONSTANT RUNNING P.T.O. ATTACHMENT, SINGLE CLUTCH P.T.O. ATTACHMENT, TRANSMISSION GEARS AND SHAFTS (06) - POWER TRAIN
4
7
4
3
2
1
5
6

Артикул

Название

Примечание

Количество

1

751150R1

RETAINER

front bearing, trans. countershaft

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8" x 1-1/8" hex. hd.

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

751065R1

BEARING LOCK NUT

"NUT, countershaft front bearing, lock"

1шт.

3

751066R1

WASHER

"WASHER, countershaft front bearing, lock"

1шт.

4

3068451R2

SHAFT

"SHAFT, P.T.O. front"

1шт.

5

3043992R11

SHAFT

"COUNTERSHAFT, w/BUSH 751161R1 cpte.," trans. and front speed gear

1шт.

6

3115945R91

BALL BEARING

"BEARING, trans countershaft, rear ball NTN"

1шт.

6

751063R91

BALL BEARING,50 mm ID x 80 mm OD x 19 mm

"BEARING, trans countershaft, rear ball" (R & M) (Optional)

1шт.

6

3040830R91

BALL BEARING

"BEARING, trans countershaft, rear ball" (Fischer) (Optional)

1шт.

6

3049757R91

BALL BEARING

"BEARING, trans countershaft, rear ball (Optional)"

1шт.

7

751638R1

RING, SNAP

"CIRCLIP, trans countershaft rear bearing" retaining

1шт.

751161R1

BUSHING

"BUSH, P.T.O. shaft"

1шт.

Выбрано товаров: 13
