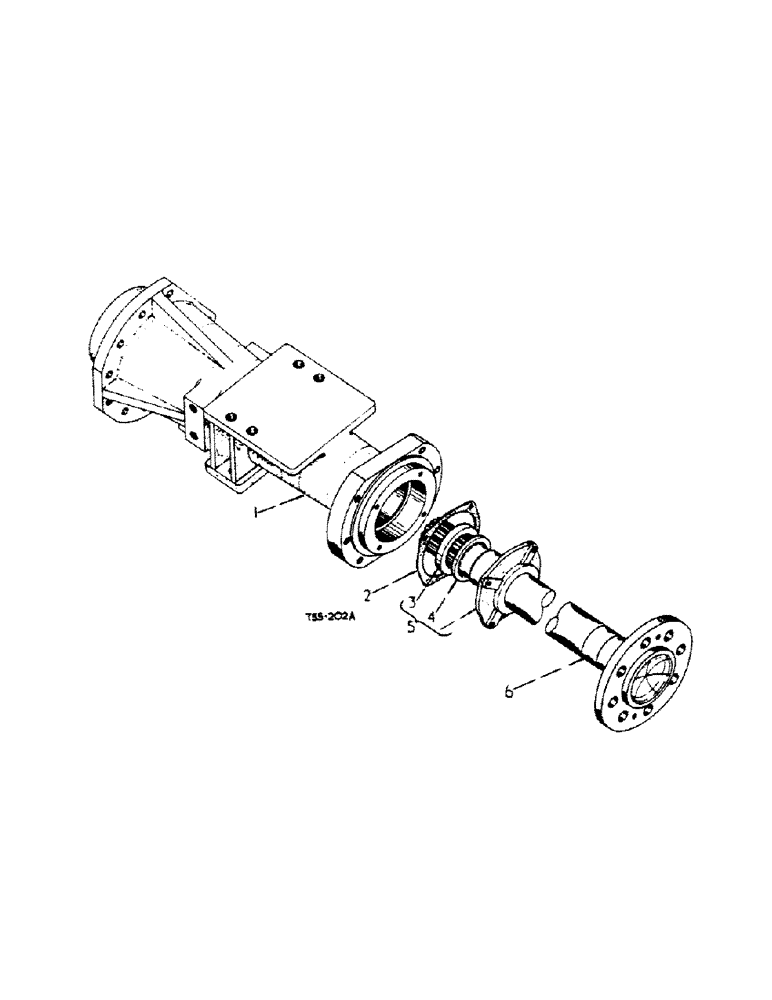

Запчасти Case IH 444 (6-27) - REAR AXLE AND CARRIERS, HAND OPERATED DRUM BRAKE ATTACHMENT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
3074046R1
CARRIER, rear axle L.H., hand operated drum brake attachment
1шт.
179886
BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5
hex. hd. 1/2" x 1-5/8", hand operated drum brake attachment
10шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, , Hand operated drum brake attachment 1/2"
10шт.
1
3074047R1
CARRIER, rear axle, R.H., hand operated drum brake attachment
1шт.
179886
BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5
hex. hd. 1/2" x 1-5/8", hand operated drum brake attachment
10шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, , Hand operated drum brake attachment 1/2"
10шт.
2
709109R1
GASKET
rear axle bearing retainer, hand operated drum brake attachment
2шт.
3
703916R91
SEAL
oil Opt., hand operated drum brake attachment
2шт.
703917R92
OIL SEAL
oil Opt., hand operated drum brake attachment
2шт.
3069987R91
SEAL
oil Opt., hand operated drum brake attachment
2шт.
4
703915R1
WASHER,2.56mm ID x 3.13mm OD x 0.25mm Thk
rear axle felt, hand operated drum brake attachment
1шт.
5
709110R11
RETAINER
w/SEAL 703916R91 and WASHER 703915R1, hand operated drum brake attachment
1шт.
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
Hand operated drum brake attachment Hex, 5/16"-18 x 2 1/4", G5
8шт.
6
3063996R21
4WD AXLE ASSY
AXLE, rear, hand operated drum brake attachment
2шт.
3047577R2
BOLT,Wheel, 5/8" - 18 x 2 1/2"
rear wheel hub, hand operated drum brake attachment
16шт.
ref
Part No.
English, heavy duty back end attachment
1шт.
3109638R91
ATTACHMENT, heavy duty back end attachment
1шт.
3069762R11
HOUSING
AXLE, rear, cpte., heavy duty back end attachment
1шт.
3047576R2
BOLT
rear wheel, heavy duty back end attachment
16шт.
3073799R92
CASE
cpte., trans. comprising:, heavy duty back end attachment
1шт.
3072136R1
BUSHING
BUSH, reverse idler gear, front, heavy duty back end attachment
1шт.
711272R2
BUSHING
BUSH, reverse idler gear, rear, heavy duty back end attachment
1шт.
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
LUBRICATOR, 1/8" PTF x 90degree angle, heavy duty back end attachment
2шт.
141284
PIN,25.4mm OD x 31.75mm L
Pin, Heavy duty back end attachment 1/2" x 1 1/8"
2шт.
438159
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG, 1/2" sq. hd. pipe Opt., heavy duty back end attachment
3шт.
217-519
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG, , Pipe - Optional, Heavy duty back end attachment Sq Hd, 1/2"-14 NPTF
3шт.
172575
PLUG,Exp, 1 9/16"
1-9/16" dia. expansion, heavy duty back end attachment
1шт.
3109605R91
CARRIER, rear axle L.H., heavy duty back end attachment
1шт.
3109606R91
CARRIER, rear axle R.H., heavy duty back end attachment
1шт.
179886
BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5
1/2" x 1-5/8" hex. hd., heavy duty back end attachment
20шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, , Heavy duty back end attachment 1/2"
20шт.
703916R91
SEAL
rear axle oil Opt., heavy duty back end attachment
1шт.
703917R91
SEAL
rear axle oil Opt., heavy duty back end attachment
1шт.
3069987R91
SEAL
rear axle oil Opt., heavy duty back end attachment
1шт.
703915R1
WASHER,2.56mm ID x 3.13mm OD x 0.25mm Thk
rear axle felt, heavy duty back end attachment
2шт.
709109R1
GASKET
rear axle bearing retainer, heavy duty back end attachment
2шт.
709110R11
RETAINER
rear axle bearing cpte., w/SEAL 703916R91 and WASHER 703915R1, heavy duty back end attachment
1шт.
179827
FRONT AXLE
Heavy duty back end attachment Hex, 5/16"-18 x 2 1/4", G5
8шт.
ref
Part No.
1шт.
English ATTACHMENT, two speed constant running P.T.O. (As reqd) (Factory application) (573 and 1050 r.p.m.) (573 and 783 r.p.m.) comprising: Clutch Housing (See detail list) Dual Clutch and Flywheel (See detail list) Rear P.T.O. (See detail list) Trans. gears and shafts (See detail list) Two Speed P.T.O. Gears and Shafts (See detail list) Two Speed P.T.O. Shifter (See detail list) ATTACHMENT, single speed constant running P.T.O. (As reqd) (Factory application) " (573, 783 and 1050
1шт.
3049394R91
"PACKAGE, conversion from (573/783 r.p.m.) to" (573/1050 r.p.m.) dual speed (As reqd), constant running P.T.O. attachment
1шт.
3049395R91
"PACKAGE, conversion from (1050 r.p.m.) to" (573/783 r.p.m.) dual speed (As reqd), constant running P.T.O. attachment
1шт.
3049396R91
"PACKAGE, conversion from (783 or 573 r.p.m.)" to (573/783 r.p.m.) dual speed (As reqd), constant running P.T.O. attachment
1шт.
3049397R91
"PACKAGE, conversion from (783 or 573 r.p.m.)" to (573/1050 r.p.m.) dual speed (As reqd), constant running P.T.O. attachment
1шт.
3071073R91
"PACKAGE, conversion from 573 r.p.m. to" 783 r.p.m., constant running P.T.O. attachment
1шт.
3071074R91
PACKAGE, conversion from 783 r.p.m. to 573 r.p.m., constant running P.T.O. attachment
1шт.
Выбрано товаров: 48
