Запчасти Case IH 444 (6-23) - FRONT AXLE AND STAY ROD ATTACHMENTS, KEY TO UNITS (06) - POWER TRAIN

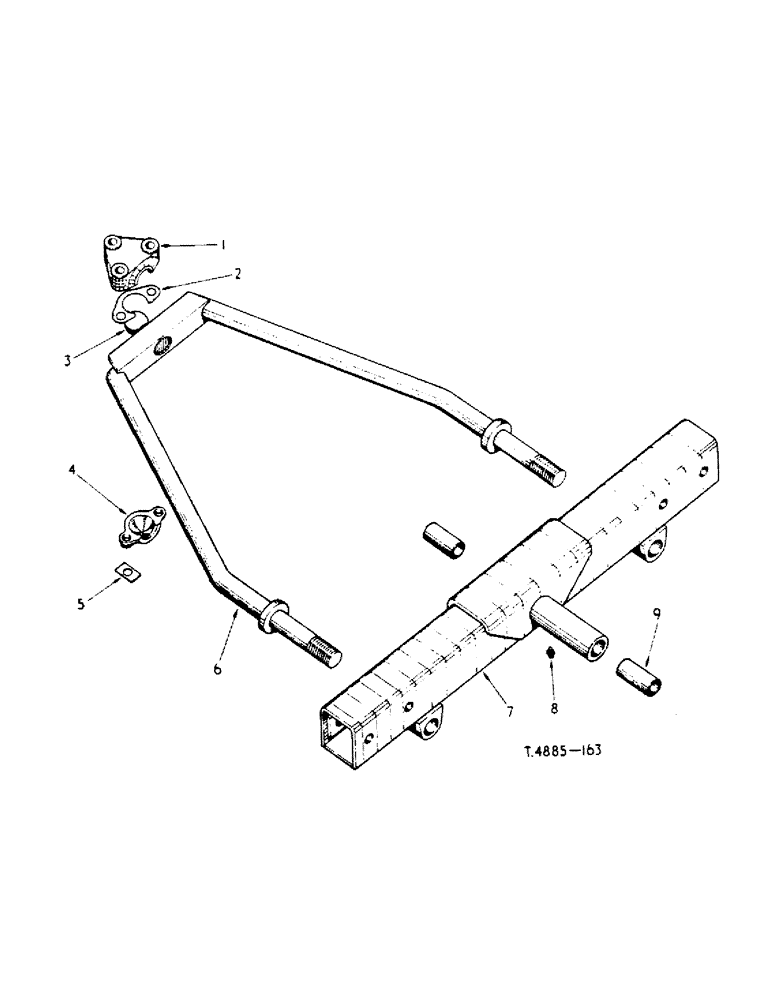

Схема запчастей Case IH 444 - (6-23) - FRONT AXLE AND STAY ROD ATTACHMENTS, KEY TO UNITS (06) - POWER TRAIN
2
7
6
9
3
4
1
5
8

Артикул

Название

Примечание

Количество

ATTACHMENT, front axle and stay rod (A) ATTACHMENT, front axle and stay rod (B)

1шт.

1

3043920R1

CUP

SOCKET, ball stay rod

1шт.

2

842389R1

SHIM

cap stay rod socket (As required)

1шт.

3

3071538R1

BALL

stay rod

1шт.

4

3109613R1

CAP

stay rod ball socket

1шт.

5

842391R1

PLATE

LOCKPLATE, ball socket

3шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

hex. hd. 5/8" x 3"

2шт.

6

3105073R91

BAR

ROD, cpte., stay

1шт.

427370

NUT

hex., 1-3/8" UNF

2шт.

131036

WASHER

lock, 1-3/8"

2шт.

7

3043916R91

AXLE

w/two BUSHES 3043856R1 and LUBRICATOR 109461 cpte. front (A)

1шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

LNIPPLE, LUBE, , NPT (A) 1/8"-27 x .66 lg

1шт.

9

3043856R1

BUSHING

BUSH, front axle pivot pin (A2)

1шт.

ref

Part No.

1шт.

English ATTACHMENT, hand operated drum brake (Factory application) comprising: BRAKE PEDAL AND SHAFT (See detail list) HANDBRAKE LINKAGE (See detail list) 14" x 2" DAFC DRUM BRAKE ASSY (See detail list) REAR AXLE AND CARRIERS (See detail list)

1шт.

Выбрано товаров: 16
