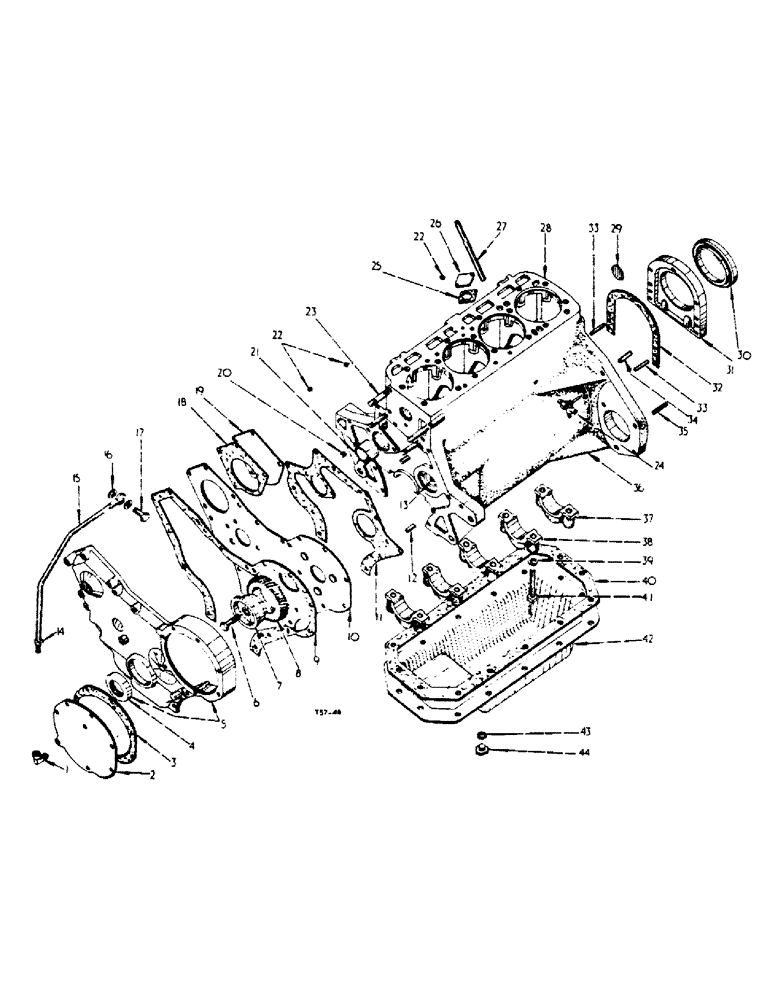

Запчасти Case IH 444 (1-03) - CRANKCASE, FRONT COVER AND OIL PAN (02) - ENGINE

1

3110596R1

ELBOW

breather pipe

1шт.

2

709904R2

COVER

injection pump gear

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Includes: bolt, nut, and washer Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

6шт.

9635082

NUT,5/16" - 18, Gr 5

hex. 5/16"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3

703849R1

GASKET

injection pump gear cover, Includes: Ref. 4

1шт.

4

3108650R91

SEAL

OIL SEAL, crankshaft - front

1шт.

5

708284R41

COVER

crankcase, front cpte., w/ ) OIL SEAL 3108650R41

1шт.

5

3042069R21

COVER

crankcase, front, cpte. w/ ) OIL SEAL 3108650R91

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

hex. hd. 1/2" UNF x 1-7/8"

1шт.

7

703853R11

SHAFT

idler gear, w/PIN 932039R1

1шт.

932039R1

LOCK PIN,M3 x 16, Slotted

PIN, roll (3 mm x 16 mm)

1шт.

8

703852R1

GEAR

idler

1шт.

9

708285R2

GASKET

front cover crankcase

1шт.

10

709901R11

PLATE

front cpte crankcase

1шт.

SCREW, crankcase front plate mach.

2шт.

11

709903R2

GASKET

front plate crankcase

1шт.

12

141244

PIN

dowel

2шт.

13

751610R1

INSERT

idler gear, bolt screw lock, 1/2" UNF x 1/2"

1шт.

14

700153R11

NUT

connector, cpte. Opt.

1шт.

14

222-504

TUBE NUT,9/16"-20

NUT, connector, cpte. Opt.

1шт.

15

3043654R92

HOSE

PIPE, crankcase breather, cpte.

1шт.

16

708297R1

GASKET

WASHER, breather pipe banjo bolt

2шт.

17

708296R1

CONNECTOR, ELEC

BOLT, breather pipe banjo

1шт.

18

703851R1

GASKET

hydraulic pump opening cover

1шт.

19

703850R1

COVER

hydraulic pump opening

1шт.

272391

BEARING ASSY,Hex, 5/16" - 18 x 2 1/8", Gr 5

hex. hd. 5/16" x 2-1/8"

1шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

hex. 5/16"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q397

WASHER

flat, 3/4" x 11/32" x 16 ga.

1шт.

20

444691

PLUG

sltd. hdls. pipe. 1/4"

2шт.

21

703827R1

CAMSHAFT BEARING

BUSH, camshaft, - front

1шт.

21

703828R1

CAMSHAFT BEARING

BUSH, camshaft, - centre

1шт.

21

703829R1

CAMSHAFT BEARING

BUSH, camshaft, - rear

1шт.

22

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

23

703832R1

STUD

water pump

4шт.

24

106794

VALVE

TAP, water drain Opt.

1шт.

24

707888R92

COCK

TAP, water drain Opt.

1шт.

25

3042467R1

GASKET

hourmeter drive opening cover

1шт.

26

3042468R1

COVER

hourmeter drive opening

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

751826R1

TUBE,0.375" OD, 5.75" Length

dipstick

1шт.

28

751834R1

INSERT

heli-coil thread, 7/16" x 14

16шт.

29

172578

PLUG,Exp, 1 3/4"

expansion, (type 1, 1-3/4" dia.)

1шт.

30

3072092R91

OIL SEAL

OIL SEAL, rear crankshaft

1шт.

31

708904R1

RETAINER

crankshaft rear oil seal

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

crankshaft rear oil seal retainer

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

32

708907R2

OIL SEAL

crankshaft rear oil seal retainer

1шт.

33

141223

DOWEL,5/16" x 1"

PIN, crankshaft rear oil seal retainer dowel

2шт.

34

141287

DOWEL,1/2" x 1 1/2"

PIN, dowel

2шт.

35

703877R1

STUD

starter motor

1шт.

36

3047288R31

CRANKCASE

cpte., comprising

1шт.

BOLT 3061211R1

10шт.

BUSH 703827R1

1шт.

BUSH 703828R1

1шт.

BUSH 703829R1

1шт.

CAP 706491R2

1шт.

CAP 708902R2

1шт.

INSERT 751834R1

16шт.

INSERT 751610R1

1шт.

PIN 141223

2шт.

PIN 141244

2шт.

PIN 141287

2шт.

PLUG 172578

1шт.

PLUG 444691

2шт.

PLUG 103883

3шт.

STUD 703877R1

1шт.

TAP 106794

1шт.

TUBE 751826R1

1шт.

WASHER 3061325R1

1шт.

37

708902R1

CAP

crankshaft bearing - rear (As required)

1шт.

38

706491R2

CAP

crankshaft bearing (As required)

1шт.

39

3061325R1

WASHER

crankshaft bearing cap bolt

10шт.

40

703840R1

GASKET

crankcase pan

1шт.

41

3061211R1

BOLT,1/2" - 13 x 2.875"

crankshaft bearing cap

10шт.

42

3064063R11

SUMP

PAN, cpte., crankcase oil

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

14шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

43

3405H

GASKET

crankcase pan drain plug Opt.

1шт.

43

3043644R1

WASHER

GASKET, crankcase pan drain plug Opt.

1шт.

44

445096

PLUG

crankcase pan drain

1шт.

3061330R99

CRANKCASE

PACKAGE, crankcase service (As required) comprising:

1шт.

CRANKCASE 3047288R31

1шт.

PACKAGE 3061216R91

1шт.

PACKAGE 3044478R94

1шт.

PACKAGE 3110995R91

1шт.

60046D

ELBOW

1шт.

30402D

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

1шт.
