Запчасти Case IH 444 (4-19[A]) - GEAR SHIFTER MECHANISM AND TRANSMISSION, CASE COVER - FRONT, AIR CLEANER - DRY TYPE. (06) - POWER TRAIN

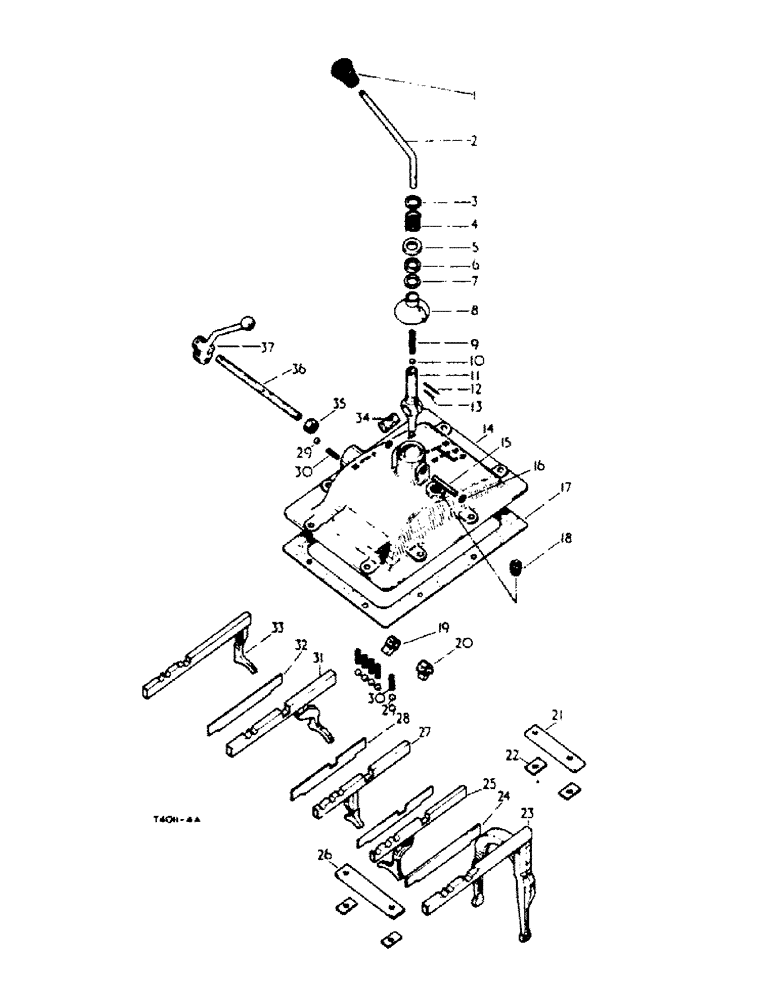

Схема запчастей Case IH 444 - (4-19[A]) - GEAR SHIFTER MECHANISM AND TRANSMISSION, CASE COVER - FRONT, AIR CLEANER - DRY TYPE. (06) - POWER TRAIN
6
34
4
21
32
9
25
26
33
10
14
2
30
3
12
35
17
30
22
8
29
11
18
37
16
13
1
24
31
19
5
28
36
27
7
15
29
23
20

Артикул

Название

Примечание

Количество

1

3109443R1

BALL

"BALL, gear shift lever"

1шт.

2

"LEVER, gear shifter hand", $ - order 3106909R92 or 3106910R92, $

1шт.

454331R1

SNAP RING,#87, Ext

1шт.

3

710953R1

STOP

"STOP, spring gear shift lever"

1шт.

4

3106665R1

SPRING

"SPRING, gear shifter lever"

1шт.

5

34880D

RETAINER

"RETAINER, felt washer, gear shift lever"

1шт.

6

34879D

WASHER

"WASHER, felt gear shift lever"

1шт.

7

Q113

WASHER

"WASHER, plain 29/32" x 1-3/8" x 16 ga"

1шт.

8

712626R1

SHIELD

gear shifter swivel housing

1шт.

9

3068944R1

SPRING

gear shift ball

1шт.

10

16014R1

BALL

7/16" dia

1шт.

11

END, gear shifter lever, $ - order 3106909R92 or 3106910R92, $ -

1шт.

12

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

13

17054R1

LOCK PIN,3/16" x 7/8", Slotted

Pin, 3/16" x 7/8", Slotted

1шт.

14

3044047R3

COVER

trans case front

1шт.

NLS

NO LONGER SERVICED

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

15

SHAFT, swivel gear shifter lever, small (order 3106664R11)

1шт.

16

172529

PLUG

expansion gear shift lever swivel

1шт.

(small)

2шт.

17

703969R2

GASKET

trans case cover front

1шт.

18

444592R1

PLUG

pipe 3/4" Opt.

1шт.

18

20963R1

PLUG,Sq Hd, 1/4"-14 NPTF

pipe 3/4" Opt.

1шт.

18

217-442

PLUG,3/4" - 14

pipe 3/4". Opt.

1шт.

19

751090R3

CAM

high low range shifter

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, , 5 3/16" x 1", Slotted

1шт.

20

751851R4

CAM

low speed gear shifter

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, , 5 3/16" x 1", Slotted

1шт.

21

751085R1

BRACKET

gear shifter fork and guide

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

22

59473DA

LOCK

bolt, gear shifter rail guide

4шт.

23

3040867R33

FORK

low speed shifter, cpte.

1шт.

24

704039R2

GUIDE

gear shifter, R.H.

1шт.

25

751101R23

FORK

1st and reverse speed gear shifter, cpte.

1шт.

26

3044010R1

GUIDE

BRACKET, gear shifter fork and guide

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

27

751104R93

FORK

2nd and 3rd speed gear shifter, cpte.

1шт.

28

704038R2

GUIDE

gear shifter rail, inner

2шт.

29

16013R1

BALL

steel (13/16" dia. chrome grade 2)

6шт.

30

3072000R1

SPRING

gear shifter poppet

6шт.

ref

Part No.

English Remarks

1шт.

1

3111969R92

CLEANER ASSY.

CLEANER, air dry type comprising:

1шт.

2

BODY, assy.

1шт.

3

3066501R91

CLAMP

assy

1шт.

4

3066498R92

ELEMENT

assy

1шт.

5

3109737R91

SCREW

NUT and GASKET, assy

1шт.

6

3066502R1

SKIRT

baffle

1шт.

7

3112651R91

CUP

assy.

1шт.

8

3110771R91

VALVE

vacuator

1шт.

179814

SPACER

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex. 5/16"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Выбрано товаров: 52
