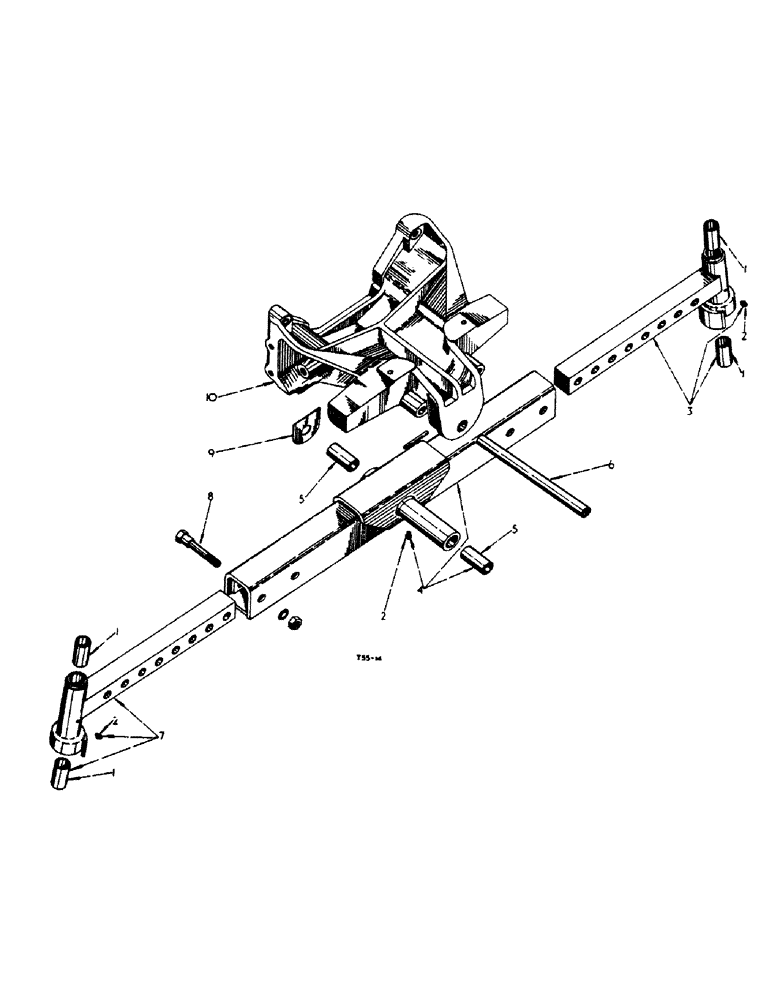

Запчасти Case IH 444 (4-09) - FRONT AXLE (06) - POWER TRAIN

1

40090D

BUSHING

BUSH, steering knuckle pivot

4шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT, Opt. 1/8"-27 x .66 lg

3шт.

2

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT Optional 1/8"-27 x .66 lg

3шт.

3

3043858R91

EXTENSION

w/two BUSHES 40090D and LUBRICATOR 109461 cpte., front axle LH.

1шт.

4

3043850R91

AXLE

w/two BUSHES 3043856R1 and LUBRICATOR 109461 cpte front

1шт.

5

3043856R1

BUSHING

BUSH, pivot pin, front axle

2шт.

6

3043857R1

PIN

front axle pivot

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

hex. hd. 3/8" x 4-1/2"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

3043859R91

EXTENSION

w/two BUSHES 40090D and LUBRICATOR 109461 cpte. front axle RH.

1шт.

8

3072766R11

BOLT

cpte., front axle extension

4шт.

3043863R2

BOLT

front axle extension

4шт.

218197

NUT,3/4"-16, G5

hex. 3/4" UNF

4шт.

9

706151R2

SHIM

front axle pin sleeve (.036")

1шт.

10

3115780R2

SUPPORT

front axle

1шт.

271565

SHIELD,Hex, 5/8" - 11 x 2 3/4", Gr 5

hex. hd. 5/8" x 2-3/4"

1шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

hex. hd. 5/8" x 3"

2шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

hex. hd. 5/8" x 3-3/4"

1шт.

3044674R1

SHIM

front axle pivot pin sleeve (.028) As required

1шт.

706152R1

SHIM

front axle pivot pin sleeve (33swg) As required

1шт.
