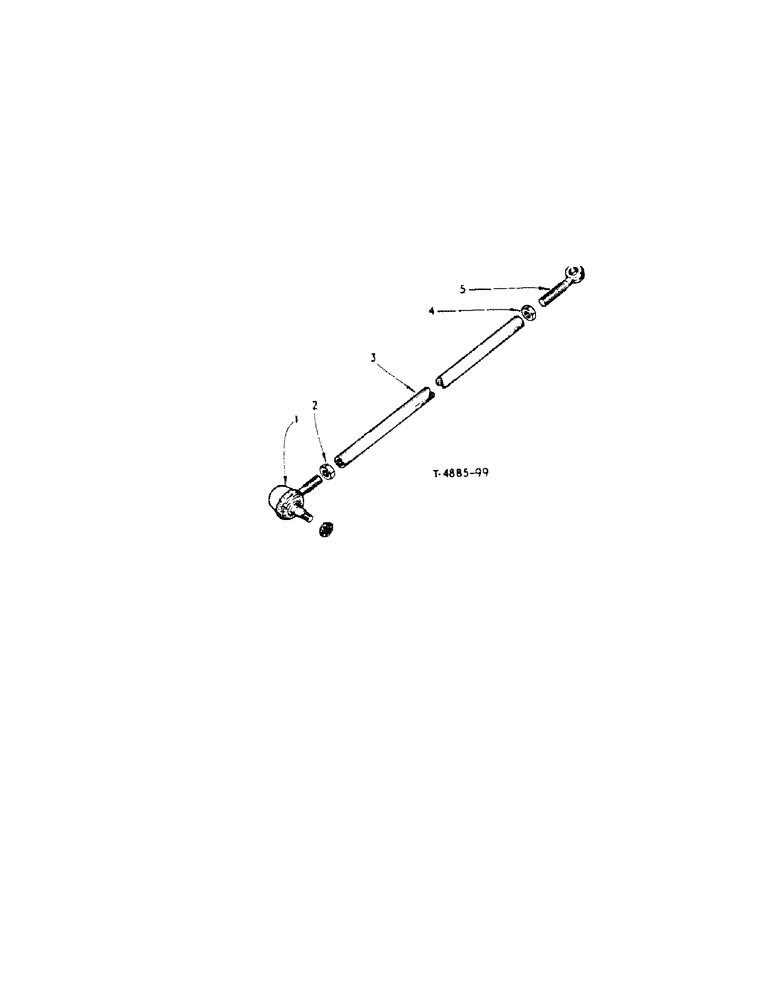

Запчасти Case IH 444 (6-22[A]) - POWER STEERING AND FRONT AXLE ATTACHMENT, DRAG LINK ASSEMBLY (05) - STEERING

3105265R92

DRAG LINK

"DRAG LINK assy., w/two LUBRICATOR" 110146R91 comprising:

1шт.

1

3040921R92

KNEE JOINT

END, drag link L.H. thread

1шт.

3041067R1

BOOT

rubber

1шт.

3041066R1

CLIP

boot

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

3041065R1

WASHER

boot

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

2

705247R1

NUT

lock, L.H. thread

1шт.

3

3070992R1

TUBE

SECTION, drag link centre

1шт.

4

705248R1

NUT

lock, R.H. thread

1шт.

5

3070991R1

END

drag link

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

16964R91

FITTING

LUBRICATOR, ANGLE

1шт.
