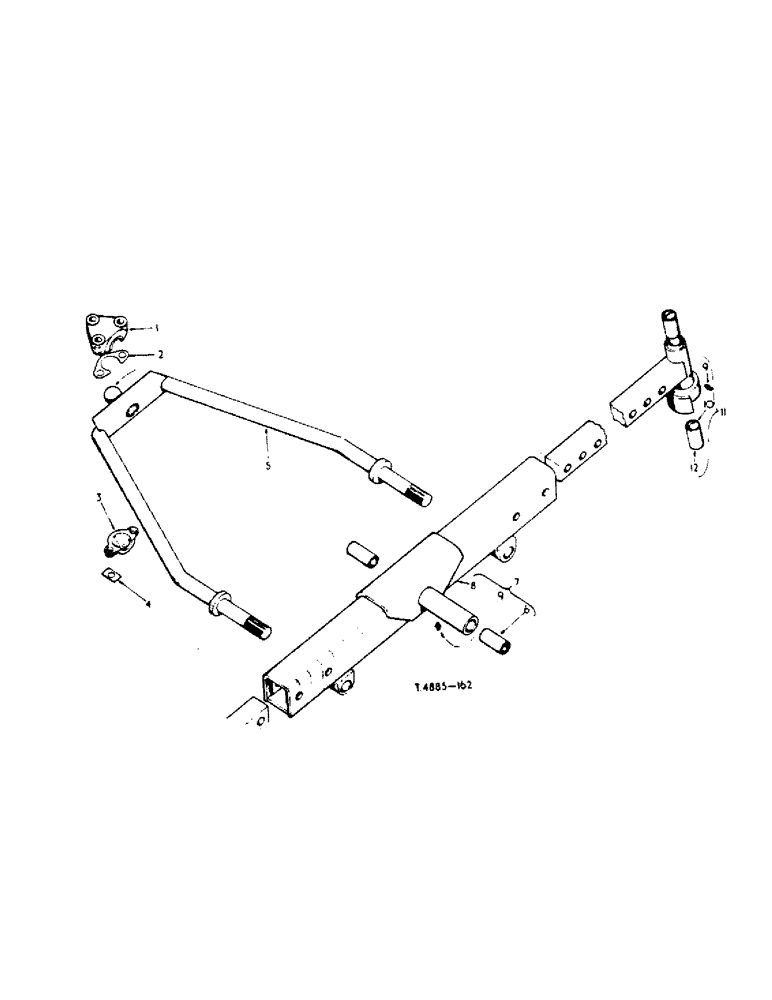

Запчасти Case IH 444 (6-21) - POWER STEERING AND FRONT AXLE ATTACHMENT, FRONT AXLE, EXTENSION AND STAY ROD (05) - STEERING

1

3043920R1

CUP

SOCKET, stay rod, ball

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

5/8" x 3" hex. hd.

2шт.

2

842389R1

SHIM

stay rod socket cap (As required)

1шт.

3

3109613R1

CAP

stay rod ball socket

1шт.

4

842391R1

PLATE

lock, ball socket

3шт.

5

3105073R91

BAR

ROD, cpte., stay

1шт.

427370

NUT

1-3/8" UNF hex.

2шт.

6

3043856R1

BUSHING

BUSH, pivot pin

2шт.

7

3043916R91

AXLE

w/two BUSH 3043856R1 and LUBRICATOR 109461 cpte., front

1шт.

8

AXLE, front $

1шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

3шт.

10

751942R1

BUSHING

BUSH, steering knuckle pivot

4шт.

11

3043921R92

EXTENSION

w/two BUSH 751942R1 and LUBRICATOR 109461 cpte., L.H. front axle (Illustrated)

1шт.

11

3043922R92

EXTENSION

w/two BUSH 751942R1 and LUBRICATOR 109461 cpte., R.H. front axle

1шт.

12

EXTENSION, front axle L.H., $ (Illusrated)

1шт.

12

EXTENSION, front axle R.H. $

1шт.

13

3071538R1

BALL

stay rod

2шт.
