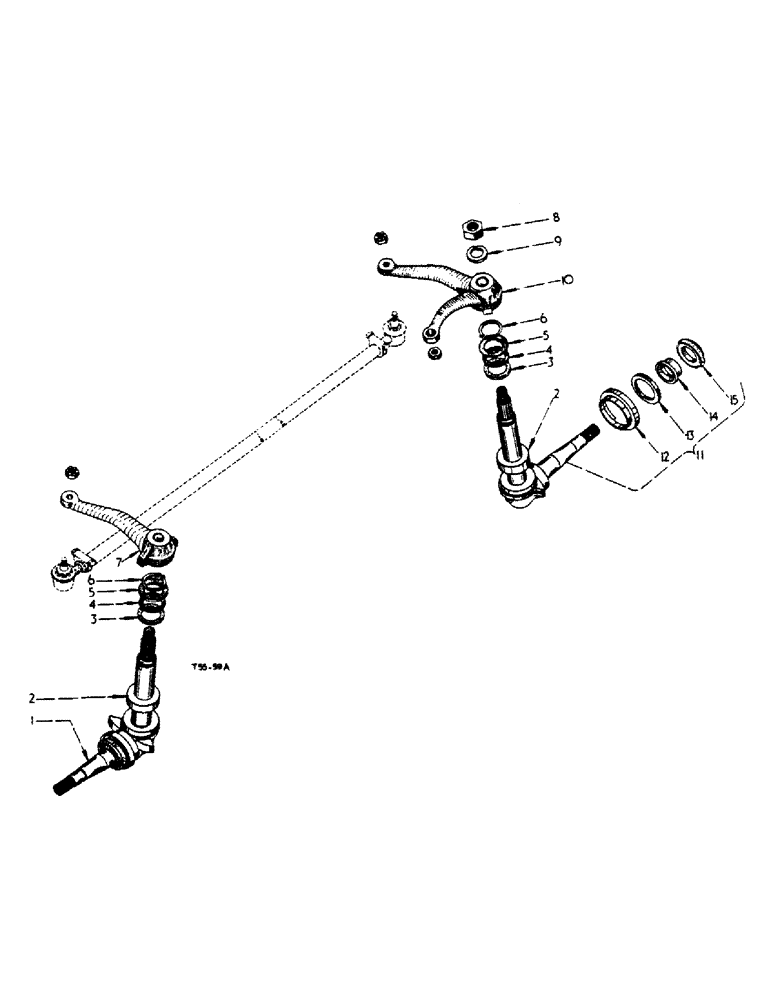

Запчасти Case IH 444 (6-20) - POWER STEERING AND FRONT AXLE ATTACHMENT, STEERING KNUCKLES AND TIE RODS (05) - STEERING

1

3043928R93

STEERING KNUCKLE

KNUCKLE, cpte., steering R.H. comprising:

1шт.

OIL SEAL 48539DA

1шт.

SHIELD 48541D

1шт.

SPACER 58270D

1шт.

WASHER 50259D

1шт.

2

392671R91

BEARING ASSY,1.639" ID x 2.869" OD x 0.8538"

thrust, steering knuckle

2шт.

3

3043931R1

WASHER

felt

1шт.

4

3043932R1

WASHER

steering knuckle pivot

1шт.

5

3043933R1

WASHER

steering knuckle pivot retaining

1шт.

6

3043934R1

CIRCLIP

(41mm shaft size)

1шт.

7

3043936R1

ARM

steering, R.H.

1шт.

8

3043937R1

NUT

1" UNF jam hex.

1шт.

9

121326

WASHER,1"

LOCK, 1"

1шт.

10

3043935R1

ARM

steering L.H.

1шт.

11

3043927R93

STEERING KNUCKLE

KNUCKLE, cpte., L.H. steering comprising:

1шт.

OIL SEAL 48539DA

1шт.

SHIELD 48541D

1шт.

SPACER 50270D

1шт.

WASHER 50259D

1шт.

12

48541D

SHIELD

front wheel, dust

1шт.

13

50259D

WASHER

WASHER, front wheel, felt

1шт.

14

50270D

SPACER

front wheel, bearing

1шт.

15

48539DA

PACKING RING

OIL SEAL, front wheel Opt.

1шт.

3042600R91

RH DOOR LOCK

OIL SEAL, front wheel Opt.

1шт.

704083R92

OIL SEAL

front wheel Opt.

1шт.
