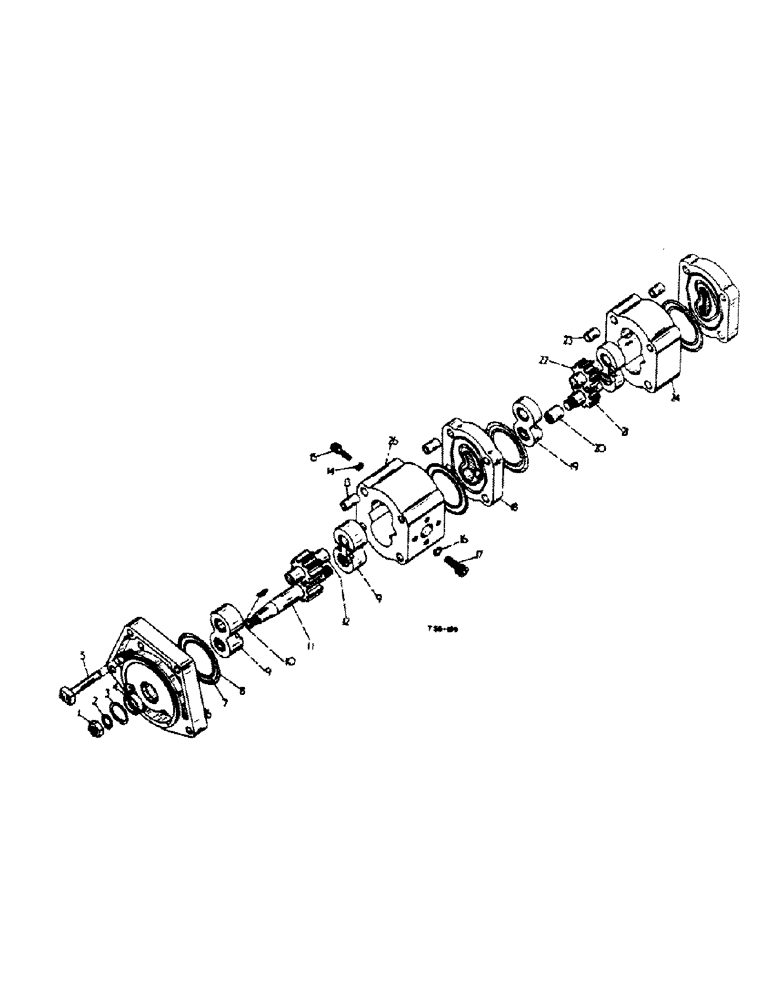

Запчасти Case IH 444 (6-19) - POWER STEERING AND FRONT AXLE ATTACHMENT, DUAL PUMP (05) - STEERING

3063911R93

PUMP

w/"O" RINGS, cpte., dual comprising:

1шт.

1

3044638R1

NUT

lock

1шт.

2

706069R1

LOCK WASHER

WASHER, lock

1шт.

3

706066R1

RETAINER

CIRCLIP

1шт.

4

OIL SEAL

1шт.

5

396404R1

BOLT

3/8" UNF x 5-1/2" sq. hd.

4шт.

6

708395R1

FLANGE

Opt.

1шт.

6

3044630R1

FLANGE

Opt.

1шт.

7

"O" RING

4шт.

8

"O" RING

4шт.

9

3066762R91

BEARING

2шт.

10

706067R1

KEY

1шт.

11

3064268R1

GEAR

drive (9 teeth)

1шт.

12

3064269R1

GEAR

driven (9 teeth)

1шт.

13

3064276R1

PIN

DOWEL

4шт.

14

706072R1

WASHER

spring

2шт.

15

3044642R1

SCREW

1/4" UNC

2шт.

16

706053R1

SPRING WASHER

spring

2шт.

17

706075R1

SCREW

5/16" x 3/4"

2шт.

18

3064270R1

PLATE

sandwich

1шт.

19

3066763R91

BEARING ASSY

2шт.

20

3064273R1

COUPLING, BREAK AWAY

COUPLING, muff

1шт.

21

3064271R1

GEAR

drive (9 teeth)

1шт.

22

3064272R1

GEAR

driven (9 teeth)

1шт.

23

3064277R1

PIN

DOWEL

4шт.

24

BODY Not supplied separately

1шт.

25

3064274R1

COVER

1шт.

26

BODY Not supplied separately

1шт.

214441

NUT

3/8" UNF

1шт.

3064282R1

WASHER

spring "O" RING (Inlet) "O" RING (Outlet)

4шт.

3064278R1

COVER

dust

1шт.

3064279R1

COVER

dust

1шт.

3064280R1

COVER

dust

1шт.

3070955R91

PACKAGE

PACK, seal, comprises items

1шт.

3070957R91

GEAR-SET

PACK, gear (rear pump)

1шт.

3070956R91

GEAR-SET

PACK, gear (front pump)

1шт.
