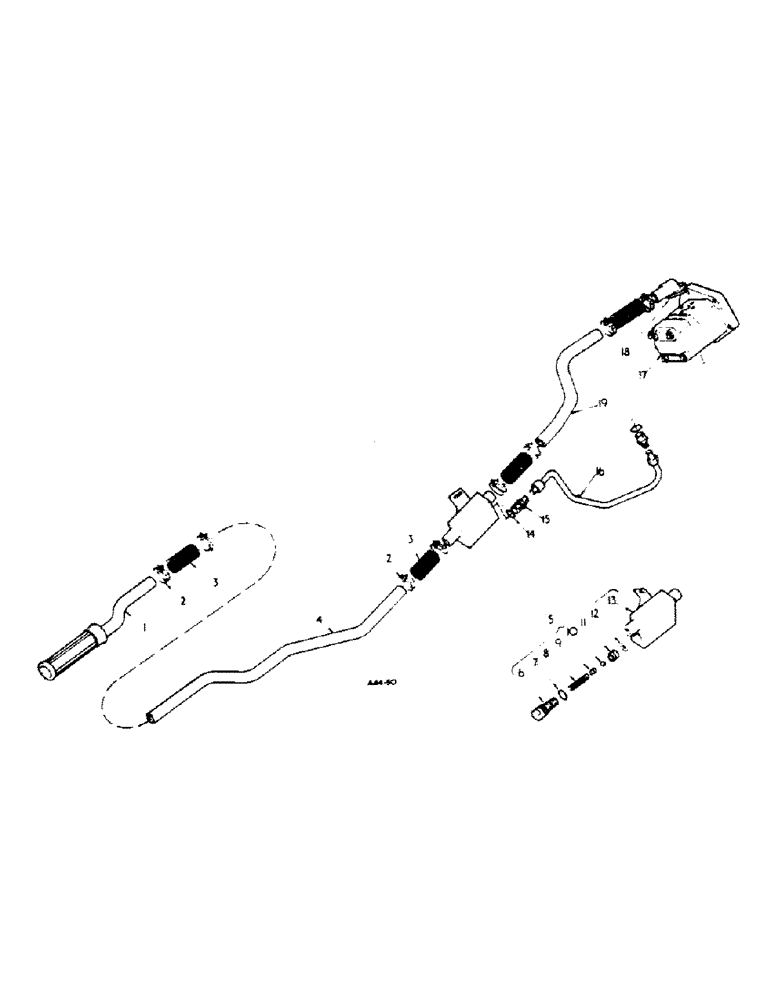

Запчасти Case IH 444 (6-18) - POWER STEERING AND FRONT AXLE ATTACHMENT, FLOW CONTROL VALVE AND PIPES (05) - STEERING

1

3062073R93

FILTER

cpte., suction

1шт.

2

3065216R91

CLIP

hose

8шт.

3

3106782R1

HOSE,1.00", SAE R30R2

Connecting, Suction, Filter 1.00", SAE R30R2

4шт.

4

3112829R1

PIPE

suction rear

1шт.

5

3112825R91

VALVE

BLOCK, cpte., relief valve assy comprising:

1шт.

6

3063917R1

HOUSING

relief valve spring

1шт.

7

704378R1

O-RING,0.139" Thk x 0.85" ID

"O" RING, 7/8" x 1-1/8" 8"

1шт.

8

3063916R1

SPRING

relief valve

1шт.

9

3063915R1

SEAT

RIDER, ball

1шт.

10

3072883R1

BALL,3/8" Dia

steel, . 3/8" Dia

1шт.

11

3063914R1

SEAT

relief valve

1шт.

12

751560R1

COPPER WASHER

9/32" x 23/32" x 16 ga.

1шт.

13

3112826R1

BODY

BLOCK, cpte., relief valve

1шт.

3046704R1

SCREW, ct. snk. int. hex.

2шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O RING

2шт.

15

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTOR

2шт.

16

3112823R1

PIPE

HOSE, pressure, Serial Range: pump-valve

1шт.

17

3063911R93

PUMP

cpte., hydraulic (dual) (See detail list)

1шт.

18

3063923R91

MANIFOLD

cpte., suction

1шт.

19

3112828R1

PIPE

front, suction

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

(For pipe clamp) Hex, 1/4"-20 x 1 1/2", G5

1шт.
