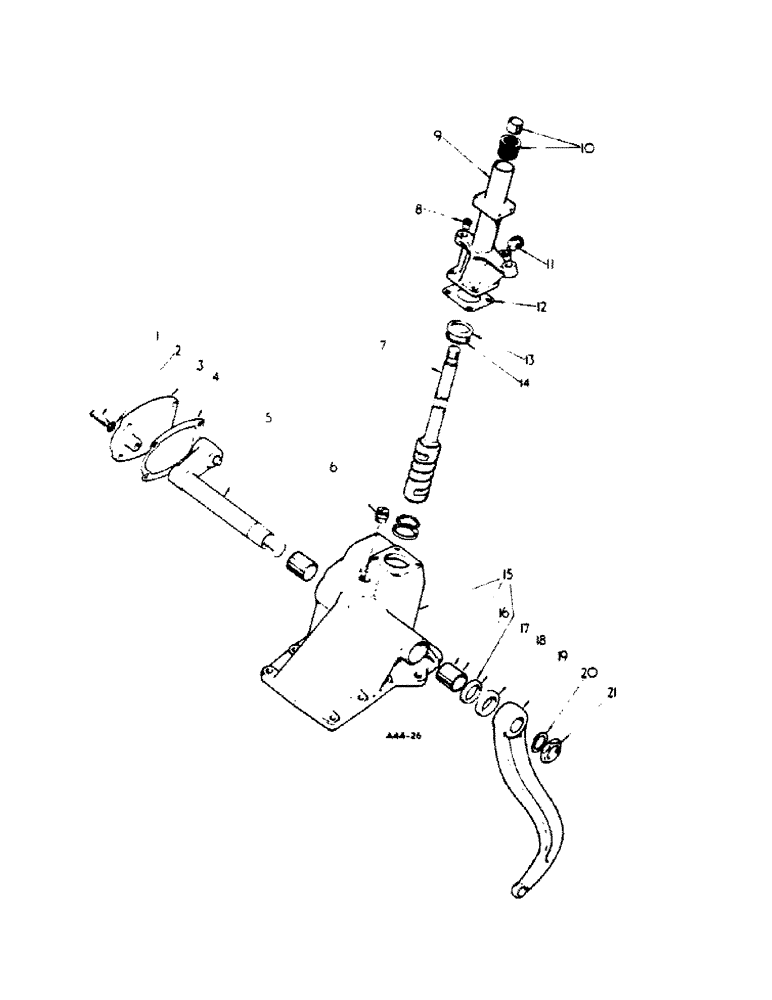

Запчасти Case IH 444 (4-16) - STEERING GEAR (05) - STEERING

3111955R91

BOX

GEAR, steering cpte., w/drop arm

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

hex. hd. 7/16" x 1-3/8

4шт.

NLS

NO LONGER SERVICED

PIN, 1/2" x 1-1/4"

2шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 11 x 1-1/2

1шт.

115550

LOCK WASHER,Int Tooth, 7/16"

WASHER, lock, 7/16"

4шт.

1

787163R1

SCREW

thrust

1шт.

2

3066262R1

LOCK NUT

lock

1шт.

3

787161R11

COVER

assy., side

1шт.

4

787162R1

GASKET

JOINT, side cover

1шт.

5

3070438R91

SHAFT

assy., rocker

1шт.

6

787168R1

PLUG

oil

1шт.

7

3112670R91

SHAFT

assy., cam and steering

1шт.

8

3070434R1

BUSHING

BUSH, nylon

2шт.

9

3112671R91

BRACKET

TUBE, assy., socket and bracket outer

1шт.

10

NOT APPLICABLE

1шт.

11

787168R1

PLUG

oil

1шт.

12

3044606R1

GASKET

JOINT

1шт.

708619R1

SHIM

.005" As required

1шт.

708623R1

SHIM

.010" As required

1шт.

708618R1

SHIM

.0024" As required

1шт.

13

708612R1

BEARING CUP,39.69mm ID x 54.84mm OD x 7mm W

CUP, ball

2шт.

14

3112672R91

CAGE

ball assy.

2шт.

15

3112669R91

BOX

assy., steering

1шт.

16

3040019R1

BUSHING

BUSH, steering box

2шт.

17

3066267R91

OIL SEAL

steering box oil

1шт.

18

3040029R1

RING

sealing

1шт.

19

3112673R91

ARM

drop

1шт.

20

88695

LOCK WASHER,1 1/8"

spring 1-1/8"

1шт.

21

219776

RING

1шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

4шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.
