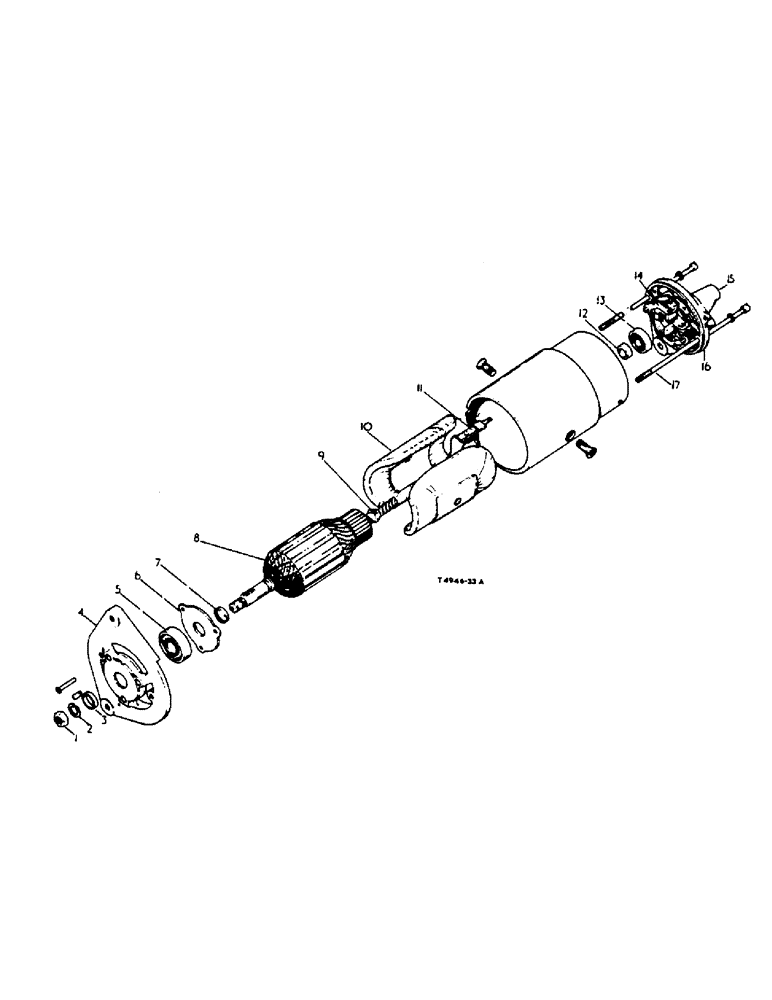

Запчасти Case IH 444 (6-84) - GENERATOR ATTACHMENT, VENTILATED (04) - ELECTRICAL SYSTEMS

3072953R91

GENERATOR

"GENERATOR, cpte." comprising:

1шт.

1

"NUT, shaft

1шт.

2

"WASHER, shakeproof 7/16

1шт.

3

"COLLAR, drive end bearing

1шт.

4

3073922R1

"BRACKET, drive end, w/KIT 3114206R91"

1шт.

5

3073921R91

BEARING

"BEARING, drive end"

1шт.

6

3114206R91

KIT

"KIT, bearing retention w/PLATE and three" RIVETS

1шт.

7

"RETAINER, bearing

1шт.

8

3073924R1

ARMATURE

1шт.

9

"RING, pressure

1шт.

10

3043338R1

"COILS, field set"

1шт.

11

3043339R91

TERMINAL CONNECTOR

"KIT, terminal Lucas"

1шт.

12

"COLLAR, commutator end bearing

1шт.

13

3073916R91

BEARING

ball commutator end

1шт.

14

HOLDER, brush (Order 3114205R91)

2шт.

15

3114203R1

COVER, Tacho blank off

1шт.

16

3073917R91

BRACKET

commutator w/KIT 3114205R91

1шт.

17

702001R1

BOLT

through fixing

1шт.

ref

Part No.

English

1шт.

3073915R91

BRUSH, COMMUTATOR

SET, brush

1шт.

3114202R91

SET, brush tension spring

1шт.

3043340R1

PARTS, sundry, comprises items

1шт.

3114205R91

KIT, C.E. bracket bearing retention comprises items

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
