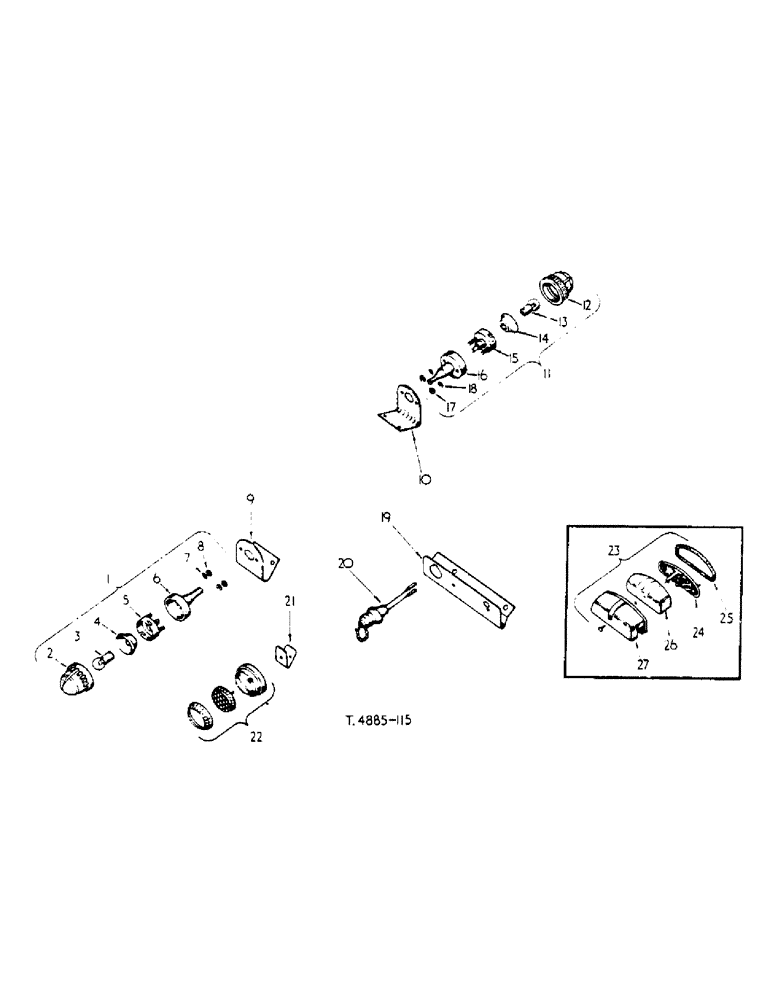

Запчасти Case IH 434 (3-20) - LAMPS, SIDE AND REAR, RTA LIGHTING ATTACHMENT, WITH REAR INDUSTRIAL FENDERS - ELECTRICAL (04) - ELECTRICAL SYSTEMS

1

3042099R91

INTERIOR LIGHT

LAMP, rear, 12 V - 6W, comprising: Ref. 2 - 8

2шт.

2

3062087R1

LENS

1шт.

3

3040096R1

NO LONGER SERVICED

BULB

1шт.

4

3041707R1

GASKET

1шт.

5

3041710R91

BODY

1шт.

6

3041709R1

GROMMET

1шт.

7

3041712R1

WASHER, shakeproof

2шт.

8

3041711R1

NUT

2шт.

9

3069332R1

BRACKET, rear lamp

2шт.

113956

WASHER,Slotted Rd Hd, 1/4"-20 x 5/8"

rd-hd-sltd., 1/4" x 5/8" mach

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

117959

GROMMET,5/16" ID x .719" x .062"

No. 3, 5/16"

2шт.

10

709234R1

BRACKET, side lamp

2шт.

109084

NUT,1/4"-20, G5

4шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

rd-hd-sltd., mach., 1/4" x 5/8"

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

11

709233R91

LAMP, side, 12V - 6W, comprising: Ref. 12 - 18

1шт.

12

3041708R1

LENS

1шт.

13

3040096R1

NO LONGER SERVICED

BULB

1шт.

14

3041707R1

GASKET

1шт.

15

3041710R91

BODY

1шт.

16

3041709R1

GROMMET

1шт.

17

3041711R1

NUT

2шт.

18

3041712R1

WASHER, shakeproof

2шт.

19

3071501R3

PLATE

BRACKET, reg., number plate lamp

1шт.

3068321R1

SPACER, .406 x .75 x .250

2шт.

20

705271R91

SOCKET/RECEPTACLE

SOCKET, power w/cable

1шт.

21

709443R1

BRACKET, reflector support

2шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

rd-hd-sltd., mach, No. 10, 1/2"

4шт.

110633

NUT,#10-24

4шт.

100497

WASHER, lock, No. 10

4шт.

22

709444R91

REFLECTOR

rear (red)

1шт.

23

705270R91

NO LONGER SERVICED

LAMP, reg. number plate, comprising

1шт.

705759R91

BASE

1шт.

705753R1

BODY

1шт.

705757R91

LAMP

BULB

1шт.

705754R1

GASKET

1шт.

705756R1

GROMMET

1шт.

705755R1

WINDOW

1шт.

705758R91

NO LONGER SERVICED

SET, sundry parts

1шт.

24

705759R91

BASE, assy.

1шт.

25

705754R1

GASKET, window sealing

1шт.

26

705755R1

WINDOW

1шт.

27

705753R1

BODY

1шт.

705757R91

LAMP

BULB, 12V - 4 W

1шт.

705756R1

GROMMET, cable

1шт.

705758R91

NO LONGER SERVICED

SET sundry parts

1шт.
