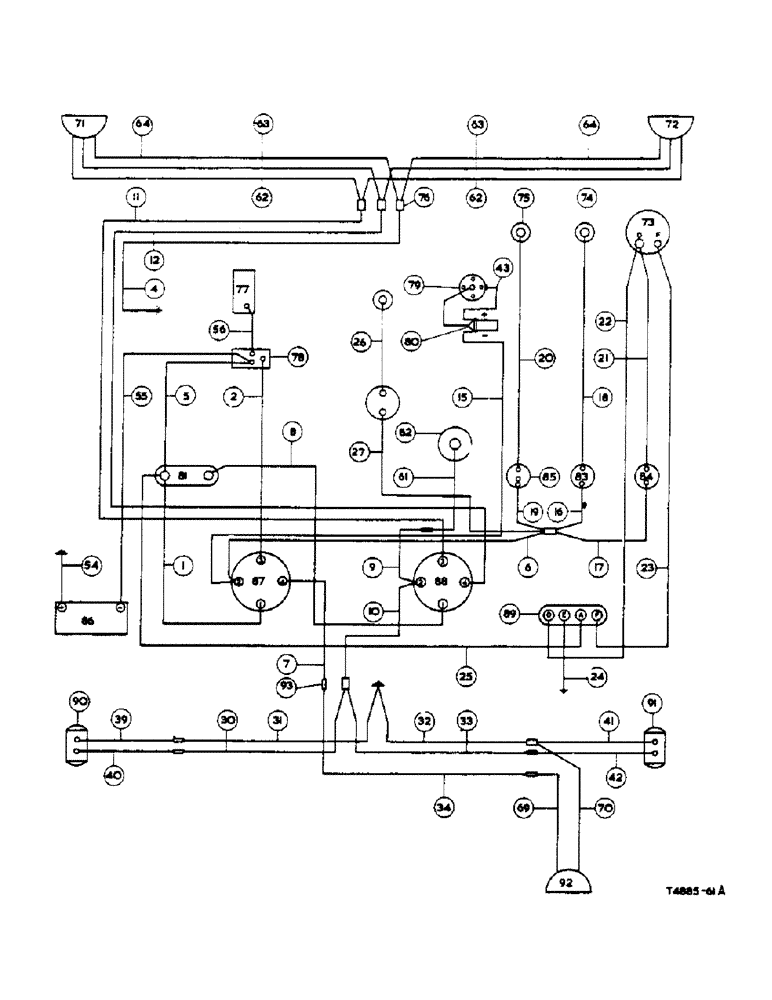

Запчасти Case IH 434 (3-15) - ELECTRICAL SYSTEM, PETROL - ELECTRICAL (04) - ELECTRICAL SYSTEMS

3071192R92

HARNESS

main cable, comprising:

1шт.

1

CABLE, key switch term. 1 to circuit breaker (White)

1шт.

2

CABLE, key switch term. 3 to starter sol. term. (Red/Black)

1шт.

3

NOT USED

1шт.

4

CABLE, front conns. to earth (Black)

1шт.

5

CABLE, starter sol. term to circuit breaker (Brown/Red)

1шт.

6

CABLE, key switch term 2 to warning lights conns. (Brown/White)

1шт.

7

CABLE, key switch term 4 to rear conns. (Red/White)

1шт.

8

CABLE, light switch term 1 to circuit breaker (Green)

1шт.

9

CABLE, light switch term. 2 to panel lamp conns. (Blue/Green)

1шт.

10

CABLE, light switch term. 2 to rear conns. (Red)

1шт.

11

CABLE, light switch term. 3 to front conns. (Blue/Red)

1шт.

12

CABLE, light switch term. 4 to front conns. (Blue/Yellow)

1шт.

13

NOT USED

1шт.

14

NOT USED

1шт.

15

CABLE, coil S.W. term to key switch term 2 (Brown/Green)

1шт.

16

CABLE, oil warning lamp to warning lights conns. (Green)

1шт.

17

CABLE, ign warning lamp to warning lights conns. (Green)

1шт.

18

CABLE, oil warning lamp to oil press. switch (Green/Yellow)

1шт.

19

CABLE, warning lights conn to speed amp. warning light (Green)

1шт.

20

CABLE, speed amp. pressure switch to speed amp. warning light (Green/Brown)

1шт.

21

CABLE, ign. warning lamp to generator "D" term (Yellow)

1шт.

22

CABLE, regulation "D" term to generator "D" term (Yellow)

1шт.

23

CABLE, regulation "F" term to generator "F" term (Yellow/Green)

1шт.

24

CABLE, regulator "E" term to earth (Black)

1шт.

25

CABLE, regulator "A" term to circuit breaker (Brown/Red)

1шт.

26

CABLE, heat indicator to temp. trans. (Green/Blue)

1шт.

27

CABLE, warning lt. conn. to heat ind. (Green)

1шт.

28

NOT USED

1шт.

29

NOT USED

1шт.

3071053R91

CABLE, assy., comprising:

1шт.

30

CABLE, rear conns. to L.H. fender conns. (Red)

1шт.

31

CABLE, earth to L.H. fender conns. (Black)

1шт.

705902R91

CABLE

assy., comprising:

1шт.

32

CABLE, earth to R.H. fender conns. (Black)

1шт.

33

CABLE, rear conns. to R.H. fender conns. (Red)

1шт.

34

CABLE, rear conns. R.H. fender conns. (Green)

1шт.

35

NOT USED

1шт.

36

NOT USED

1шт.

37

NOT USED

1шт.

38

NOT USED

1шт.

CABLE, assy., pre-wired 434P/1362 up

1шт.

CABLE, assy., w/ELBOW up to 434P/1361, comprising:

1шт.

39

CABLE, L.H. fender conns. to side and tail lamp L.H. (Black)

1шт.

40

CABLE, L.H. fender conns. to side and tail lamp L.H. (Red)

1шт.

CABLE, assy., pre-wired 434P/1362 up

1шт.

CABLE, assy., w/ ELBOW up to 434P/1361, comprising:

1шт.

41

CABLE, R.H. fender conns. to side and tail lamp R.H. (Black)

1шт.

42

CABLE, R.H. fender conns. to side and tail lamp R.H. (Red)

1шт.

43

CABLE, coil, CB term to distributor (White/Black) (See Ignition- Engine)

1шт.

44

NOT USED

1шт.

45

NOT USED

1шт.

46

NOT USED

1шт.

47

NOT USED

1шт.

48

NOT USED

1шт.

49

NOT USED

1шт.

50

NOT USED

1шт.

51

NOT USED

1шт.

52

NOT USED

1шт.

53

NOT USED

1шт.

54

371051R91

CABLE, Serial Range: battery-earth

1шт.

55

3071193R91

CABLE, battery to starter solenoid

1шт.

56

3071191R91

CABLE, starter to starter solenoid

1шт.

57

NOT USED

1шт.

58

NOT USED

1шт.

59

NOT USED

1шт.

60

NOT USED

1шт.

61

CABLE, panel lamp conn. to panel lamp (Black)

1шт.

CABLE, headlamps assy., comprising:

1шт.

62

CABLE, headlamp 'main' to front conns. (Blue/Red)

1шт.

63

CABLE, headlamp 'dip' to front conns. (Blue/Yellow)

1шт.

64

CABLE, headlamp 'earth' to front conns. (Black)

1шт.

65

NOT USED

1шт.

66

NOT USED

1шт.

67

NOT USED

1шт.

68

NOT USED

1шт.

CABLE, plough lamp assy., comprising:

1шт.

69

CABLE, R.H. fender conns. to plough lamp (Red)

1шт.

70

CABLE, R.H. fender conns. to plough lamp (Black)

1шт.

71

HEADLAMP, w/Cables L.H. (see detail list), components

1шт.

72

HEADLAMP, w/Cables R.H. (see detail list), components

1шт.

73

GENERATOR (see detail list), components

1шт.

74

SWITCH, oil pressure, components

1шт.

See ELECTRICAL - INSTRUMENTS (Petrol)

1шт.

75

SWITCH, speed amp. pressure (see Speed Amp. Attach), components

1шт.

76

CONNECTOR, two-way w/Harness, components (end of harness)

6шт.

77

MOTOR, starter (see detail list), components

1шт.

78

SWITCH, starter solenoid, components

1шт.

See ELECTRICAL - INSTRUMENTS (Petrol)

1шт.

79

DISTRIBUTOR (engine) (see detail list), components

1шт.

80

COIL, ignition (engine) (see Ignition), components

1шт.

81

BREAKER, circuit, components

1шт.

See ELECTRICAL - INSTRUMENTS (Petrol)

1шт.

82

LAMP, panel, components

1шт.

See ELECTRICAL - INSTRUMENTS (Petrol)

1шт.

83

LAMP, oil pressure warning, components

1шт.

See ELECTRICAL - INSTRUMENTS (Petrol)

1шт.

84

LAMP, ignition warning (red), components

1шт.

See ELECTRICAL - INSTRUMENTS (Petrol)

1шт.

85

LIGHT, speed amp warning (see Amp. Attach.), components

1шт.

86

BATTERY, 12 volt, components

1шт.

87

SWITCH, igition, components

1шт.

See ELECTRICAL - INSTRUMENTS (Petrol)

1шт.

88

SWITCH, light, components

1шт.

See ELECTRICAL - INSTRUMENTS (Petrol)

1шт.

89

REGULATOR, 12 V (see Regulator), components

1шт.

90

LAMP, side and tail L.H. (see Side & Rear Lamp), components

1шт.

91

LAMP, side and tail R.H. (see Side & Rear Lamp), components

1шт.

92

LAMP, plough, (see detail list) (I.H. Red), components

1шт.

LAMP, plough, (see detail list) (Federal Yellow) optional, components

1шт.

93

CONNECTOR, one way w/ Harness, components

5шт.

3040886R91

CONDUIT, cable front, components

1шт.

3040887R91

CONDUIT, cable L.H., components

1шт.

3067821R1

CLIP, cable, components

3шт.

708113R1

CLIP

cable, components

4шт.

708114R1

CLIP, cable, components

5шт.

708115R1

PLATE ASSY.

CLIP, cable, components

11шт.

708117R1

NO LONGER SERVICED

CLIP, cable, components

4шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Components Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

Components 1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , w/clip on Volt. reg. support plate, components 1/4"

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

hex-hd., 1/4" x 1/2", components

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

Components 1/4"-20, G5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (w/Clip on Instrument Shroud), components 1/4"

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Components Hex, 3/8"-16 x 1", G5

1шт.

102635

NUT,3/8"-16, G5

Components 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , w/Clip on L.H. fender, Components 3/8"

1шт.

112734

GROMMET, 3/8" (fender), components 3/8" ID x 11/16" x .062"

2шт.
