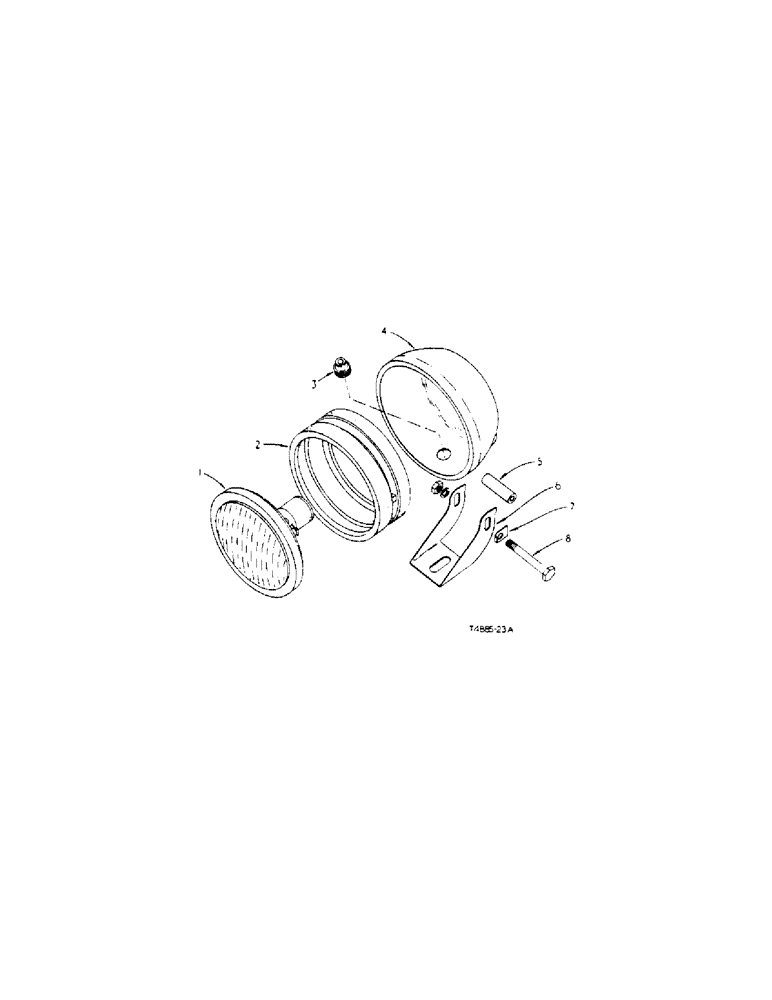

Запчасти Case IH 434 (3-14) - HEADLAMP ASSEMBLY, 3072562R91, 3070494R91 - ELECTRICAL (04) - ELECTRICAL SYSTEMS

3072562R91

HEADLIGHT

HEADLAMP, assy., opt.

2шт.

3070494R91

HEADLAMP

assy., opt., comprising: Ref. 1 - 8

2шт.

1

3072947R91

HEADLIGHT

LIGHT, assy., sealed beam, pre-focus unit, 12V - 40W, 2 Filament, 3 Contact

1шт.

2

3071439R1

MOUNT, light unit

1шт.

3

3071444R1

GROMMET

1шт.

4

3071438R91

BODY, assy.

1шт.

3071449R1

BODY

1шт.

3071450R1

PEDESTAL

1шт.

5

3071442R1

SPACER

1шт.

6

3071441R1

BRACKET, mtg.

1шт.

7

3071443R1

RETAINER, bolt

1шт.

8

3071445R1

BOLT, pivot

1шт.

3071446R1

NUT

1шт.

3071447R1

WASHER, plain

1шт.

3071448R1

WASHER, shakeproof

1шт.

3071440R91

CABLE, assy.

1шт.

3064391R1

WASHER, cable retaining

1шт.
