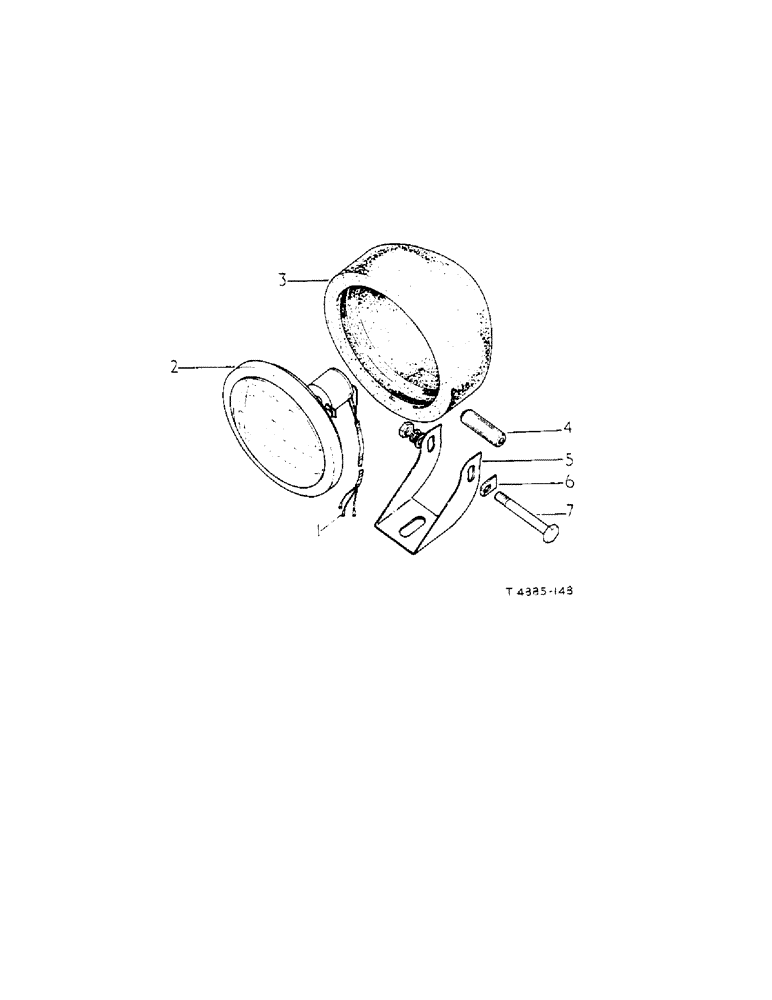

Запчасти Case IH 434 (3-14[1]) - HEADLAMP ASSEMBLY, 3072562R91 - ELECTRICAL (04) - ELECTRICAL SYSTEMS

3072562R91

HEADLIGHT

HEADLAMP, assy., comprising: Ref. 1 - 7

1шт.

1

3072949R91

HARNESS, cpte., w/Connector

1шт.

2

3072947R91

HEADLIGHT

UNIT, sealed beam

1шт.

3

3072943R1

SHROUD

rubber

1шт.

4

3072946R1

TUBE

support

1шт.

5

3072944R1

BRACKET

1шт.

6

3072945R1

WASHER

tab

1шт.

7

181579

SCREW,Hex, 1/4" - 28 x 2", Gr 5

BOLT, hex-hd., 1/4" UNF x 2"

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

hex., 1/4" UNF

1шт.

16559R1

WASHER,1/4"

17/64" x 5/8" x .03

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Petrol) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

120377

NUT,3/8" - 16, Gr 5

Petrol 3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Petrol 3/8"

2шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

BOLT, hex-hd., 3/8" x 1-3/8" Diesel

2шт.

120377

NUT,3/8" - 16, Gr 5

Diesel 3/8"-16, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Diesel 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER Diesel

2шт.

3070499R1

WASHER

Diesel

2шт.
