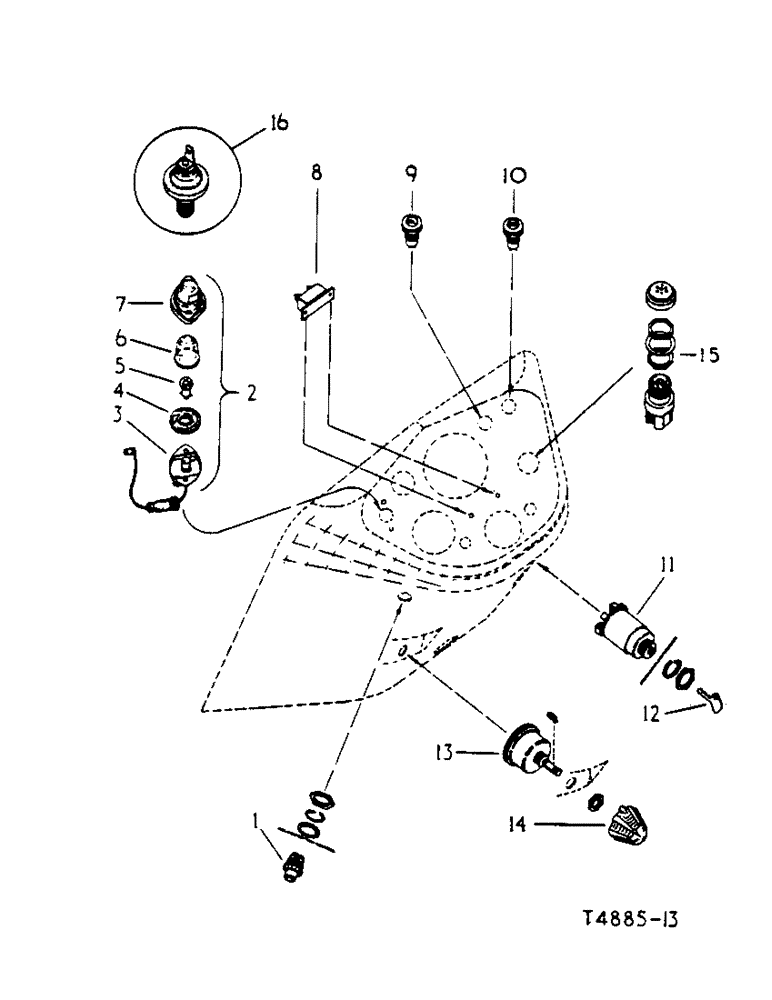

Запчасти Case IH 434 (3-13) - ELECTRICAL INSTRUMENTS, DIESEL - ELECTRICAL (04) - ELECTRICAL SYSTEMS

1

705266R91

HORN

BUTTON, horn

1шт.

2

894623H1

INTERIOR LIGHT

LAMP, cpte., panel (Fed. Yellow), comprising: Ref. 3 - 7

1шт.

2

3063835R91

LIGHT ASSY.

LAMP, cpte., panel (I.H. Red), comprising: Ref. 3 - 7

1шт.

3

751462R91

BODY and CONTACT, assy.

1шт.

3041398R1

TERMINAL, flag

1шт.

4

751468R1

WASHER, sealing

1шт.

5

751467R1

BULB

12 V - 6 W single contact

1шт.

6

751466R1

LENS

glass

1шт.

7

751465R91

SHIELD, assy.

1шт.

8

3062302R91

BREAKER

circuit

1шт.

134532

DISC

NUT, hex., No. 6

2шт.

121839

SCREW,Sl Rnd Hd, #6 - 32 x 5/16"

rd-hd., No. 6 x 5/16" (Cad or Zinc pltd.)

2шт.

446120

WASHER,#6

5/16" x 5/32" x 20 ga.

2шт.

9

894313H1

LAMP

oil pressure warning (Green)

1шт.

894350H1

BULB

1шт.

10

894348H1

WARNING LIGHT

LAMP, generator warning (Red)

1шт.

11

3048227R92

IGNITION SWITCH

SWITCH, key

1шт.

12

3069876R1

KEY

starter switch

2шт.

13

3107344R91

LIGHT SWITCH

SWITCH, light 4 position (Export)

1шт.

13

709489R92

LIGHT SWITCH

SWITCH, light 5 position

1шт.

3042361R1

NUT, friction

1шт.

3042365R1

NUT, switch retaining

1шт.

3042364R1

SCREW

1шт.

3042360R1

WASHER, lock

1шт.

3042362R1

WASHER

1шт.

3042363R1

WASHER

1шт.

14

3042366R1

KNOB

1шт.

15

3042230R91

RESISTOR

indicator w/COIL 3064737R1 optional

1шт.

3064793R91

INDICATOR

RESISTOR, indicator w/ELEMENT 3064807R1 optional

1шт.

3064737R1

RESISTOR

COIL, resistor

1шт.

3064807R1

ELEMENT

1шт.

16

3041100R91

PRESSURE SWITCH

SWITCH, oil pressure opt.

1шт.

3060472R91

SWITCH ASSY

SWITCH, oil pressure opt.

1шт.

3070493R1

GROMMET

1шт.
