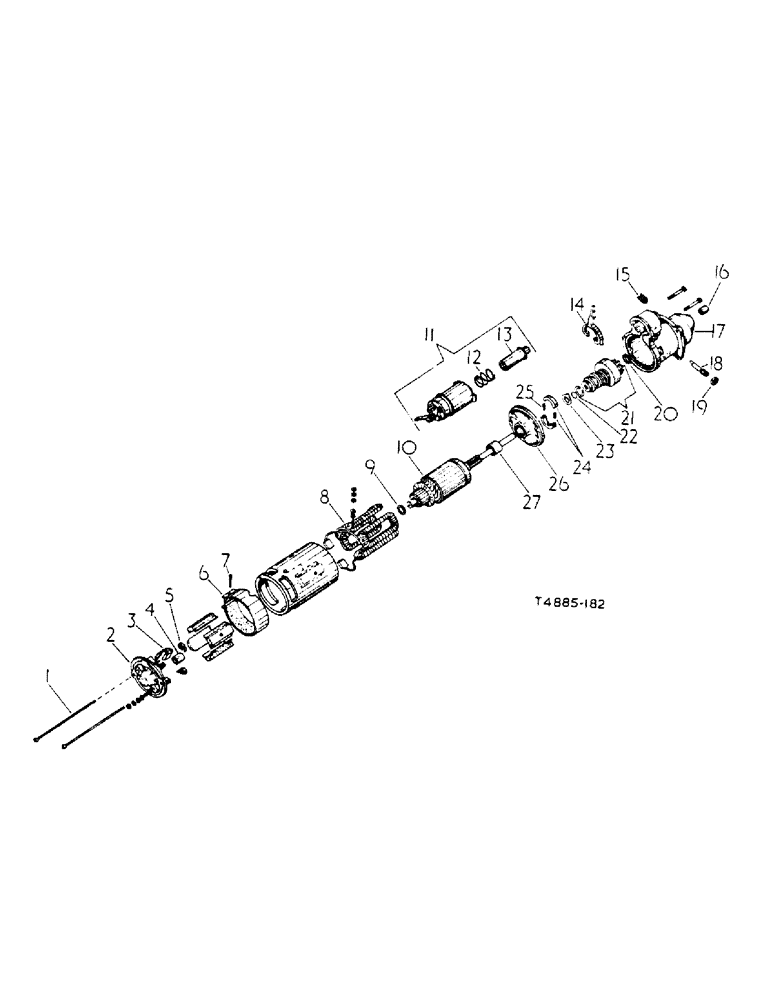

Запчасти Case IH 434 (3-12A) - STARTER MOTOR, DIESEL, 3046890R92 - ELECTRICAL (04) - ELECTRICAL SYSTEMS

3046890R92

STARTER MOTOR

MOTOR, starter (Lucas 26288), comprising: Ref. 1 - 27

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex-hd., 3/8" x 1-1/8"

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

3072904R1

BOLT

through (supplied as a pair)

2шт.

2

3111024R91

BRACKET

or FRAME w/BUSH 3111025R1 and KIT 3043618R91, commutator end

1шт.

3

705833R91

BRUSH, COMMUTATOR

BRUSH, set

1шт.

4

3111025R1

BUSHING

BUSH

1шт.

5

3043618R91

VALVE SPRING

KIT, brush tension spring

1шт.

6

3062342R91

BAND cover w/NUT 705832R1 and SCREW 3106686R1

1шт.

7

3106686R1

SCREW

cover band fixing

1шт.

705832R1

NUT

cover band fixing screw

1шт.

8

3062381R91

COIL

field (set)

1шт.

9

3111033R1

WASHER

commutator thrust

1шт.

10

3111039R91

ARMATURE

1шт.

11

3111040R91

SOLENOID SWITCH

SOLENOID, starter, comprising: Ref. 12 and 13

1шт.

12

3111042R1

SPRING

plunger

1шт.

13

3111041R91

KIT

BASE, assy., w/spindle and contact plate

1шт.

3111043R1

NUT

solenoid fixing

1шт.

14

3111027R1

LEVER

1шт.

15

3111032R1

GROMMET fixing bracket

1шт.

16

3111031R1

HALF-BUSHING

BUSH, bearing

1шт.

17

3111030R91

BRACKET

or FRAME w/BUSH 3111031R1

1шт.

18

3111026R1

PIVOT PIN

PIN pivot

1шт.

19

3062348R1

NUT

pivot bolt

1шт.

20

3111037R1

NO LONGER SERVICED

COLLAR thrust

1шт.

21

3111029R91

DRIVE

roller clutch

1шт.

22

3111036R1

RING

retaining

1шт.

23

3111038R1

WASHER, thrust, commutator end

1шт.

24

3062375R91

SHOE (ASSY)

SHOE cpte., brake w/two SPRING 3062376R1

1шт.

25

3062376R1

VALVE SPRING

SPRING, brake shoe

2шт.

26

3111034R91

BRACKET

or FRAME, brake w/BUSH 3111035R1

1шт.

27

3111035R1

HALF-BUSHING

BUSH, brake bracket

1шт.

705860R91

PACKAGE

SET sundry parts

1шт.

3062382R1

TERMINAL, main

1шт.
