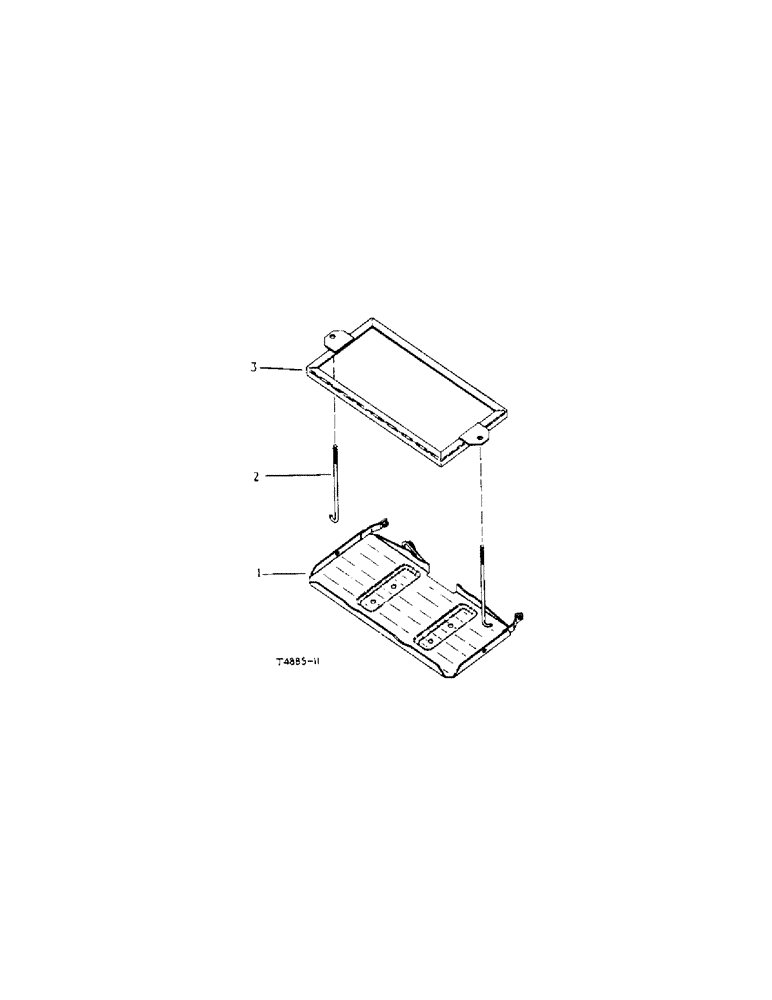

Запчасти Case IH 434 (3-12) - BATTERY CARRIER - ELECTRICAL (04) - ELECTRICAL SYSTEMS

1

3070482R11

CARRIER, cpte., battery

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

hex-hd., 3/8" x 1-1/2"

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex-hd., 3/8" x 3/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

3063696R1

BOLT

hold down, battery

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

3066559R91

RETAINER

cpte., battery. (Diesel)

1шт.

3

3069991R91

RETAINER, cpte., bearing (Petro)

1шт.
