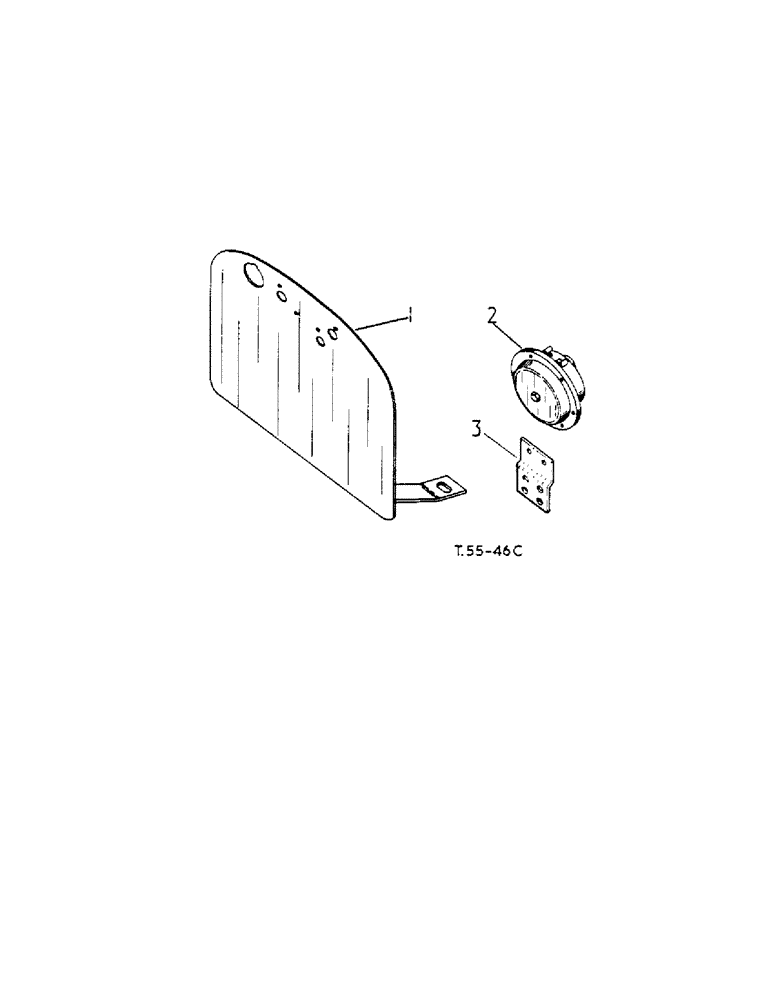

Запчасти Case IH 434 (3-12[1]) - REGISTRATION PLATE AND HORN - ELECTRICAL (04) - ELECTRICAL SYSTEMS

1

705546R31

PLATE

cpte., reg. number, Serial Range: up-434/15119

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex-hd., 3/8" x up to 434/15119

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Up to 434/15119 3/8"

1шт.

2

700876R94

HORN

electric, 12 V

1шт.

179794

BOLT,Hex, 1/4" - 20 x 11/16"

hex-hd., 1/4" x 11/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

3070789R2

BRACKET

horn

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32" x 13/16" x .051 thick

2шт.
