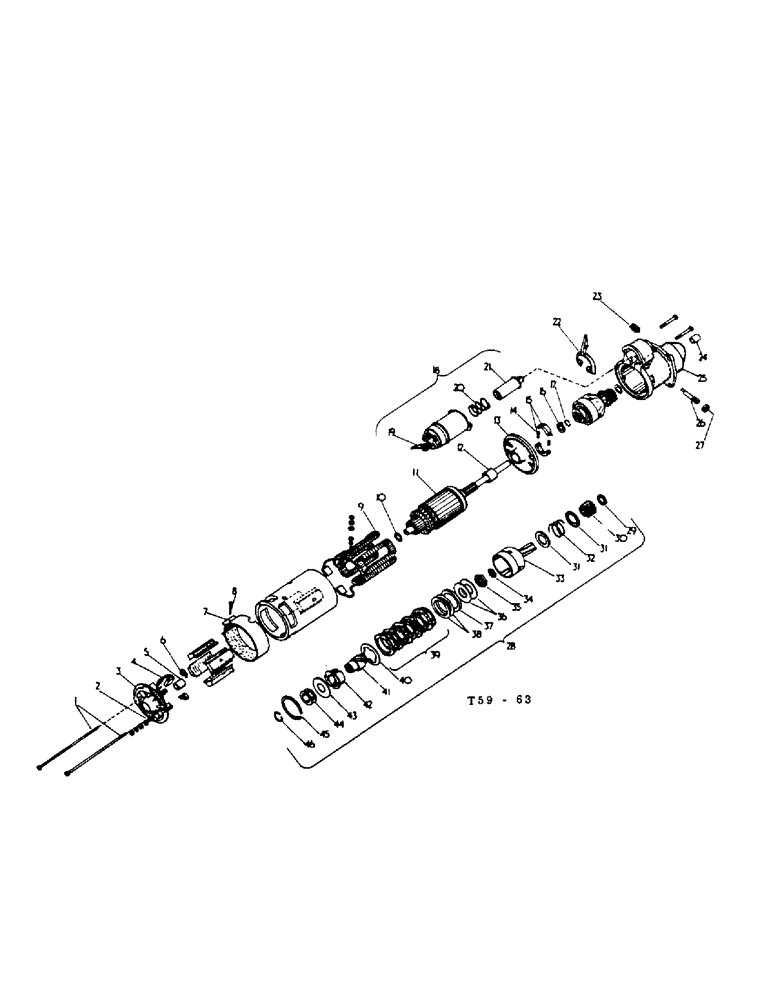

Запчасти Case IH 434 (3-10) - STARTER MOTOR, DIESEL, 3046890R91 - ELECTRICAL (04) - ELECTRICAL SYSTEMS

3046890R91

STARTER MOTOR

MOTOR, starter (26193-B), order package 3110084R91, consists of: Ref. 1 - 46

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex-hd., 3/8" x 1-1/8"

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

3072904R1

BOLT

through (Supplied as a pair)

2шт.

2

3045658R1

TERMINAL

1шт.

3

3062340R91

BRACKET

or FRAME, w/TERMINAL 3045658R1, BUSH 702006R91 and SPRING 3043618R91 commutator end

1шт.

4

705833R91

BRUSH, COMMUTATOR

BRUSH, set

1шт.

5

702006R91

BUSHING

BUSH

1шт.

6

3043618R91

VALVE SPRING

SPRING, brush tension (set)

1шт.

7

3062342R91

BAND, cover w/NUT 705832R1 & SCREW 3106686R1

1шт.

8

3106686R1

SCREW

cover band fixing

1шт.

705832R1

NUT

cover band fixing screw

1шт.

9

3062381R91

COIL

field (set)

1шт.

10

3062372R1

WASHER

commutator thrust

1шт.

11

3047395R91

ARMATURE

1шт.

12

3047394R1

BUSHING

BUSH, brake bracket

1шт.

13

3062373R1

BRACKET, or FRAME, brake w/BUSH 3047394R1

1шт.

14

3062376R1

VALVE SPRING

SPRING, brake shoe

2шт.

15

3062375R91

SHOE (ASSY)

SHOE and SPRING 3062376R1 brake

1шт.

16

3062377R1

WASHER, driving brake

1шт.

17

3062378R1

RING, retaining

1шт.

18

3062380R91

SWITCH

SOLENOID, starter, comprising: Ref. 19 - 21

1шт.

19

3062390R1

CONNECTOR, ELEC

CONNECTOR, Serial Range: terminal-starter

1шт.

20

3062389R1

SPRING, plunger

1шт.

21

3062388R1

PLUNGER

1шт.

3062386R1

NUT, terminal

4шт.

705829R1

SPRING WASHER

terminal nut

4шт.

3062387R1

SCREW, terminal

1шт.

22

3062349R1

LEVER

1шт.

23

3062371R1

GROMMET, fixing bracket

1шт.

24

3047392R1

BUSHING

BUSH, bearing

1шт.

25

3062369R91

FUNNEL

BRACKET or FRAME w/BUSH 3047392R1

1шт.

26

3062347R1

BOLT

pivot

1шт.

27

3062348R1

NUT

pivot bolt

1шт.

28

3062350R91

DRIVE ASSY.

DRIVE, comprising: Ref. 29 - 46

1шт.

29

3062351R1

RING and RIVET, retaining pinion

1шт.

30

3071037R1

PINION

engaging

1шт.

On orders for pinion 3071037R91, furnish R1 together with two 3071039R1 cups and 3062362R91 spring.

1шт.

31

3071039R1

SPRING CUP

CUP, return spring

2шт.

32

3062362R1

VALVE SPRING

SPRING, pinion return

1шт.

33

3062363R91

BARREL and SLEEVE

1шт.

3062364R1

BUSHING

BUSH, sleeve bearing

2шт.

34

3062368R1

COLLAR

thrust

1шт.

35

705845R1

NUT, pressure plate locking

1шт.

36

3045665R1

PLATE, pressure

2шт.

37

3045664R1

RING, rear clutch plates

1шт.

38

705848R91

SHIM

PACKAGE, service, shims

1шт.

39

705846R91

PLATE

CLUTCH PLATES, set

1шт.

40

3045654R1

PLATE, inner race support

1шт.

41

3062367R1

SLEEVE and BUSH, driving

1шт.

42

3045653R91

CLUTCH, w/PLATE 3045654R1 (set) inner race

1шт.

43

3045662R1

PLATE, clutch plate retaining

1шт.

44

3062366R1

BUSH, operating sleeve

2шт.

45

3045661R1

CIRCLIP, clutch retaining

1шт.

46

3062365R1

RING, operating bush retaining

1шт.

705860R91

PACKAGE

SET sundry parts

1шт.

3062382R1

TERMINAL, main

1шт.

3110084R91

X

PACKAGE starter field service, comprising parts listed below

1шт.

3046890R92

STARTER MOTOR

MOTOR

1шт.

3110086R1

SLEEVE

1шт.

3110085R1

TERMINAL CONNECTOR

TERMINAL

1шт.
