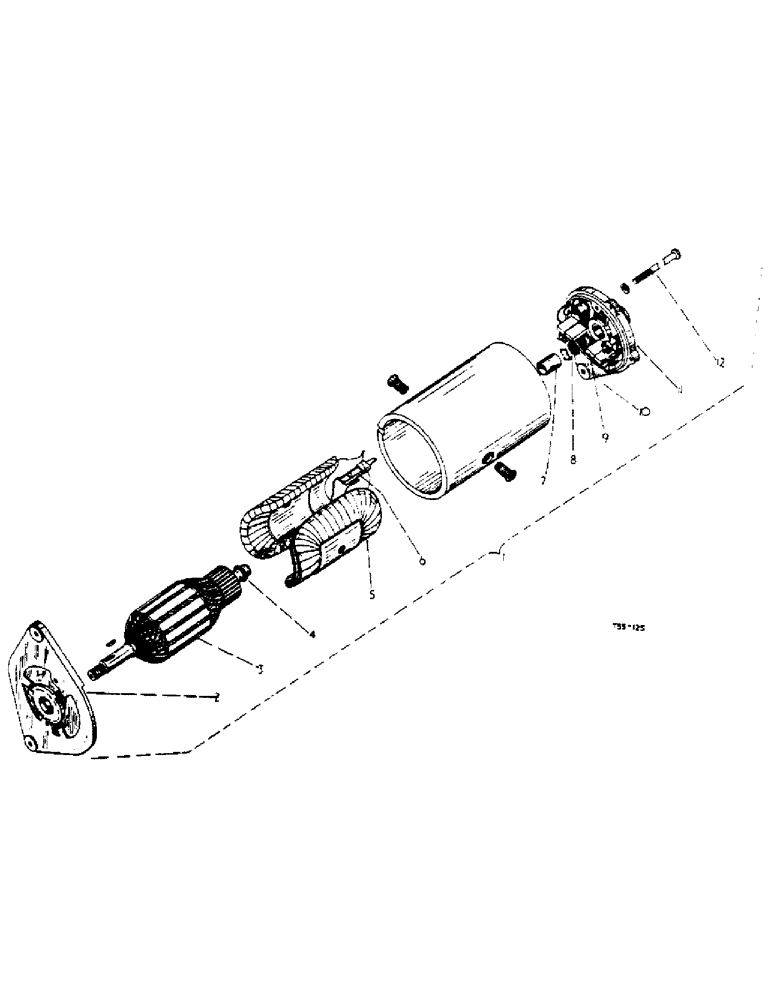

Запчасти Case IH 434 (3-09) - GENERATOR, NON- VENTILATED GENERATOR ATTACHMENT - ELECTRICAL (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
3049871R91
GENERATOR
cpte., 12 V, comprising: Ref. 2 - 12
1шт.
2
3064137R92
BRACKET
drive end, circlipped assy., comprising
1шт.
3106542R1
CIRCLIP
1шт.
3106545R1
O-RING
1шт.
3106541R1
PLATE ASSY.
PLATE, bearing
1шт.
3106543R1
WASHER
felt retaining
1шт.
3106544R1
WASHER
felt
1шт.
2
3064137R91
BRACKET
drive end. assy., rivetted (ORDER 3064137R92)
1шт.
3043333R1
PLATE
bearing
1шт.
Used in Generators w/ Rivetted drive end bracket
1шт.
706480R1
WASHER
1шт.
Used in Generators w/ Rivetted drive end bracket
1шт.
3
3064138R91
ARMATURE
assy.
1шт.
4
706483R1
COLLAR CLAMP
WASHER, thrust
1шт.
5
3043338R91
COIL
S, field, set w/TERMINALS 3106546R91
1шт.
6
3106546R91
TERMINALS, lucas, set
1шт.
Used in Generators w/ Circlipped drive end bracket
1шт.
6
3043339R91
TERMINAL CONNECTOR
TERMINALS, lucas, set
1шт.
Used in Generators w/ Rivetted drive end bracket
1шт.
7
700474R1
BUSHING
BUSH, commutator end
1шт.
8
3043329R91
OILER
1шт.
9
3043327R91
BRUSH, COMMUTATOR
BRUSH, set
1шт.
10
3043330R91
SPRING
brush tension set
1шт.
11
3064136R91
BRACKET
assy., commutator end, comprising
1шт.
700474R1
BUSHING
BUSH
1шт.
3043329R91
OILER
1шт.
706475R1
PLUG
1шт.
3043330R91
SPRING
1шт.
12
702001R1
BOLT
through, 1/4" B.S.P.
1шт.
700468R1
BEARING
drive end
1шт.
3043337R1
CLAMP
COLLAR, drive end bearing
1шт.
3043334R1
NUT
shaft
1шт.
3043335R1
WASHER, shakeproof, 7/16"
1шт.
706475R1
PLUG, oil
1шт.
706481R1
RETAINER
bearing ring
1шт.
3043340R91
PACKAGE
SET sundry parts
1шт.
17923R1
BOLT
hex-hd., 5/16" x 7", Serial Range: up-434D/22186
2шт.
9635082
NUT,5/16" - 18, Gr 5
hex., 5/16", up to 434D/22186
2шт.
181339
BOLT,Hex, 5/16" - 24 x 1", Gr 5
434D/22187 up Hex, 5/16"-24 x 1", G5, Full Thd
1шт.
