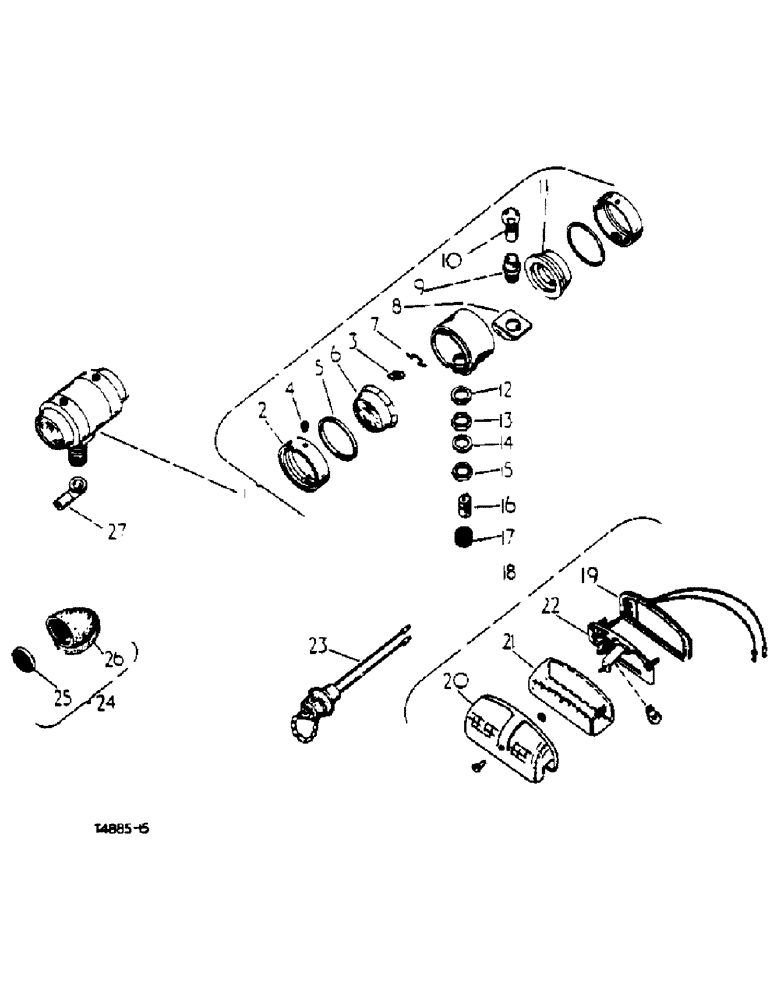

Запчасти Case IH 434 (3-07) - LAMPS, SIDE, REAR AND MISCELLANEOUS - ELECTRICAL (04) - ELECTRICAL SYSTEMS

1

3065308R91

LAMP

side and rear (12V - 6W) opt. w/3065309R91 (Yellow), Serial Range: up-434D/10699

2шт.

Including up to 434P/1361 up to 434NT/713

1шт.

1

705267R92

INTERIOR LIGHT

LAMP, side and rear (12V - 6 W) opt. w/708348R91 (Red Tractor), Serial Range: up-434D/10699

2шт.

Including up to 434P/1361 up to 434NT/713

1шт.

2

707125R1

RIM, assy.

4шт.

3

706110R91

PLATE., rim locking and SCREW 706111R1

4шт.

4

706111R1

SCREW, rim securing

4шт.

5

707126R1

GASKET, lens sealing rubber

4шт.

6

706114R1

LENS

red

2шт.

7

706112R1

WIRE, lens fixing

24шт.

8

707136R1

BRACKET, bulb holder seating

2шт.

9

SHELL, adaptor, order 3106554R91

2шт.

10

707022R91

NO LONGER SERVICED

BULB

2шт.

11

706113R1

LENS

clear

2шт.

12

WASHER, lamp fixing nut, order 3106554R91

2шт.

13

NUT, bulb holder, securing, order 3106554R91

2шт.

14

WASHER, shakeproof, order 3106554R91

2шт.

15

NUT, lamp fixing, order 3106554R91

2шт.

16

706117R91

HOLDER, interior bulb

2шт.

17

707131R1

NUT

coupling shell

2шт.

18

3107874R91

LIGHT, WARNING

LAMP, cpte., reg. number plate opt.

1шт.

18

705270R91

NO LONGER SERVICED

LAMP, cpte., reg. number plate opt.

1шт.

705757R91

LAMP

BULB, 12 V - 4 W

1шт.

705756R1

GROMMET, cable

1шт.

705758R91

NO LONGER SERVICED

SET sundry parts

1шт.

19

705754R1

GASKET, window seating

1шт.

20

705759R91

BASE, assy.

1шт.

21

705755R1

WINDOW

1шт.

22

705753R1

BODY

1шт.

23

705271R91

SOCKET/RECEPTACLE

SOCKET, power

1шт.

24

705268R91

REFLECTOR, w/HOLDER Ref. 26 and REFLECTOR 705751R1

2шт.

25

705751R1

REFLECTOR

reflex

2шт.

26

HOLDER, reflex

2шт.

27

3069383R91

ELBOW

assy., w/Cable, Serial Range: up-434D/10699

1шт.

Including up to 434P/1361 up to 434NT/713

1шт.

705545R1

COVER, terminal, Serial Range: up-434/15119

1шт.

705548R1

GROMMET

, Serial Range: up-434/15119

1шт.

706102

SHAFT

SCREW, 3/16" x 5/8", Serial Range: up-434/15119

1шт.

114603

WASHER,Ext Tooth, #10

lock, No. 10, up to 434/15119

1шт.

3106554R91

ADAPTER

BODY, adaptor assy. w/NUT 707131R1, order 3106554R91

1шт.
