Запчасти Case IH 434 (4-37) - FUEL SYSTEM, PETROL - CHASSIS (03) - FUEL SYSTEM

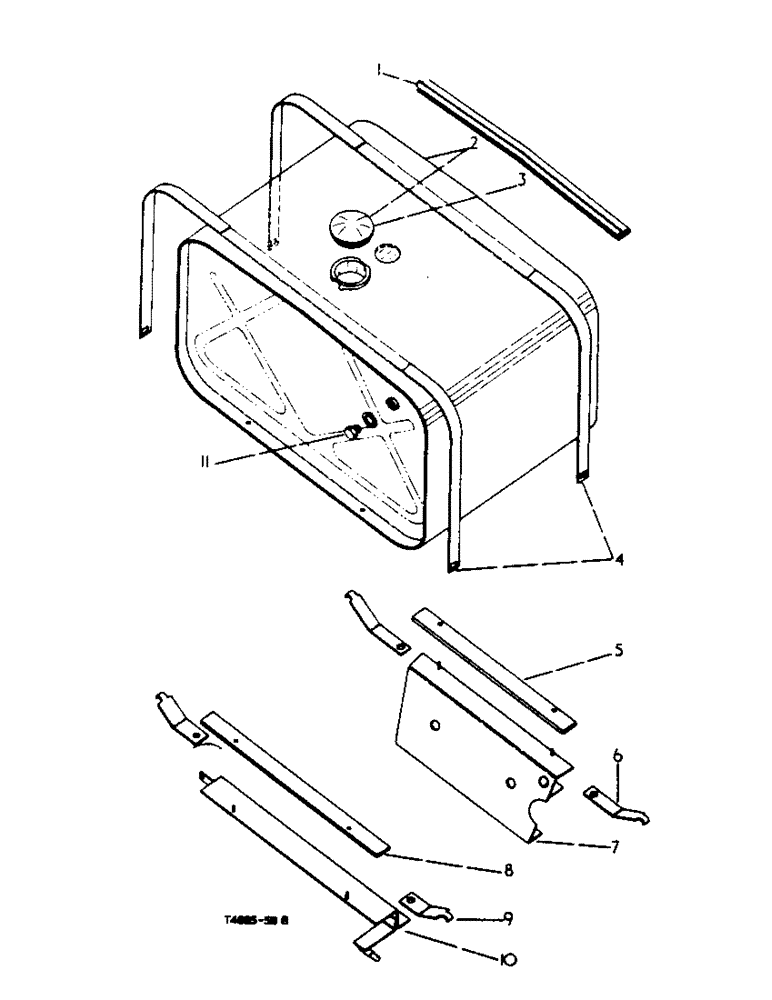

Схема запчастей Case IH 434 - (4-37) - FUEL SYSTEM, PETROL - CHASSIS (03) - FUEL SYSTEM
11
5
8
3
7
4
6
2
1
10
9

Артикул

Название

Примечание

Количество

1

3072842R1

BEADING, fuel tank 434P/1749 up

1шт.

2

3072849R91

TANK, w/CAP 3071341R91 & BEADING 3072842R1 cpte., fuel 434P/1749 up, including 434P/NT/503 up

1шт.

2

3071170R91

TANK, w/CAP 3071341R91 cpte., fuel, Serial Range: up-434P/1748

1шт.

3

3071341R91

CAP

fuel tank filler

1шт.

3041388R1

GASKET

fuel tank filler cap

1шт.

4

3070466R1

COLLAR CLAMP

STRAP, fuel tank hold down

2шт.

5

3070467R1

PAD, fuel tank rear rubber support

1шт.

6

3070458R1

PLATE, fuel tank support rear spring

2шт.

7

3070452R11

SUPPORT, fuel tank rear cpte.

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

hex-hd., 7/16" x 7/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

3070456R1

WASHER

2шт.

8

3070467R1

PAD, fuel tank front rubber support

1шт.

9

3070463R1

PLATE

fuel tank support front spring

2шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, hex-hd., 3/8" x 11/16"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

3071210R91

SUPPORT, fuel tank front cpte., 434P/1514 up

1шт.

10

3070459R11

SUPPORT, fuel tank front cpte., Serial Range: up-434P/1513

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, hex-hd., 3/8" x 11/16"

2шт.

3070456R1

WASHER

2шт.

11

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

hex-hd., 5/16" x 1/2"

1шт.

751876R1

SEALING WASHER

WASHER, 5/16" dia. (Dowty)

1шт.

Выбрано товаров: 23
