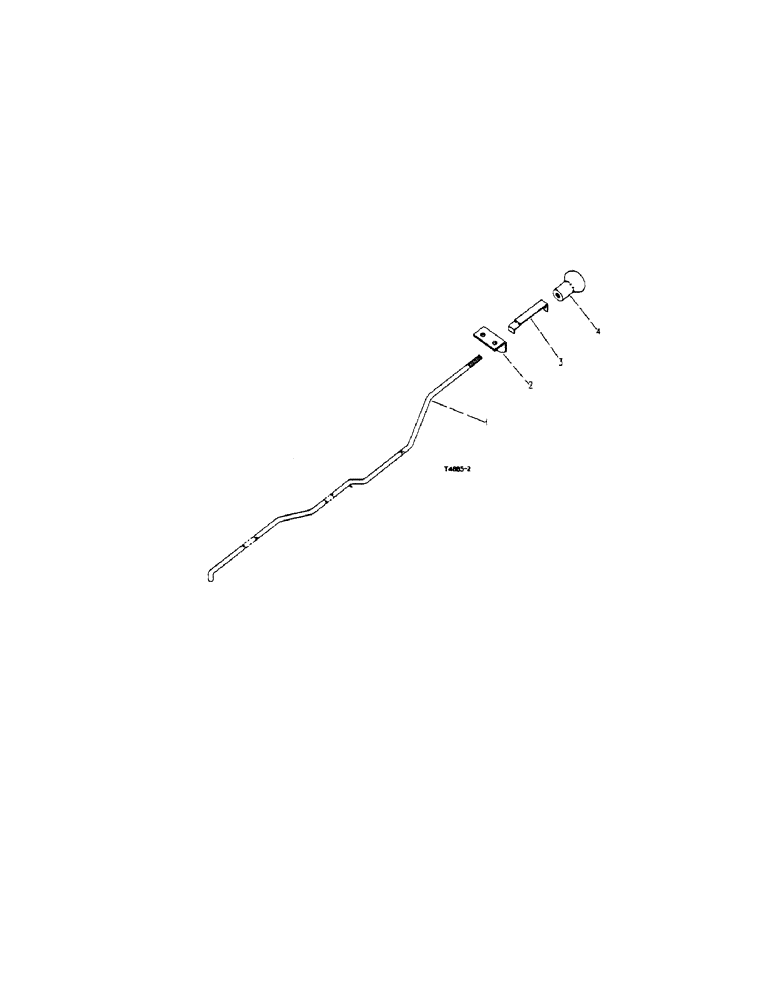

Запчасти Case IH 434 (4-11) - FUEL SHUT OFF CONTROLS - CHASSIS (03) - FUEL SYSTEM

1

3070484R1

ROD

fuel shut-off control

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, cotter 1/16" x 1/2"

1шт.

44160

PRESSURE PIPE

WASHER, 7/32" x 7/16" x 18 ga.

1шт.

2

3070483R1

BRACKET

fuel shut-off rod support

1шт.

188978

SCREW,Hex, #10 - 24 x 3/8"

No. 10-24 TPI x 3/8"

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

TPI #10-24

2шт.

131183

WASHER, No. 10 lock

2шт.

3

3066382R1

SPRING

fuel shut-off control rod return

1шт.

4

3066381R1

KNOB

stop control

1шт.

706216R1

NUT

2 BA hex.

1шт.
