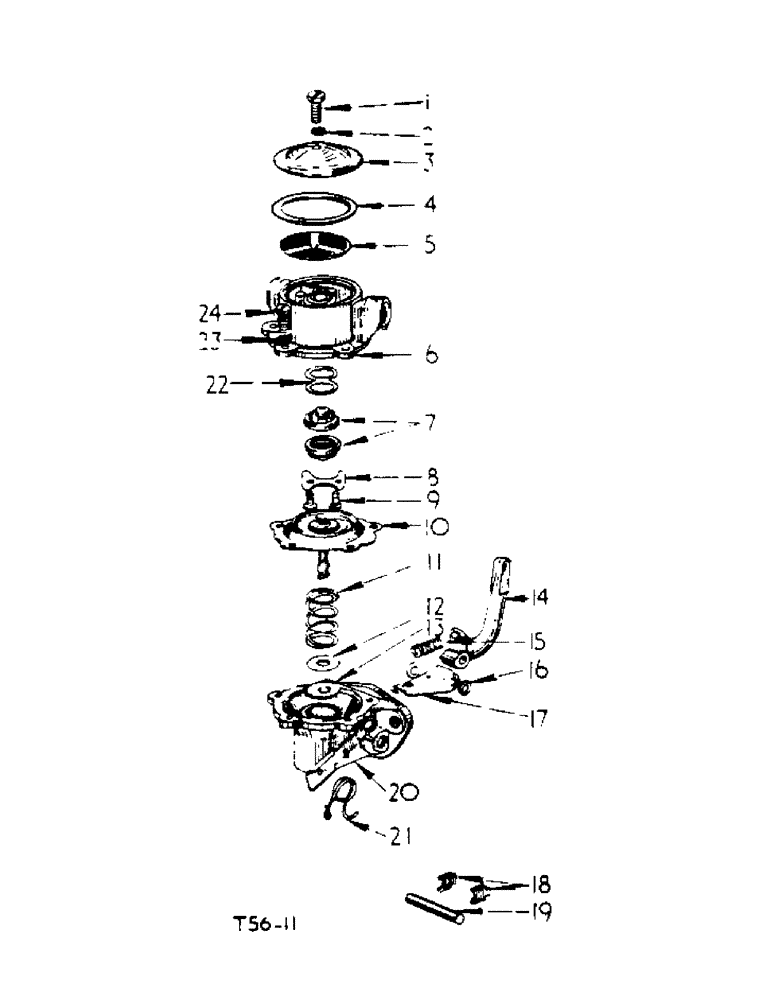

Запчасти Case IH 434 (2-13) - FUEL FEED PUMP - GAS ENGINE (03) - FUEL SYSTEM

3044197R92

PUMP

fuel feed, cpte., comprising: Ref. 1 - 24

1шт.

1

702953R1

SCREW

head

1шт.

2

3044511R1

GASKET

head screw

1шт.

Part of repair kit P/N 3046382R91

1шт.

Part of repair kit P/N 3046381R92

1шт.

3

3044512R1

COVER

filter

1шт.

4

3044518R1

GASKET

filter

1шт.

Part of repair kit P/N 3046382R91

1шт.

Part of repair kit P/N 3046381R92

1шт.

5

3044513R1

FILTER SCREEN

SCREEN, filter

1шт.

Part of repair kit P/N 3046381R92

1шт.

6

3105122R91

COVER

assy.

1шт.

7

702959R91

VALVE

assy.

2шт.

Part of repair kit P/N 3046382R91

1шт.

Part of repair kit P/N 3046381R92

1шт.

8

702960R1

RETAINER

valve

1шт.

Part of repair kit P/N 3046381R92

1шт.

9

702961R1

SCREW

valve retaining

2шт.

Part of repair kit P/N 3046381R92

1шт.

10

708953R91

DIAPHRAGM

assy.

1шт.

Part of repair kit P/N 3046382R91

1шт.

Part of repair kit P/N 3046381R92

1шт.

11

3047235R1

SPRING, diaphragm

1шт.

12

3072671R1

WASHER

oil seal, (metal)

1шт.

Part of repair kit P/N 3046382R91

1шт.

Part of repair kit P/N 3046381R92

1шт.

13

3072672R1

SEALING WASHER

OIL SEAL

1шт.

Part of repair kit P/N 3046382R91

1шт.

Part of repair kit P/N 3046381R92

1шт.

14

3044517R1

ARM

rocker

1шт.

15

708956R1

SPRING

rocker arm

1шт.

Part of repair kit P/N 3046381R92

1шт.

16

708957R1

WASHER

rocker arm pin

2шт.

Part of repair kit P/N 3046381R92

1шт.

17

708963R1

LINK

1шт.

Part of repair kit P/N 3046381R92

1шт.

18

3044516R1

RETAINER

rocker arm pin

2шт.

Part of repair kit P/N 3046381R92

1шт.

19

3044515R1

PIN

rocker arm

1шт.

Part of repair kit P/N 3046381R92

1шт.

20

3044519R91

COVER ASSY

BODY & HAND PRIMER, set

1шт.

21

3044520R1

SPRING

priming lever

1шт.

22

3065032R1

GASKET, valve

1шт.

Part of repair kit P/N 3046382R91

1шт.

Part of repair kit P/N 3046381R92

1шт.

23

NOT USED

1шт.

24

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

cover, No. 10 UNF x 3/8"

5шт.

3063872R1

BOLT

12 point ring 5/16" x 3/4"

2шт.

3046381R92

REPAIR KIT

KIT, repair, less rocker arms, Includes: Ref. 2, 4, 5, 7 - 10, 12, 13, 15 - 19 and 22

1шт.

702951R1

CLIP, pin, used in old assemblies

2шт.

702958R1

GASKET

valve, used in old assemblies

1шт.

3061658R1

GASKET

pad, used in old assemblies

1шт.

702950R1

PIN, rocker arm, used in old assemblies

1шт.

702960R1

RETAINER

valve, used in old assemblies

1шт.

702961R1

SCREW

retainer, used in old assemblies

1шт.

708958R1

WASHER

metal, oil seal, used in old assemblies

1шт.

708959R1

WASHER

fabric, oil seal, used in old assemblies

1шт.

3046382R91

PACKAGE

KIT, first aid repair (BD-4) Includes: Ref. 2, 4, 7, 10, 12, 13 and 22

1шт.

702958R1

GASKET

used in old assemblies

1шт.

3061658R1

GASKET

PAD, gasket, used in old assemblies

1шт.

3044458R1

PRIMER PAINT

PRIMER PARTS, set

1шт.

3043370R1

GASKET

feed pump

1шт.

3061658R1

GASKET

feed pump

1шт.
