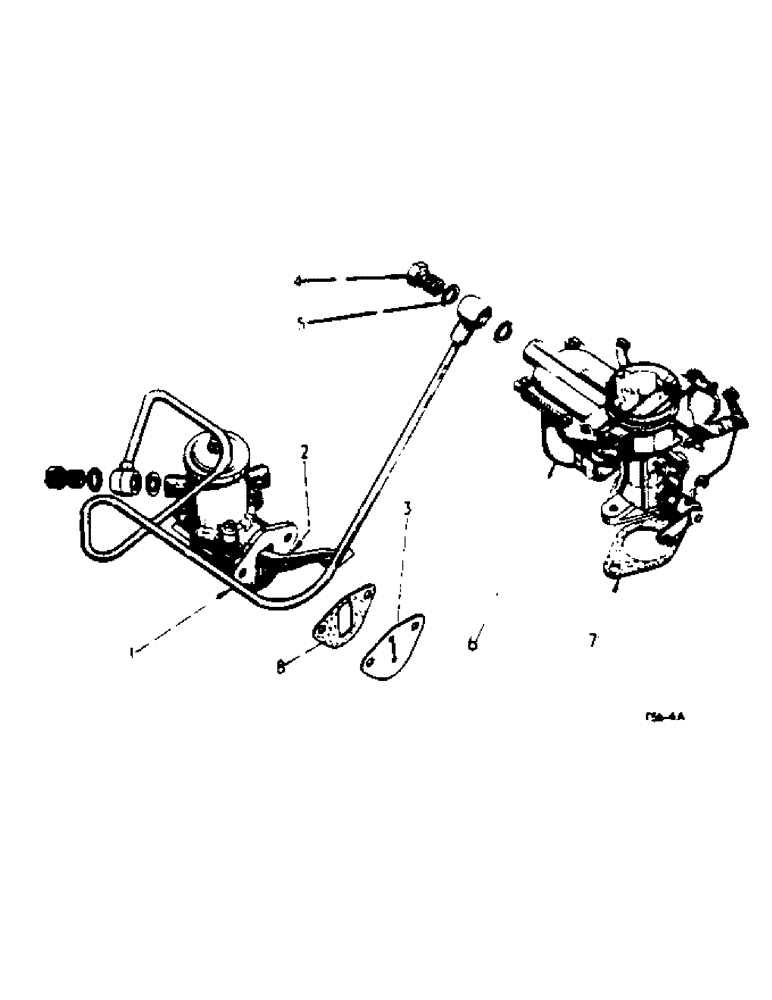

Запчасти Case IH 434 (2-11) - CARBURETOR, FUEL PUMP AND PIPES - GAS ENGINE (03) - FUEL SYSTEM

1

3044198R94

PIPE

cpte., fuel, Serial Range: pump-carburetor

1шт.

2

3044197R92

PUMP

assy., fuel, see Figure 2-13

1шт.

3063872R1

BOLT

soc-hd., 5/16" x 3/4" (12 point Ring)

2шт.

3

3043370R1

GASKET

fuel pump

1шт.

4

708296R1

CONNECTOR, ELEC

BOLT, banjo opt.

2шт.

3070324R1

BOLT,1/2" - 20 x 1.067"

banjo opt.

2шт.

5

708297R1

GASKET

WASHER, banjo (inlet and outlet)

4шт.

6

3063945R91

CARBURETOR

cpte., see Figure 2-12

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16"-24 UNF

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

3047295R91

GASKET

carburetor

1шт.

8

3061658R1

GASKET

fuel pump

1шт.
