Запчасти Case IH 434 (2-10) - GOVERNOR UNIT - GAS ENGINE (03) - FUEL SYSTEM

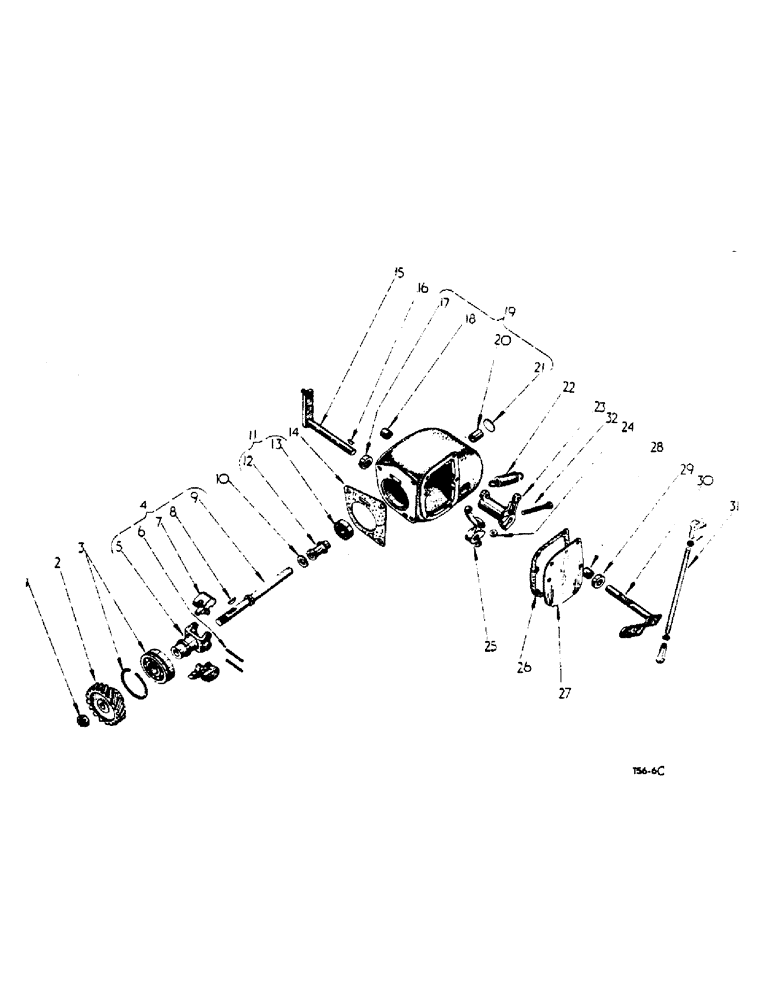

Схема запчастей Case IH 434 - (2-10) - GOVERNOR UNIT - GAS ENGINE (03) - FUEL SYSTEM
6
12
19
20
23
27
17
18
9
16
26
11
13
32
2
1
22
28
3
4
29
21
31
14
25
7
30
10
8
5
15
24

Артикул

Название

Примечание

Количество

1

451074

NUT, jam, hex., 9/16" UNF

1шт.

2

3043832R1

GEAR, governor (33 T)

1шт.

3

703612R91

NO LONGER SERVICED

BEARING, governor shaft (S.K.F.) optional

1шт.

ST289

BEARING, BALL,25mm ID x 62mm OD x 17mm W

BEARING, governor shaft (I.H.C.) optional

1шт.

45774D

BALL BEARING

BEARING, governor shaft (N.D.) optional

1шт.

700540R91

BALL BEARING

BEARING, governor shaft (Fischer) optional

1шт.

700541R91

NO LONGER SERVICED

BEARING, governor shaft (R & M) optional

1шт.

3040120R91

NO LONGER SERVICED

BEARING governor shaft (Hoffman) optional

1шт.

4

3043838R91

WEIGHT

CARRIER, and WEIGHT assy., governor, comprising

1шт.

360535R1

CARRIER

1шт.

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

45656DA

PIN,6.35mm OD x 38.1mm L

2шт.

3043836R1

SHAFT

1шт.

3043837R1

WEIGHT

2шт.

5

360535R1

CARRIER governor weight optional

1шт.

5

48256DA

CARRIER

cpte., governor weight optional

1шт.

6

45656DA

PIN,6.35mm OD x 38.1mm L

governor weight

2шт.

7

3043837R1

WEIGHT, governor

2шт.

8

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

9

3043836R1

SHAFT, governor

1шт.

10

3043835R1

WASHER, governor sleeve thrust

1шт.

11

351910R91

BEARING ASSY

SLEEVE w/BEARING ST506 and SLEEVE 48250D assy., governor and bearing thrust

1шт.

12

48250D

SLEEVE

governor

1шт.

13

ST506

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

BEARING governor thrust (I.H.C.) optional

1шт.

13

700310R91

BEARING governor thrust (R & M) optional

1шт.

13

3040121R91

BEARING governor thrust (S.K.F.) optional

1шт.

13

3040122R91

BEARING governor thrust (Hoffman) optional

1шт.

14

3044212R1

GASKET

governor housing

1шт.

15

3043840R91

LEVER w/PIN 706204R1 cpte., governor speed change

1шт.

706204R1

PIN, governor speed change lever-ball

1шт.

16

106749

KEY

Woodruff, No. 3, 1/8" x 1/2"

1шт.

17

45667D

SEAL

OIL SEAL, governor housing optional

1шт.

17

357968R91

SEAL

OIL SEAL governor housing optional

1шт.

18

3043848R91

BEARING rockshaft R.H.

1шт.

19

3043849R11

HOUSING cpte., governor, comprising

1шт.

45775D

NEEDLE BEARING,Needle, 12.74mm ID x 17.48mm OD x 12.7mm W

1шт.

3043848R91

BEARING

1шт.

48227D

BUSHING

BUSH

1шт.

41-3014

PLUG,Exp, 7/8"

1шт.

45667D

SEAL

OIL SEAL

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

20

48227D

BUSHING

BUSH, governor housing

1шт.

21

172540

PULLEY

expansion, 7/8" dia.

1шт.

22

3045514R1

SPRING governor

1шт.

23

3043847R11

LEVER w/two PINS 48254D cpte. governor rockshaft

1шт.

3043842R1

BOLT soc-hd., 3/16"-24 x 7/8"

1шт.

48254D

PIN thrust, governor rockshaft lever

2шт.

115546

WASHER,Int Tooth, #12

LOCK, Int, Tooth, #12

1шт.

24

3043843R1

KEY, governor rockshaft lever

1шт.

25

3043841R1

LEVER governor spring

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex-hd., 1/4" x 7/8"

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

3044211R1

GASKET

governor housing cover

1шт.

27

3043833R1

COVER, governor housing

1шт.

10958D

BOLT, governor housing cover

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex-hd., 5/8" x 3/4"

4шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

6шт.

28

45775D

NEEDLE BEARING,Needle, 12.74mm ID x 17.48mm OD x 12.7mm W

rockshaft, L.H.

1шт.

29

45667D

SEAL

OIL SEAL governor housing optional

1шт.

29

357968R91

SEAL

OIL SEAL, governor housing optional

1шт.

30

3043846R91

LEVER

w/PIN 706204R1 cpte., carburetor control

1шт.

706204R1

PIN carburetor control lever ball

1шт.

31

3070914R91

ROD

cpte., governor to carburetor control

1шт.

3070915R1

ROD

carburetor control

1шт.

3068537R1

TRUNNION

END, carburetor control rod

2шт.

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

32

3048289R1

BOLT governor spring lever - long

1шт.

109084

NUT,1/4"-20, G5

1шт.

Выбрано товаров: 70
