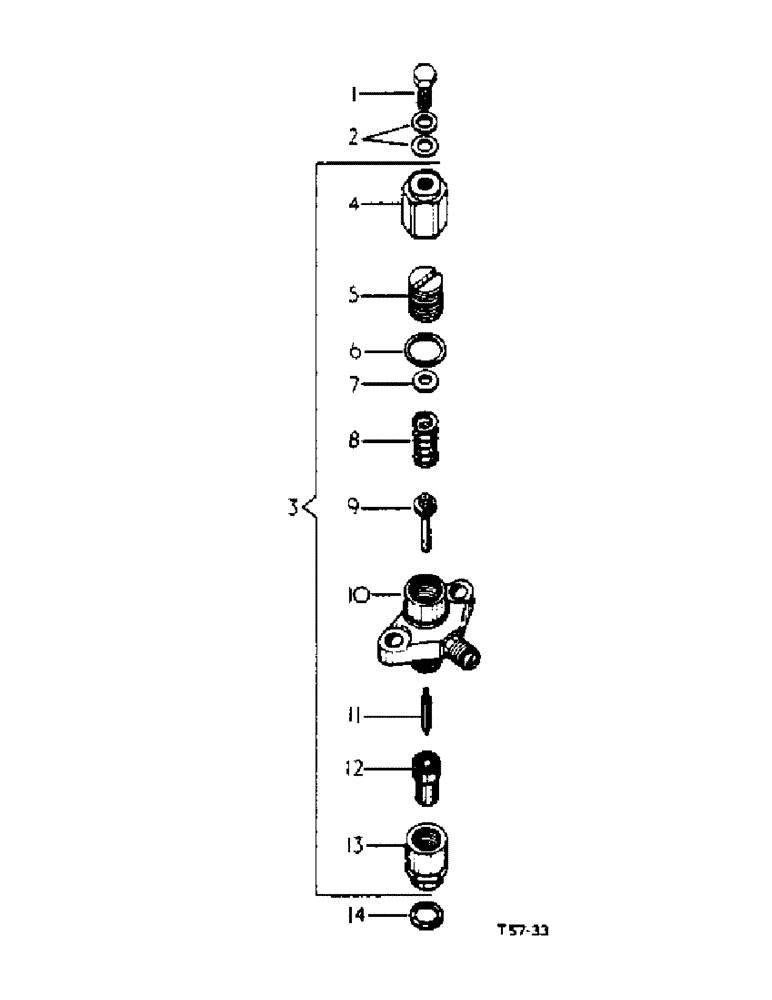

Запчасти Case IH 434 (1-20) - INJECTION NOZZLE AND HOLDER - DIESEL ENGINE (03) - FUEL SYSTEM

1

705498R1

STUD,M8 x 14mm

banjo

4шт.

2

703519R1

WASHER

banjo stud

8шт.

3

3040870R94

NOZZLE CAP

NOZZLE & HOLDER, cpte., injection (C.A.V. 5490001) each comprising: Ref. 4 - 13

4шт.

4

3105349R1

NUT

nozzle holder cap

1шт.

Part of injection nozzle holder P/N 3072556R92

1шт.

5

895579H1

NUT, spring cap

1шт.

Part of injection nozzle holder P/N 3072556R92

1шт.

6

895581H1

WASHER

1шт.

Part of injection nozzle holder P/N 3072556R92

1шт.

7

895578H1

WASHER

shim

1шт.

Part of injection nozzle holder P/N 3072556R92

1шт.

8

3066625R1

SPRING

1шт.

Part of injection nozzle holder P/N 3072556R92

1шт.

9

3105348R91

SPINDLE

assy

1шт.

Part of injection nozzle holder P/N 3072556R92

1шт.

10

3105347R91

BODY

1шт.

Part of injection nozzle holder P/N 3072556R92

1шт.

11

3040871R91

NOZZLE CAP

NOZZLE, cpte., injection

1шт.

Pressure setting must be quoted when ordering nozzle.

1шт.

12

3105346R1

NUT

nozzle cap

1шт.

Part of injection nozzle holder P/N 3072556R92

1шт.

13

3072556R92

HOLDER, INJECTOR NOZ

HOLDER, injection nozzle cpte., Includes: Refs. 4 - 10 and 12

1шт.

14

706291R1

WASHER

4шт.
