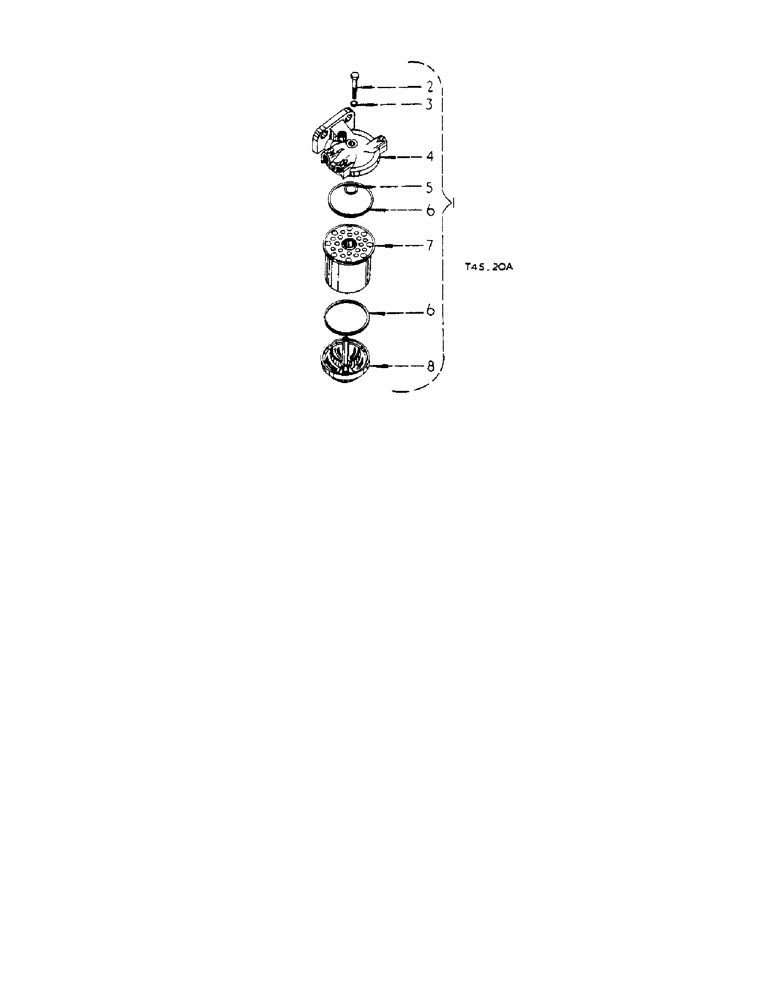

Запчасти Case IH 434 (1-13) - FUEL, FILTER ASSEMBLY - DIESEL ENGINE (03) - FUEL SYSTEM

1

3043645R91

FILTER CARTRIDGE

FILTER, fuel, cpte., Includes: Ref. 2-8

1шт.

2

3044503R1

BOLT,1/4" - 20

center

1шт.

3

3044504R1

WASHER

center bolt

1шт.

4

3044502R1

HEAD

filter

1шт.

5

3044505R1

SEAL

RING, element seal

1шт.

6

3105001R1

SEAL

head and base sealing

2шт.

7

3044506R91

ELEMENT

w/RING 3044505R1 and two WASHER 3105001R1

1шт.

8

3048796R91

BASE

and Stud, filter, assy.

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
