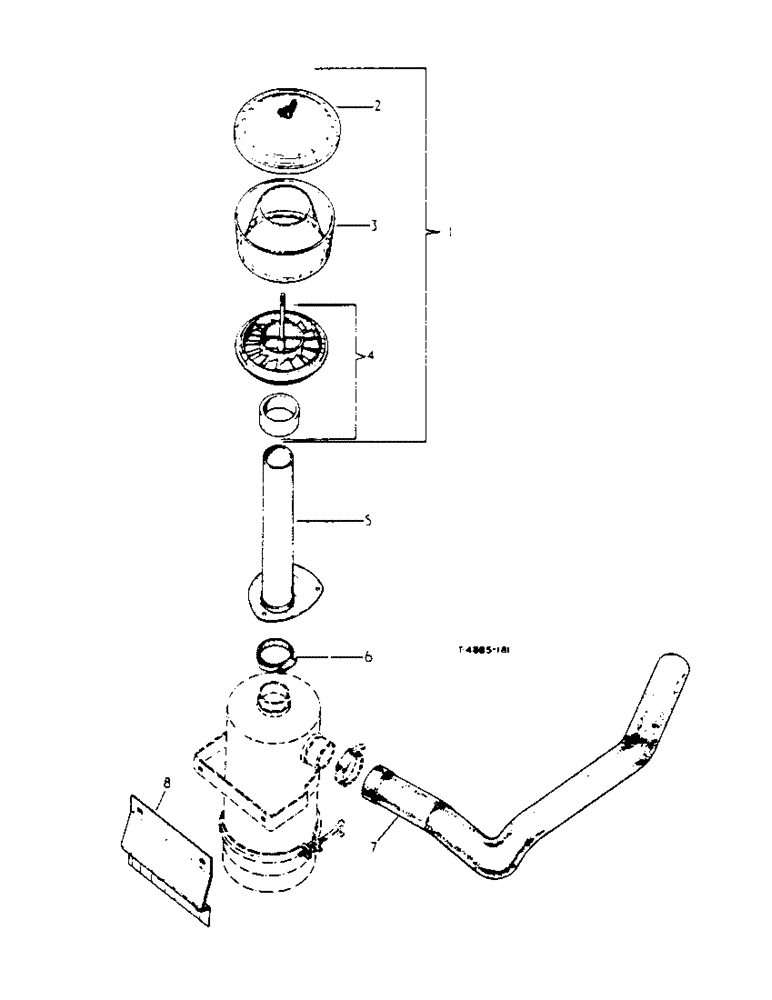

Запчасти Case IH 434 (8-19) - AIR PRE-CLEANER ATTACHMENTS, EXPORT - NARROW TREAD (02) - ENGINE

ATTACHMENT air pre-cleaner (Export Only)(Factory Application)

1шт.

3110872R91

ATTACHMENT air pre-cleaner (Export Only)

1шт.

1

3110873R91

PRE-CLEANER assy., air, comprising: Ref. 2 -4

1шт.

2

3110930R91

COVER

assy.

1шт.

3

3110931R1

BODY, pre-cleaner (Plastic)

1шт.

4

3110932R91

SLEEVE

assy.

1шт.

5

3110865R1

PIPE, cpte., air cleaner extension

1шт.

180018

CONNECTING LINK

hex-hd., 1/4" x 5/8"

1шт.

326-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 8

hex-hd., 1/4" x 1-1/8"

2шт.

3072684R1

WASHER

2шт.

6

894056H1

CLIP

worm drive

1шт.

7

3110876R1

HOSE, air cleaner connection

1шт.

8

3110875R1

BRACKET, air cleaner

1шт.

179814

SPACER

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16" x 5/8"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3110877R91

FRAME assy., radiator grille, for factory application air pre-cleaner attachment (export only), comprising:

1шт.

3071315R1

STRIP

cushion

1шт.

3110878R91

FRAME cpte., radiator grille, comprising:

1шт.

3070326R1

FRAME, radiator grille

1шт.

3044095R1

RIVET, pop

2шт.

3044094R1

SPRING

1шт.

3064777R1

WASHER, plain

4шт.

3110881R91

SHEET assy., hood, for factory application air pre-cleaner attachment (export only), comprising:

1шт.

3070342R2

STRIP

BUFFER, lid retainer

6шт.

3070513R2

STRIP, battery cover stop

1шт.

752345R1

NUT weld, for 3110872R91

2шт.
