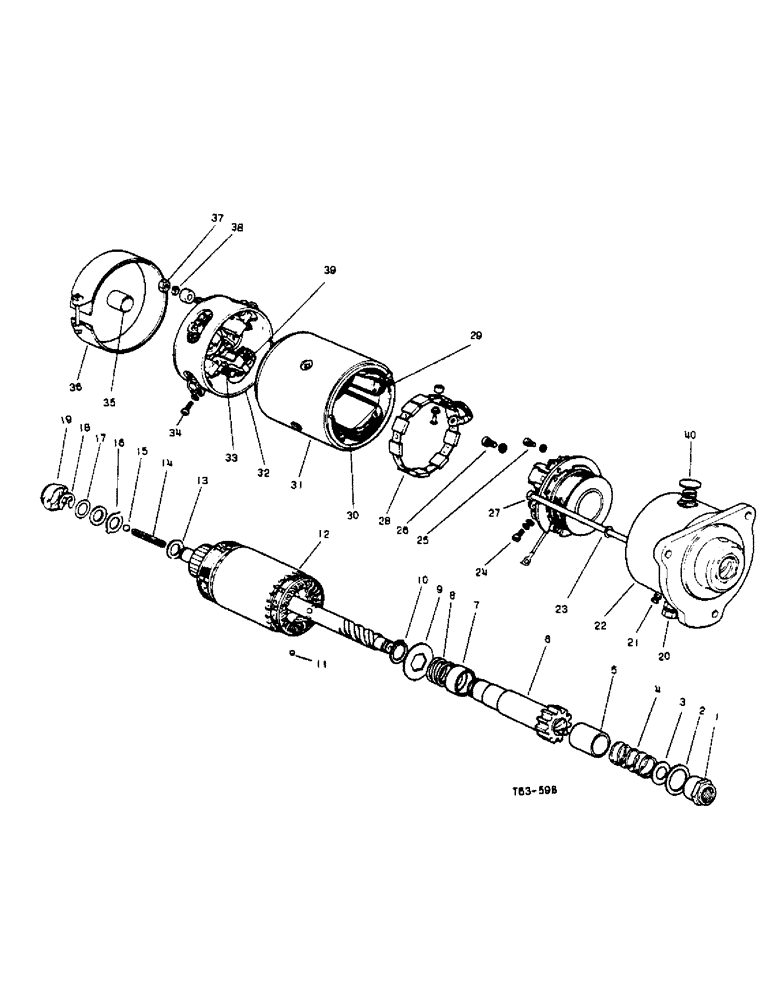

Запчасти Case IH 434 (6-072) - COLD STARTING ATTACHMENT, STARTER MOTOR - ATTACHMENTS (02) - ENGINE

3066553R91

STARTER MOTOR

STARTER, assy., motor

1шт.

1

3067832R1

NUT

pinion stop

1шт.

2

3070428R1

THRUST WASHER

thrust

1шт.

3

3070427R1

WASHER

shim

1шт.

4

3067841R1

SPRING

pinion

1шт.

5

3067830R1

COVER

spring

1шт.

6

3067829R1

GEAR

PINION

1шт.

7

3045163R1

COLLAR

locking

1шт.

8

3025137R1

SPRING, locking

1шт.

9

3070425R1

COLLAR

trip

1шт.

10

3070424R1

RETAINER

CIRCLIP, trip collar

1шт.

11

3070423R1

BALL

steel

4шт.

12

3067828R91

ARMATURE

1шт.

13

3045168R1

WASHER

SHIM, .008"

1шт.

3045206R1

WASHER

SHIM, .012"

1шт.

14

3045201R1

SPRING

shaft

1шт.

15

3045202R1

BALL

steel

1шт.

16

3045203R1

WASHER

thrust tab

1шт.

17

3045204R1

WASHER

thrust, .036"

1шт.

18

3074977R1

RETAINER

CLIP, retaining (screwed end cap)

1шт.

Part of commutator end shield kit P/N 3074973R91

1шт.

18

3045205R1

CLIP

retaining (Bayonet cap)

1шт.

19

3074975R1

CAP, end assy., (screwed end cap)

1шт.

Part of commutator end shield kit P/N 3074973R91

1шт.

19

3067827R91

CAP

end assy., (Bayonet cap)

1шт.

3074976R1

PAD (Screwed End Cap)

1шт.

Part of commutator end shield kit P/N 3074973R91

1шт.

20

3025134R91

TERMINAL, large D.E.

1шт.

3045183R1

BUSHING

BUSH, insulating

1шт.

3025136R1

INSULATOR, internal

1шт.

3070421R1

RING

sealing

1шт.

3065980R1

SCREW

connecting

1шт.

3045187R1

NUT

1шт.

3065972R1

WASHER

insulating

2шт.

3065971R1

WASHER

plain

1шт.

706423R1

WASHER

spring

1шт.

3070422R1

WASHER

spring

1шт.

21

3065973R1

TERMINAL CONNECTOR

TERMINAL, small

1шт.

3065974R1

BUSHING

BUSH, insulating

1шт.

3070418R1

INSULATOR

internal

1шт.

3045193R1

NUT

1шт.

706891R1

SPRING WASHER

spring

1шт.

3045173R1

WASHER

plain

1шт.

3025135R1

SUPPORT

1шт.

22

3067826R91

SHIELD

assy., D.E.

1шт.

3070431R1

PLUG

core oiler

1шт.

3070432R1

SEAL

dust

1шт.

3065986R1

PAD

felt

1шт.

3045214R1

SPRING

oiler

1шт.

23

3045169R1

BOLT

through

2шт.

3045170R1

SPRING WASHER

spring

2шт.

24

3064984R1

SCREW

fixed contact

2шт.

3045173R1

WASHER

plain

2шт.

706891R1

SPRING WASHER

spring

2шт.

25

3064984R1

SCREW

1шт.

3070415R1

WASHER

plain

1шт.

706891R1

SPRING WASHER

spring

1шт.

26

3070413R1

SCREW

fixing

1шт.

706897R1

WASHER, spring

1шт.

27

3070412R91

SWITCH

SOLENOID, assy.

1шт.

28

3070408R1

RESISTOR

1шт.

3064973R1

BUSHING

BUSH

1шт.

3070411R1

RIVET

1шт.

3047225R1

SPACER

1шт.

29

3067824R91

COIL

S, field set

1шт.

30

3064979R1

INSULATOR

small

1шт.

30

3067825R1

INSULATOR

large

1шт.

31

706425R1

POST

SCREW, pole

4шт.

32

3067823R92

SHIELD

assy., C.E.

1шт.

On orders for 3067823R91 furnish KIT 3074973R91

1шт.

Part of commutator end shield kit P/N 3074973R91

1шт.

33

3045208R1

SPRING

brush

4шт.

34

706428R1

SCREW, brush

4шт.

706891R1

SPRING WASHER

spring

4шт.

35

3105006R1

BEARING

1шт.

35

3065977R1

BEARING

1шт.

On orders for 3065977R1 furnish 3105005R1

1шт.

36

3045171R91

COVER

assy., band

1шт.

3070429R1

SCREW

cover

1шт.

3070430R1

NUT, screw cover

1шт.

37

3045187R1

NUT

terminal (As req'd)

1шт.

38

703423R1

WASHER, terminal spring

1шт.

39

3068411R91

SET

BRUSH, set

1шт.

40

3070416R1

PLUG

core

2шт.

3074973R91

PACKAGE

KIT, commutator end shield, comprising

1шт.

CAP 3074975R1

1шт.

CIRCLIP 3074977R1

1шт.

PAD 3074976R1

1шт.

SHIELD 3067823R91

1шт.
