(6-071) - UPSWEPT EXHAUST ATTACHMENT, PETROL - ATTACHMENTS

Запчасти Case IH 434 (6-071) - UPSWEPT EXHAUST ATTACHMENT, PETROL - ATTACHMENTS (02) - ENGINE

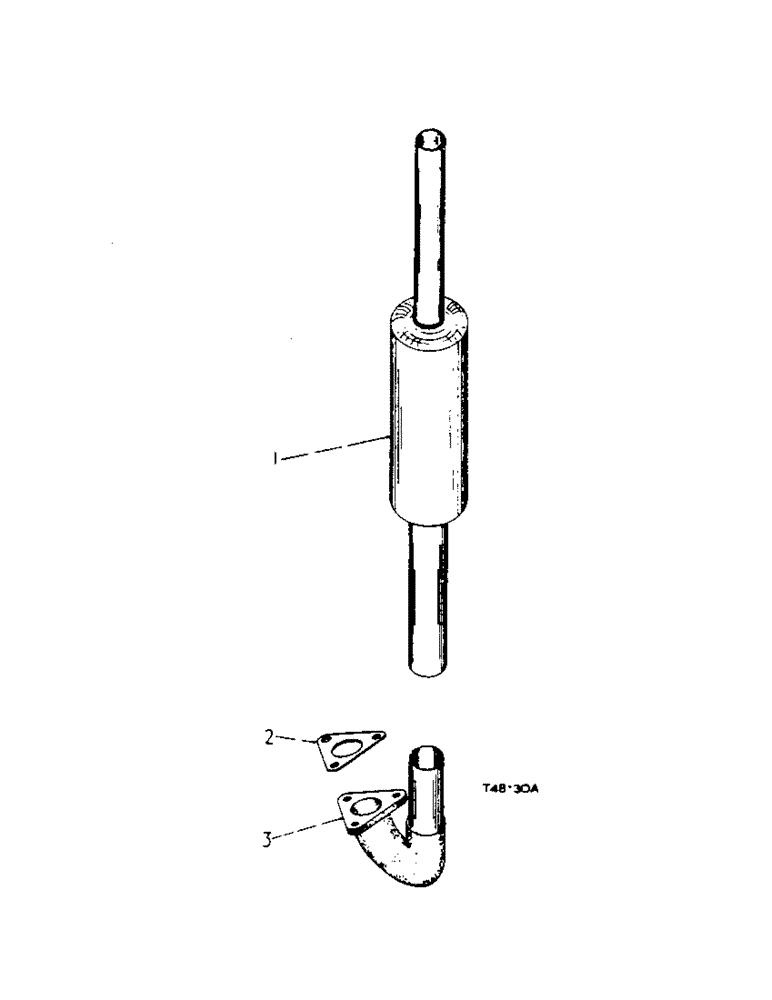

Схема запчастей Case IH 434 - (6-071) - UPSWEPT EXHAUST ATTACHMENT, PETROL - ATTACHMENTS (02) - ENGINE
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3060307R91

ATTACHMENT

upswept exhaust

1шт.

1

3046360R91

MUFFLER

SILENCER, cpte., exhaust, optional

1шт.

1

3046361R91

MUFFLER

SILENCER, cpte., exhaust, optional

1шт.

1

3046362R92

MUFFLER

SILENCER, cpte., exhaust, optional

1шт.

2

3060566R1

GASKET

exhaust flange

1шт.

3

3060565R1

PIPE ASSY.

PIPE, cpte., exhaust, Serial Range: manifold-silencer

1шт.

179842

SPACER

BOLT, hex-hd., 3/8" x 1-3/8"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.
