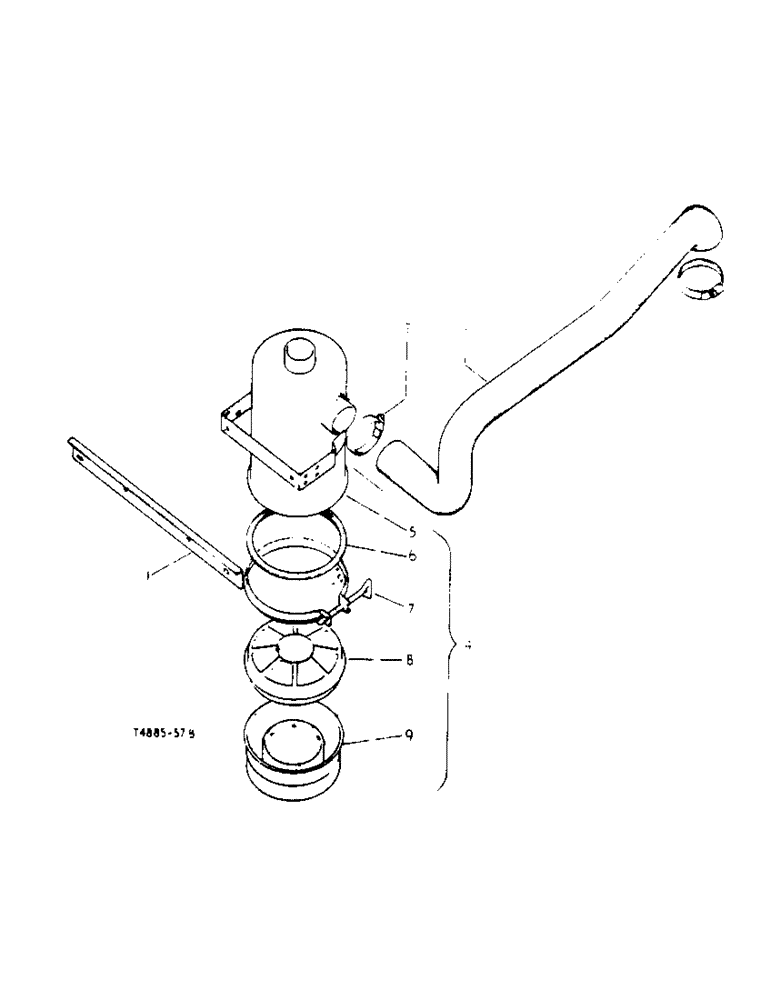

Запчасти Case IH 434 (4-28) - AIR CLEANER ASSEMBLY AND CONNECTIONS, PETROL - CHASSIS (02) - ENGINE

1

3070385R1

BRACE, air cleaner support

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

3025291R91

CLIP

HOSE, clip worm drive

2шт.

3

3071166R1

PIPE, air cleaner - inlet manifold connections

1шт.

4

3071527R91

FILTER

CLEANER, assy., oil bath, air 434/997 up, Petrol, comprising: Ref. 5 - 9

1шт.

5

3071528R91

HOUSING

SHELL, assy., and element

1шт.

6

3071531R1

RING

SEAL, ring

1шт.

7

3071530R91

CLAMP, assy.

1шт.

8

3071529R91

ELEMENT

assy. (lower)

1шт.

9

3071532R91

CONTAINER

oil

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
