(4-11[1]) - AIR CLEANER, UP TO 434/7650 DIESEL AND 996 PETROL - CHASSIS

Запчасти Case IH 434 (4-11[1]) - AIR CLEANER, UP TO 434/7650 DIESEL AND 996 PETROL - CHASSIS (02) - ENGINE

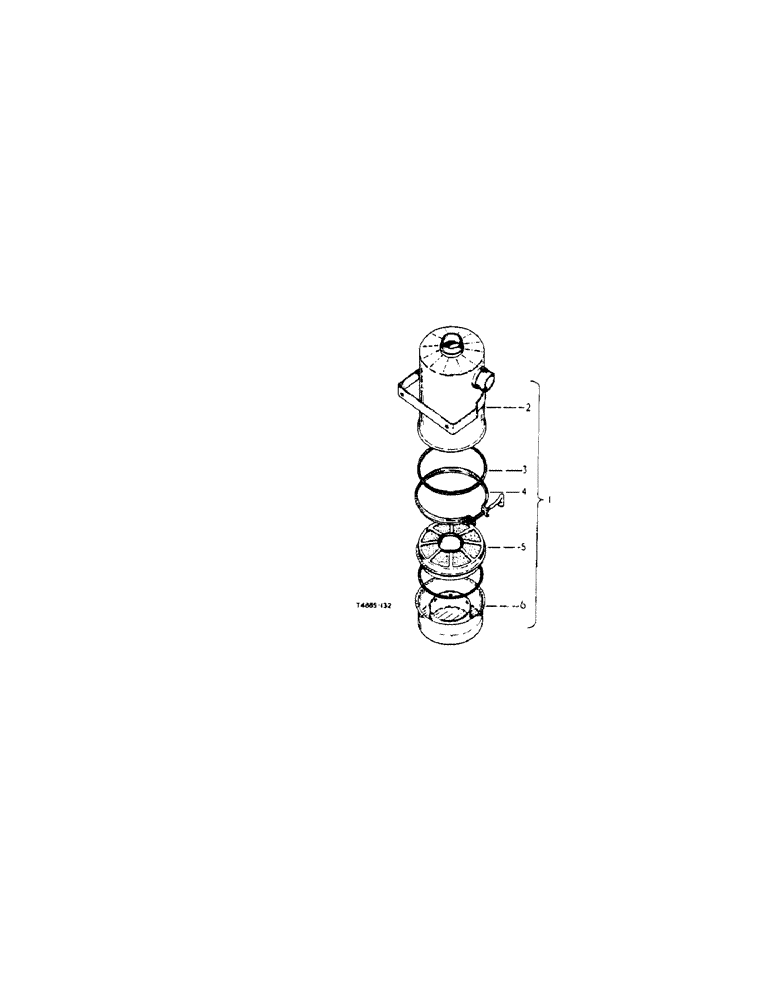

Схема запчастей Case IH 434 - (4-11[1]) - AIR CLEANER, UP TO 434/7650 DIESEL AND 996 PETROL - CHASSIS (02) - ENGINE
4
2
3
5
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3070354R91

CLEANER, assy., oil bath, air, comprising: Ref. 2 - 6

1шт.

2

3071451R91

SHELL

assy., (and element)

1шт.

3

3071454R1

SEAL, ring

2шт.

4

3071453R91

CLAMP

assy.

1шт.

5

3071452R91

ELEMENT, assy., (lower)

1шт.

6

3071455R91

CONTAINER

oil

1шт.
